18

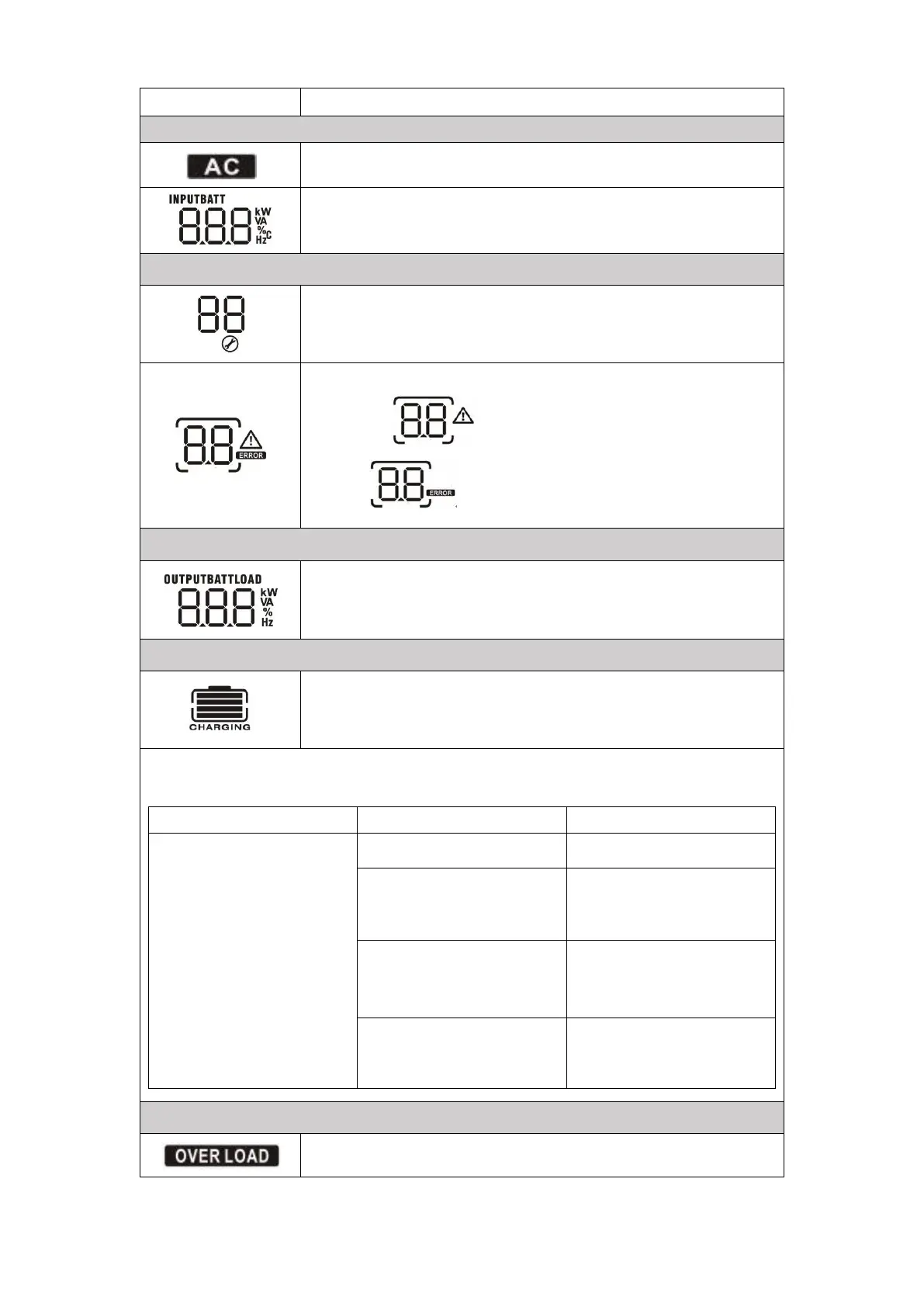

Icon
Function/Description
Input source information
Indicates the AC input
Indicates input voltage, input frequency, PV voltage, battery
voltage and temperature
Configuration program and fault information
Indicates the settings programs
Indicates the warning and fault codes
Warning: flashing with warning code
Fault: flashing with fault code
Output information
Indicate output voltage, output frequency, load percent, load
in VA, load in Watt and discharging current.
Battery information
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-
100% in battery mode and charging status in line mode.
In AC mode, it will present battery charging status.
Status
Battery capacity
LCD displays
Constant Current mode
0 – 24 %
4 bars will flash in turns
25 – 49 %
Bottom bar will be on
and the other three bars
will flash in turns
50 – 74 %
Bottom two bars will be
on and the other two
bars will flash in turns
75 – 100 %
Bottom three bars will
be on and the top bar
will flash
Load information
Indicates overload
