Associated Electrics DR10 - Electronics and Motor Installation

18

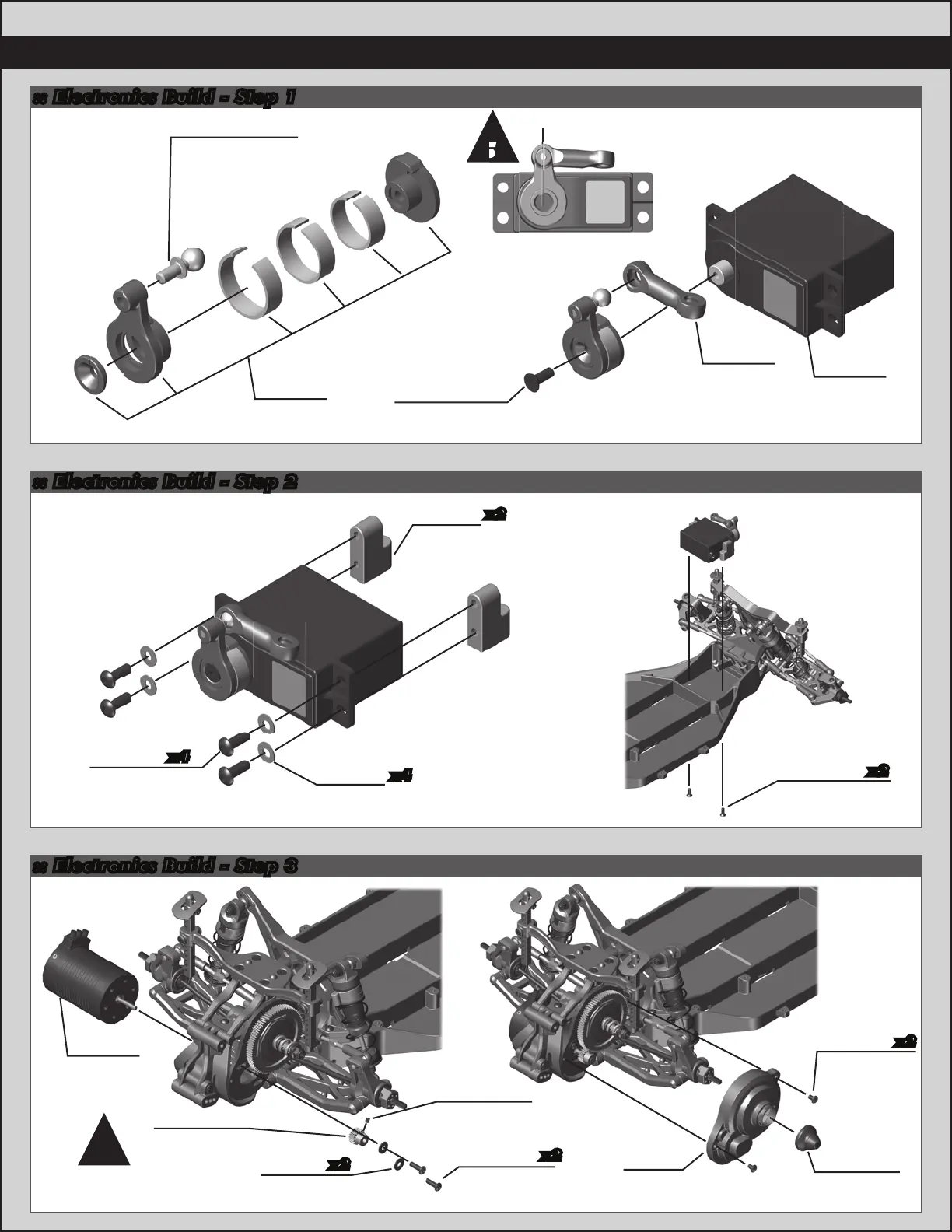

:: Electronics Build - Step 2
:: Electronics Build - Step 3
:: Electronics Build - Step 1
91469
Steering
Link
Servo
71047
Servo
Saver
25201
M3 x 8mm
FHCS
91047
Heavy-duty
Ballstud, 6mm
Align the servo horn 90 degrees.
Adjust steering trim once vehicle is
complete.
!
!
7337
Gold
Washer
91391
Servo
Mount
31532
M3 x 8mm
BHCS
x4
x2
x4
x2
Motor
25201
M3 x 8mm
FHCS
See page 23 for
gear mesh setting
instructions!
!
71023
Belt Cover
Cap
91431
Gear
Cover
31530
M3 x 5mm
BHCS
x2
31532
M3 x 8mm
BHCS
25225
M3 x 3mm
Set Screw
x2
x2
7164
3 x 6mm
Washer
1336
Pinion Gear,
18T, 48P
