Associated Electrics PRO4 SC10 - Electronics and Tire Mounting; Step 37: Servo Link Turnbuckle; Step 38: Receiver and ESC Installation; Step 39: Tire Mounting

18

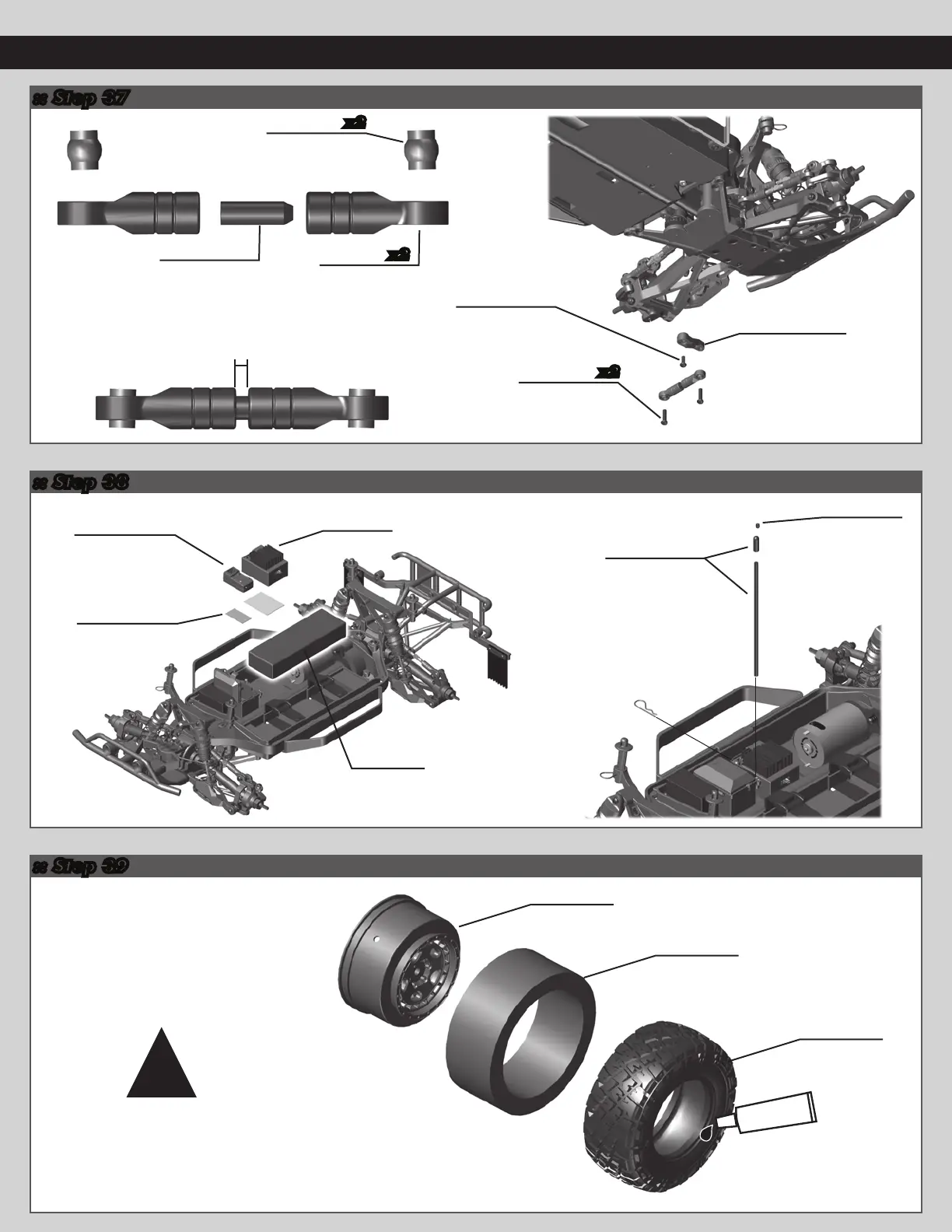

:: Step 37
:: Step 38
:: Step 39
0.80mm
Servo Link Turnbuckle
x2
x2
25824
Ball Cup
25824
4x12mm
Set Screw
25827
Pivot Ball,
Short
Carefully apply ca glue
(tire adhesive) to the tire
bead on the side. Do one
side at a time, allowing it
to dry before gluing the
other side!
CA glue not included!
!
#1597
ca glue
Build 4
25860
Pro SC10
Tire
25860
Pro SC10
Insert
25860
Pro SC10
Wheel
x2
89202
M3x12mm
BHCS
31532
M3x8mm
BHCS
25805
Servo Arm,
25T
Battery
ESC
Receiver
6727
Servo Tape
6338
Antenna
Tube,
12”
25225
M3x3mm
Set Screw
