Associated Electrics RC8B3.1 - Page 18

18

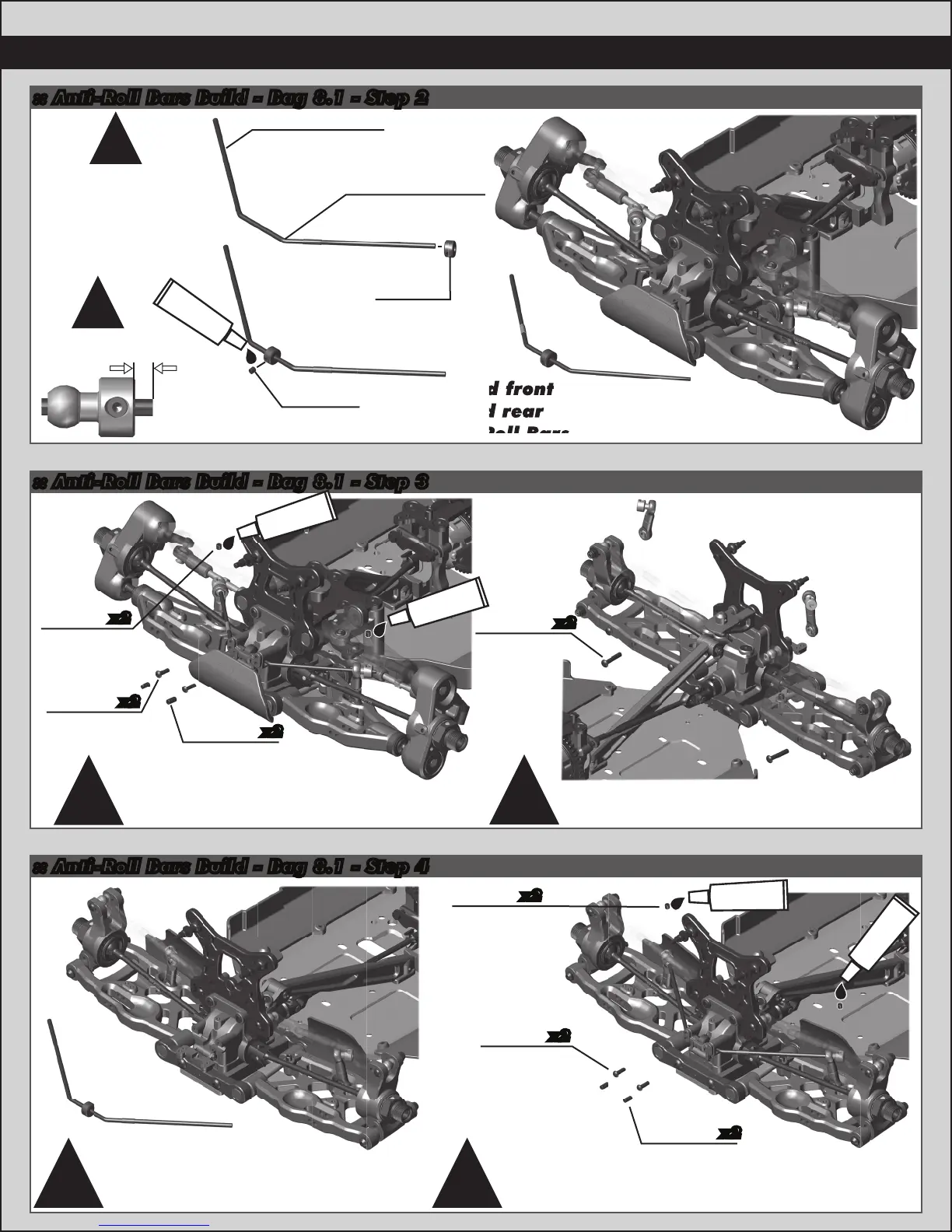

:: Anti-Roll Bars Build - Bag 8.1 - Step 4
:: Anti-Roll Bars Build - Bag 8.1 - Step 3
:: Anti-Roll Bars Build - Bag 8.1 - Step 2
Center the Anti-Roll
Bar Collet on the
Anti-Roll Bar, then
tighten the (#25225)
3x3mm set screw.
Front Anti-Roll
Bar Gap: 2.3mm
!
!
#1596
thread lock
25225
3x3mm
Set Screw
81150
Anti-Roll
Bar
Collet
81130
(Front) Anti-Roll
Bar, Black 2.3mm
81140
(Rear) Anti-Roll
Bar, Gray 2.7mm
Build front
and rear
Anti-Roll Bars
Build front
and rear
Anti-Roll Bars
25225
3x3mm
Set Screw
31521
2.5x8mm
BHCS
x2
x2
81257
3x6mm
Set Screw
x2
Tighten #81257 set screws just enough to
still allow the anti-roll bar to move freely.
!!
#1596
thread lock
#1596
thread lock
Rear Hub Turnbuckles
removed for view clarity.
31521
2.5x8mm
BHCS
25225
3x3mm
Set Screw
x2
x2
81257
3x6mm
Set Screw
x2
89203
3x16mm
BHCS
x2
Tighten #81257 set screws
just enough to still allow the
anti-roll bar to move freely.
Rear Hub Turnbuckles
removed for view clarity.
!
!
#1596
thread lock
#1596
thread lock
