Associated Electrics RC8B3.1 - Page 26

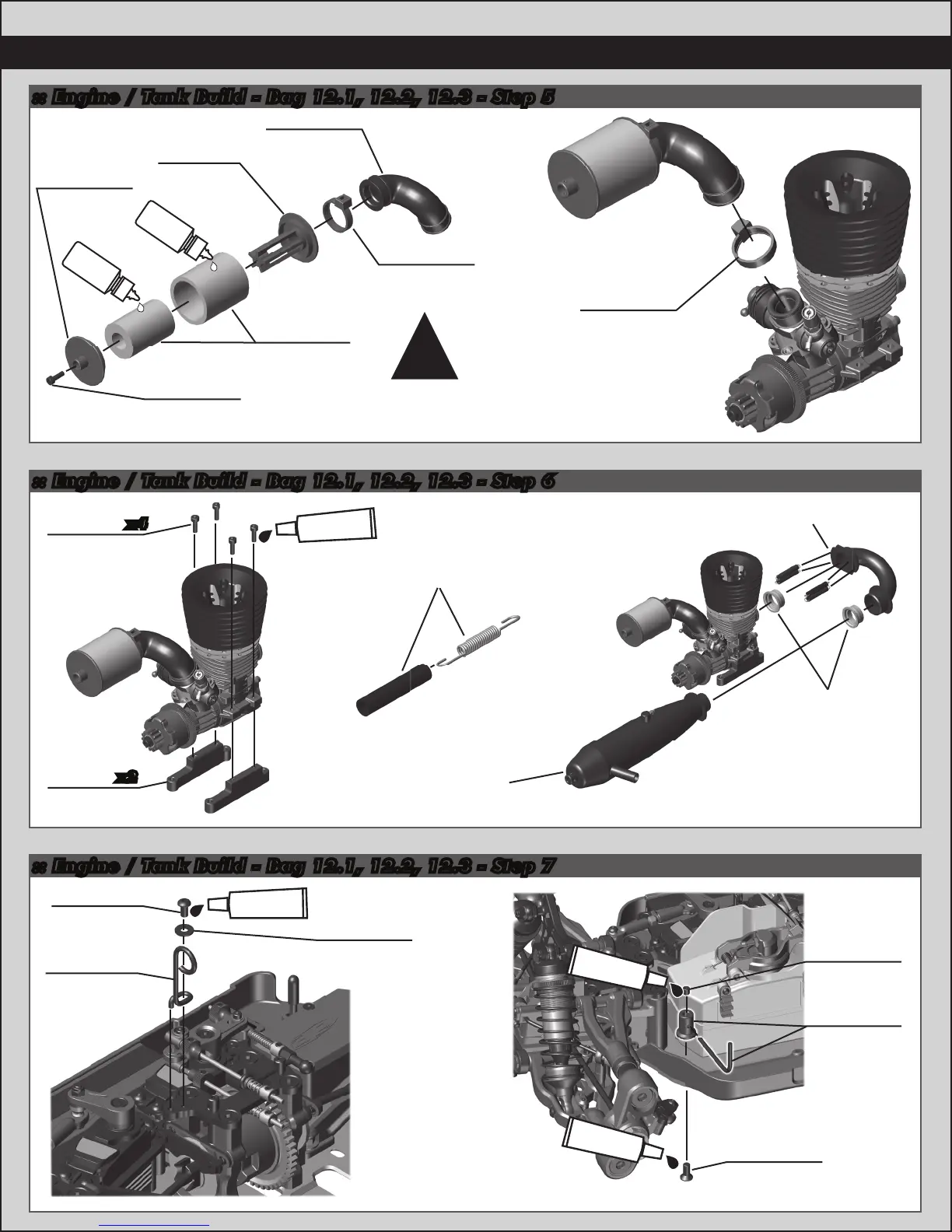

:: Engine / Tank Build - Bag 12.1, 12.2, 12.3 - Step 6
:: Engine / Tank Build - Bag 12.1, 12.2, 12.3 - Step 5
:: Engine / Tank Build - Bag 12.1, 12.2, 12.3 - Step 7
26
81115
Engine
Mount
x2
25620
3x10mm
SHCS
x4
Exhaust spring not
included!
Exhaust Pipe
not included!
Header pipe
not included!
Header pipe gaskets
not included!
#1596
thread lock
31531
3x6mm
BHCS
81124
Air Filter
Mount
89218
3x8mm
Washer
7732
4x4mm
Set Screw
81118
Pipe
Mount
81262
4x10mm
FHCS
#1596
thread lock
#1596
thread lock
#1596
thread lock
When oiling the filter
elements, place both inside
a plastic bag and squeeze to
help evenly coat the filter.
!
foam
treatment
#7710
foam
treatment
#7710
3719
Nylon Wire
Tie, 6”
81125
Air Filter
Element
81124
Air Filter
Cap
81124
Air Filter
Boot
81124
Air Filter
25620
3x10mm
SHCS
3719
Nylon Wire
Tie, 6”
