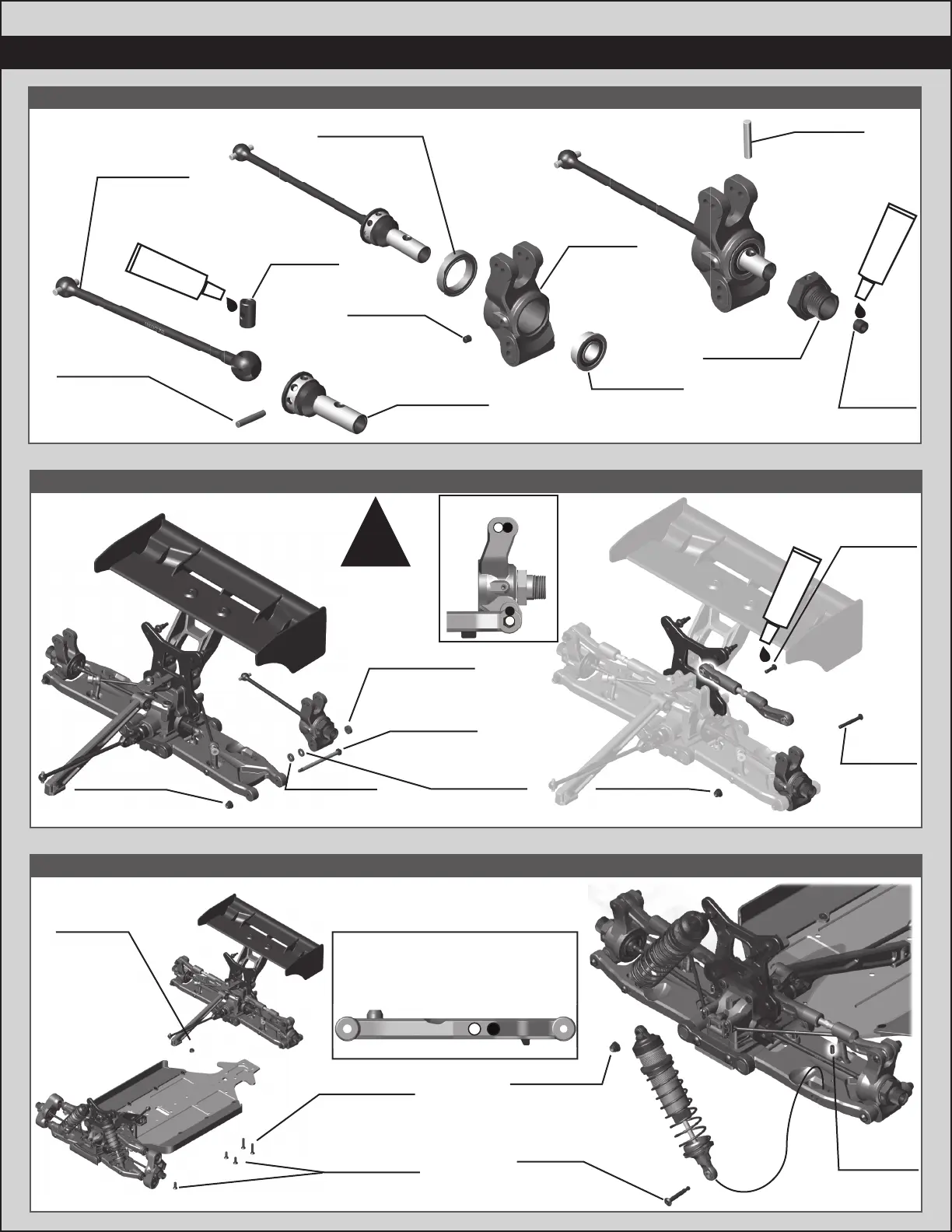

:: :: Rear Hubs Build Rear Hubs Build - Bag 8.1, 8.2 - Bag 8.1, 8.2 - Step 3- Step 3
:: :: Rear Hubs Build Rear Hubs Build - Bag 8.1, 8.2 - Bag 8.1, 8.2 - Step 2- Step 2
:: :: Rear Hubs Build Rear Hubs Build - Bag 8.1, 8.2 - Bag 8.1, 8.2 - Step 1- Step 1
#6588
black grease
#1596
thread lock
#1596
thread lock
81328
CVA
Coupler
Pin
81328
CVA
Coupler
81394
CVA Drive
Shaft
(94mm)
81326
CVA Axle,
Steel
91565
8x16x5mm
Bearing,
Flanged
91566
15x21x4mm
Bearing
81075
Rear
Hub
25225
3x3mm
Set Screw
89221
5x4mm
Set Screw
81079
Wheel Hex,
+1mm Wide
89096
Wheel
Hex Pin
25612
M3 Locknut
w/Flange
25612
M3 Locknut
w/Flange
81075
Rear Hub
Shim, 1.0mm
81075
Rear Hub
Shim, 2.5mm
81075
Rear Hub
Shim, 1.5mm
81076
Hub Hinge
Pin
89204
3x24mm
BHCS
25211
3x10mm
BHCS
Build left and
right side!
Install left and right side!
Kit Setup:
Note left/right
hub orientation.
!
(not included)
(not included)
89216
M4
Locknut
81264
4x20mm
FHCS
89214
4x12mm
FHCS
x3x3
x2x2
25612
M3 Locknut
W/ Flange
81197
Shock
Pin
81257
3x6mm
Set Screw
Install left
and right side!
Kit Setup:
Mount the rear shock in the
outside hole on the rear arm.
A B
