Associated Electrics RC8B3.2e - Differential Build (Front and Rear)

:: :: Differential Build Differential Build (Front and Rear) (Front and Rear) - Bag 1.1, 1.2 - Step 2- Bag 1.1, 1.2 - Step 2
:: :: Differential Build Differential Build (Front and Rear) (Front and Rear) - Bag 1.1, 1.2 - Step 3- Bag 1.1, 1.2 - Step 3
5

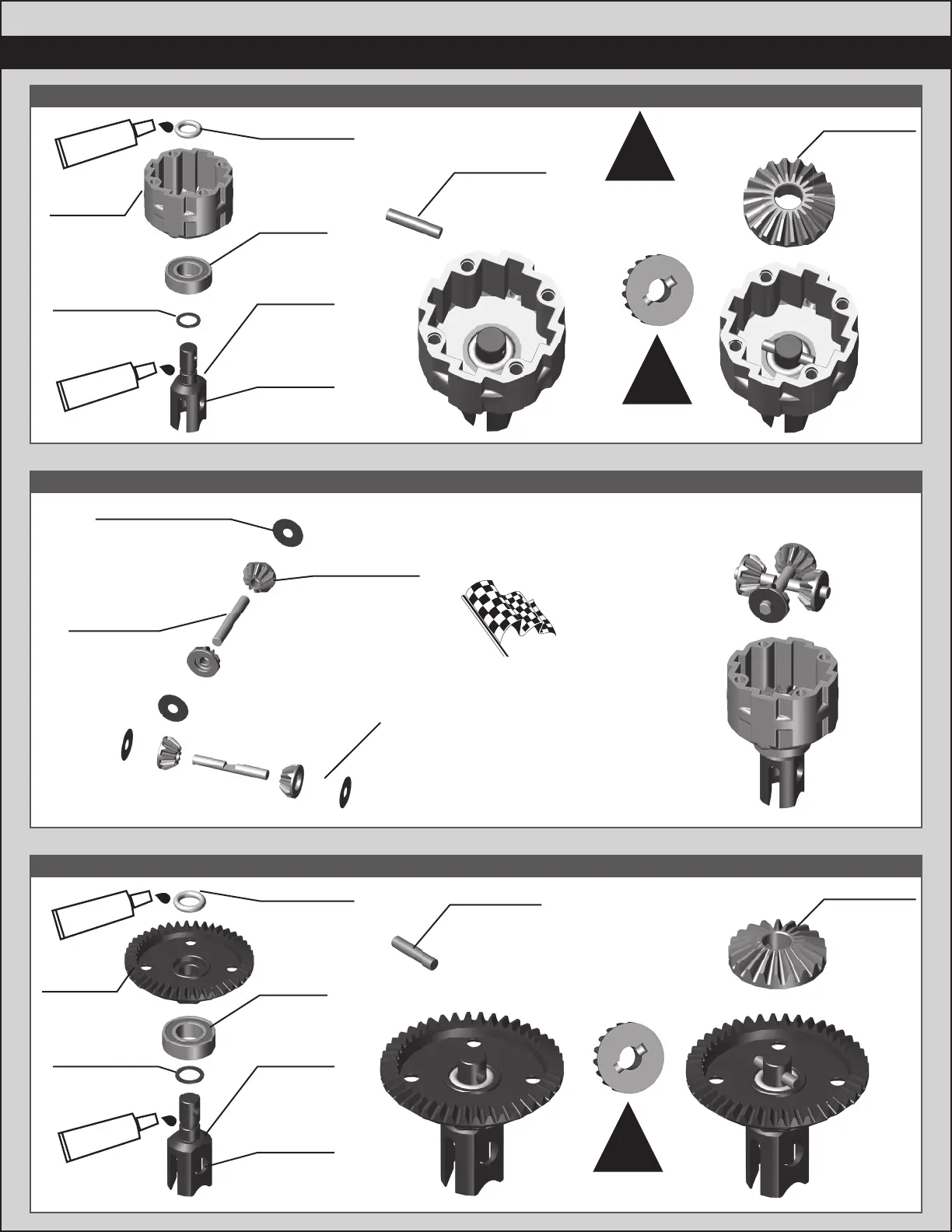

:: Differential Build (Front and Rear) - Bag 1.1, 1.2 - Step 1:: Differential Build (Front and Rear) - Bag 1.1, 1.2 - Step 1
2/20
#6588
black grease
#6588
black grease
#6588
black grease
#6588
black grease
Align pin with
groove in sun gear
Align pin with
groove in sun gear
Set aside 13x15.8mm
shims until diff install
!
!
!
81380
Pin
2.5x12mm
81380
Pin
2.5x12mm
81380
Diff Sun
Gear, 20T,
HTC
81012
17mm
Outdrive,
Front Diff
81012
17mm
Outdrive,
Front Diff
81008
15mm
Outdrive,
Rear Diff
81008
15mm
Outdrive,
Rear Diff
81380
Diff Planet
Gear, 10T,
HTC
81380
Diff
Crosspin
81381
Diff Shim
3.6x12x0.12mm
81381
Diff Shim
6x8x0.20mm
81381
Diff Shim
6x8x0.20mm
91564
8x16x5
Bearing
91564
8x16x5
Bearing
81379
Diff
Case
81009
Diff Ring
Gear, 42T
81385
Outdrive
O-Ring
5.8x1.9mm
81385
Outdrive
O-Ring
5.8x1.9mm
x4x4
x4x4
x2x2
Racer’s Tip:
You can use #81385 planet o-ring
between the planet gears and the
diff shims as a tuning option.
Do not install 3.3x1.5mm planet
o-ring for kit setup.
81380
Diff Sun
Gear, 20T,
HTC
