Associated Electrics RC8B3.2e - Page 6

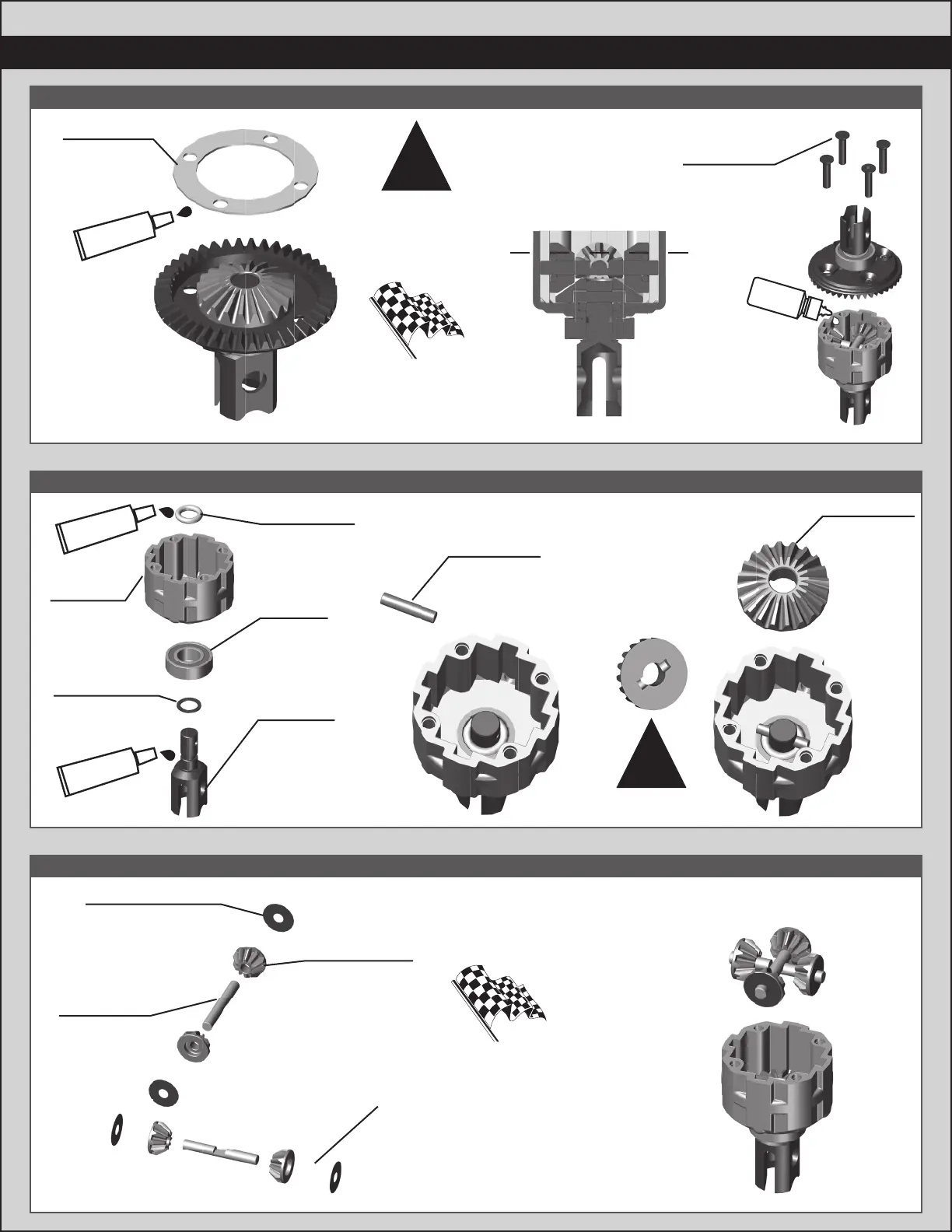

:: :: Differential Build Differential Build (Front and Rear) (Front and Rear) - Bag - Bag 1.1, 1.21.1, 1.2 - Step 4 - Step 4
:: :: Differential Build Differential Build (Center) (Center) - Bag - Bag 1.1, 1.21.1, 1.2 - Step 5 - Step 5
:: :: Differential Build Differential Build (Center) (Center) - Bag - Bag 1.1, 1.21.1, 1.2 - Step 6 - Step 6
89208
3x14mm
FHCS
x4x4
Diff Fluid
81384
Diff
Gasket
Front Diff Fluid:
5,000cst #5453
Rear Diff Fluid:
5,000cst #5453
Racer’s Tip:
Use black grease
(#6588) to coat
the diff gasket
before installation!
81380
Diff Planet
Gear, 10T,
HTC
81380
Diff
Crosspin
81381
Diff Shim
3.6x12x0.12mm
x4x4
x4x4
x2x2
#6588
black grease
#6588
black grease
#6588
black grease
Align pin with
groove in sun gear
!
!
81380
Pin
2.5x12mm
81012
17mm
Outdrive,
Center Diff
81381
Diff Shim
6x8x0.20mm
91564
8x16x5
Bearing
81379
Diff
Case
81385
Outdrive
O-Ring
5.8x1.9mm
Racer’s Tip:
Fill diff above the cross
pins, below the planet
gears as shown.
6
81380
Diff Sun
Gear, 20T,
HTC
Racer’s Tip:
You can use #81385 planet o-ring
between the planet gears and the
diff shims as a tuning option.
Do not install 3.3x1.5mm planet
o-ring for kit setup.
