Associated Electrics RC8B4 - Page 10

10

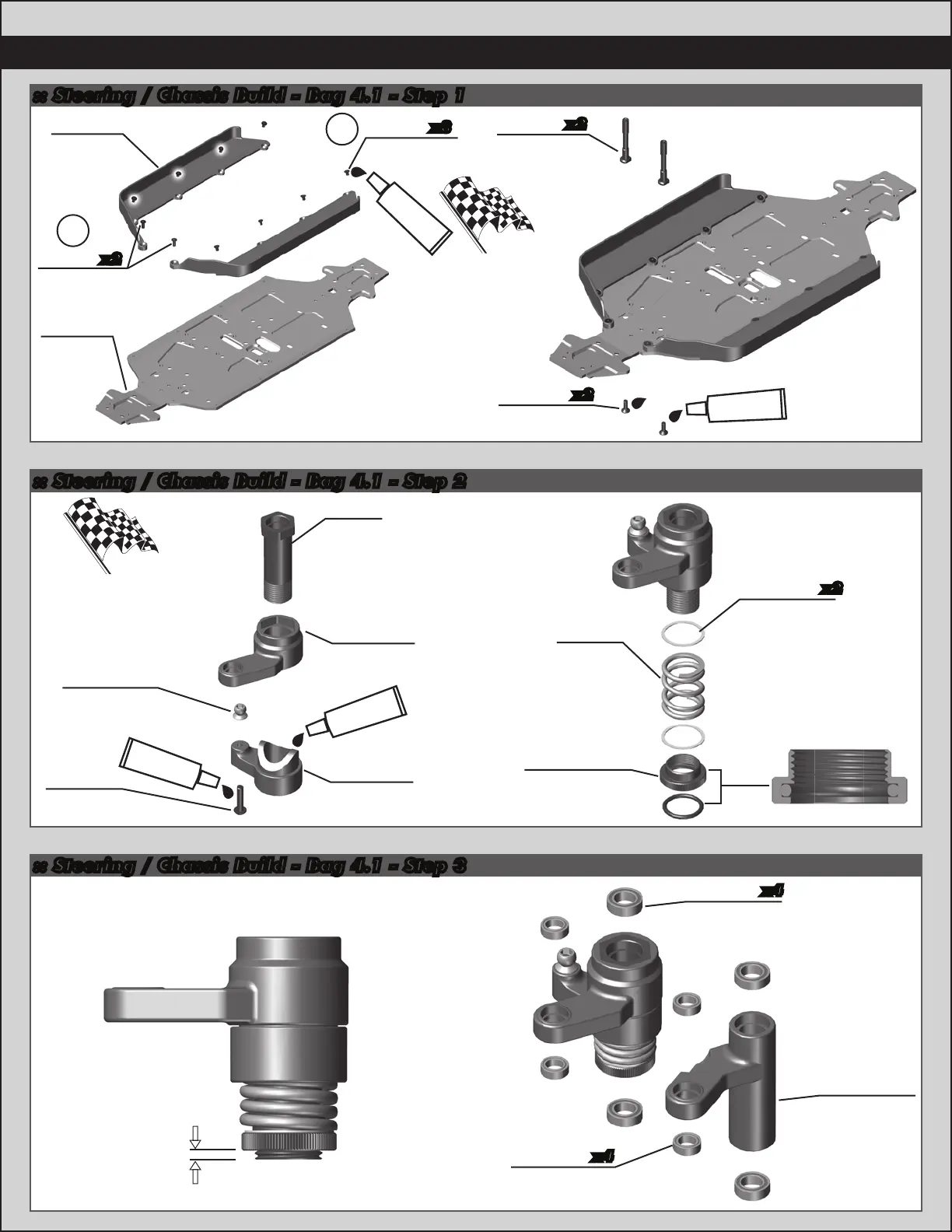

:: Steering / Chassis Build - Bag 4.1 - Step 2
:: Steering / Chassis Build - Bag 4.1 - Step 3
:: Steering / Chassis Build - Bag 4.1 - Step 1
8680
5x8x2.5mm
Bearing
x4
81084
Servo
Saver
Tube
81084
Servo Saver
Tube Shim
31404
6x10x3mm
Bearing
81083
Servo
Saver
Spring
1.5mm
81516
Servo
Saver Arm
81084
Servo Saver
Tube Spring
Nut & O-Ring
81516
Steering
Bellcrank
81516
Steering
Bellcrank
x2
x4
Racer’s Tip:
Use black grease
(#6588) to lube
the bellcrank halves
before installation!
#1596
thread lock
81091
Steering
Post
81262
4x10mm
FHCS
89202
3x12mm
BHCS
81562
Steering
Link Pivot
Ball
x2
x2
81500
RC8B4
Chassis
81431
RC8B3.2
Side
Guards
25201
3x8mm
FHCS
31540
3x5mm
FHCS
x8
x2
Loosely attach
3x5mm FHCS and
then install 3x8mm
FHCS. Tighten after
all screws are installed
(not included)
#6588
black grease
#1596
thread lock
2
1
#1596
thread lock
