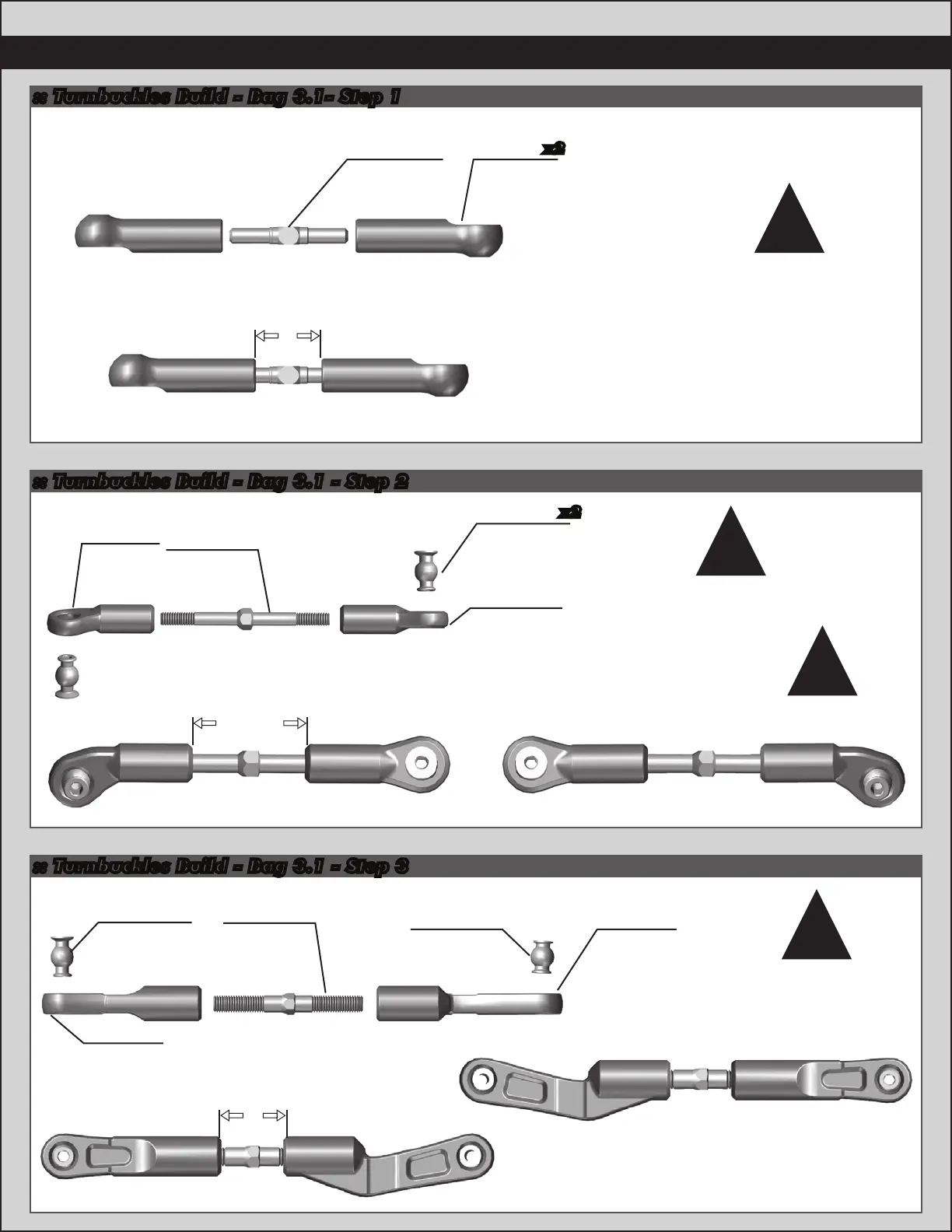

:: Turnbuckles Build - Bag 3.1- Step 1
:: Turnbuckles Build - Bag 3.1 - Step 2
:: Turnbuckles Build - Bag 3.1 - Step 3
Set aside until page 22
!
Rear Hub Turnbuckle
Steering Turnbuckle
x2
15.00mm (0.59”)
Steering Servo Turnbuckle
1401
33mm
Turnbuckle
91521
Ball Cup
Set aside until page 15
Note the direction of
turnbuckle ball
!
!
x2
81562
Turnbuckle
Ball,
Shouldered
81521
Rod End,
4mm,
Offset
81521
Rod End,
4mm
89526
4x50mm
Turnbuckle
25.00mm (0.98”)
Left Turnbuckle Right Turnbuckle
Set aside until page 19
!
16.00mm (0.62”)
81562
Turnbuckle
Ball
81521
Rod End,
5mm,
Offset
81521
Rod End,
5mm
81562
Turnbuckle
Ball,
Shouldered
89299
Steel
Turnbuckle,
5x44mm
Left Turnbuckle
Right Turnbuckle
