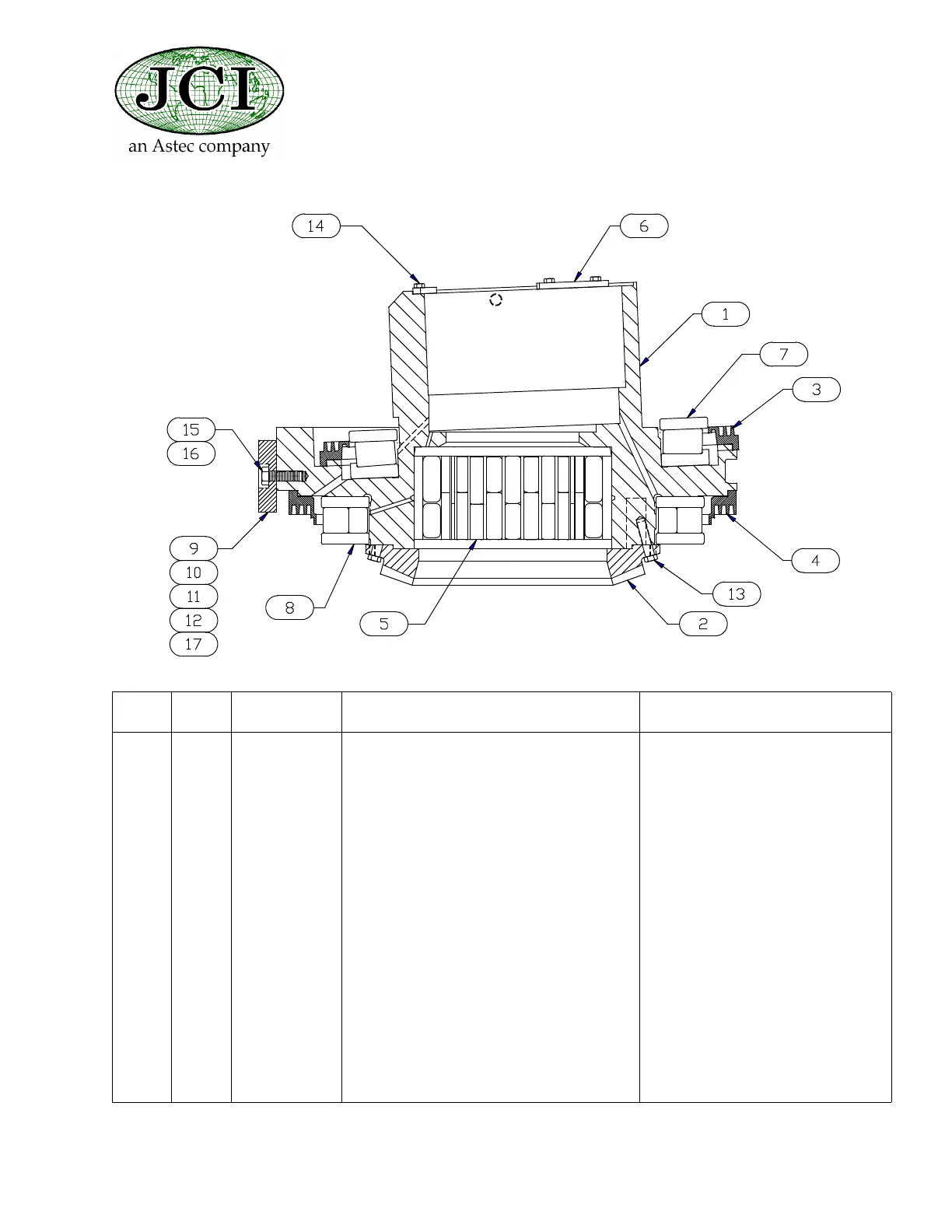

Wedgeplate Assembly 1200LS
ITEM QTY
PART
NUMBER
DESCRIPTION COMMENTS
1 1 450207 WEDGE PLATE, 1200LS
2 1 450059 GEAR, RING (SPIRAL)
3 1 450007 SEAL RING - UPPER WEDGE PLATE
4 1 450008 SEAL RING - LOWER WEDGE PLATE
5 1 450021 BEARING, RADIAL
6 3 450228 UPPER RADIAL RETAINER
7 1 450022 BEARING, UPPER THRUST
8 1 450023 BEARING, LOWER THRUST
9 11 450035 COUNTERWEIGHT, LIGHT
10 1 450034 COUNTERWEIGHT, LEADING
11 4 450088 SHIM, COUNTERWEIGHT, 1/8
12 4 450089 SHIM, COUNTERWEIGHT, 1/4
13 8 070025 CAPSCREW HEX 3/4 16NF X 2-1/2
14 6 070027 CAP SCREW HEX 1/2 13NC X1-1/4
15 14 070083 CAP SCREW HEX 7/8-9NC X2-1/2
16 14 078034 WASHER, LOCK, 7/8
17 1 450134 WEAR BAND WEDGE PL SEAL RG
