JCI 24/7 Parts Number 888-474-0115
© 2003 JCI
PAGE 5
03/20/03Rev. 0
REFERENCE # 450109

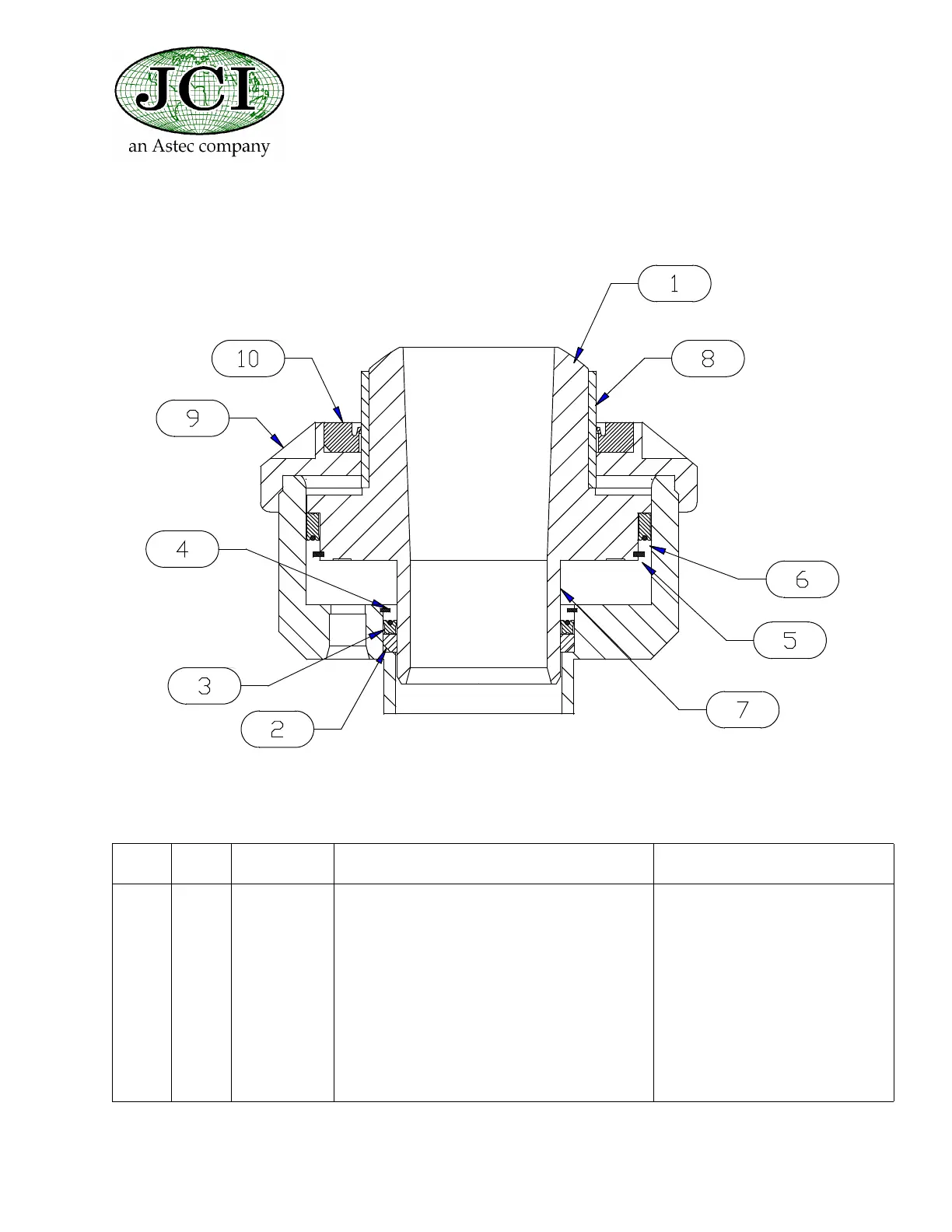

Clamp Cylinder Assembly
ITEM QTY
PART
NUMBER
DESCRIPTION COMMENTS
1 1 450343 CLAMP CYLINDER
2 1 450359 INSERT CLAMP CYLINDER
3 1 080009 SEAL U-CUP CLAMP CYL 1870-2
4 1 079004 RETAINING RING BRG INC-UR262
5 1 079005 RETAINING RING SMALLEY-BS-437
6 1 080010 SEAL ANCHOR PK CLAMP CY 1870-4
7 1 450000 CLAMP CYLINDER PISTON
8 1 450479 SLEEVE, BRASS, CLAMP CYLINDER
9 1 450480 THREADED COVER CLAMP CYLINDER
10 1 080011 SEAL DUST CLAMP CYL 18939H
