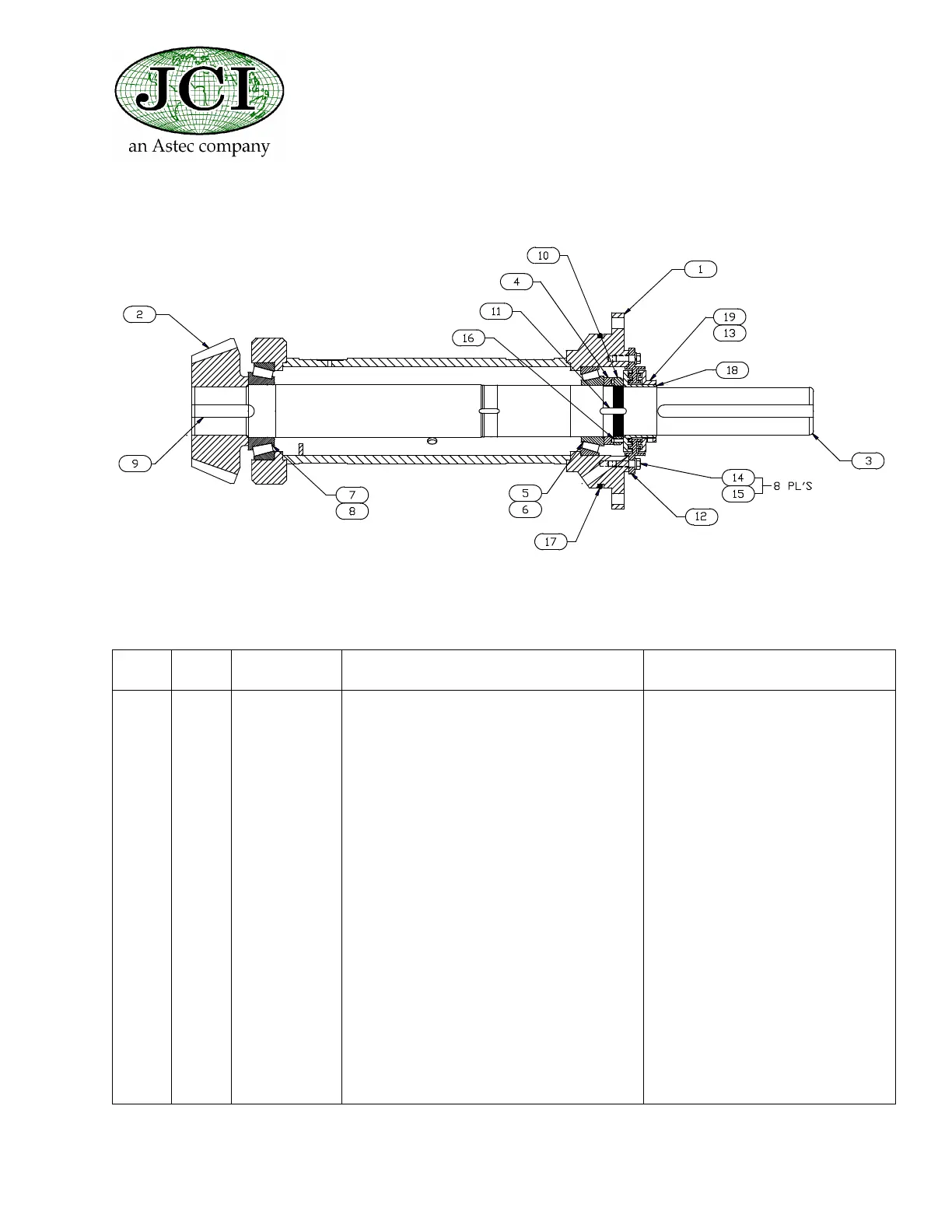

Pinion Assembly 1200LS
ITEM QTY
PART
NUMBER
DESCRIPTION COMMENTS
1 1 450267 PINION HOUSING
2 1 450058 GEAR, PINION (SPIRAL)
3 1 450033 PINION SHAFT
4 1 450111 NUT LOCK, PINION BEARING
5 1 450117 BEARING, PINION, CUP, OUTER
6 1 450118 BEARING, PINION, CONE, OUTER
7 1 450119 BEARING, PINION, CUP, INNER
8 1 450120 BEARING, PINION, CONE, INNER
9 1 450156 KEY, PINION GEAR
10 1 450067 LOCKNUT, PINION SHAFT
11 1 540140 KEY, LOCK RING
12 1 450027 COVER PLATE
13 1 070142 SETSCREW 3/8 X 3/8 NC SOC HD
14 8 070032 CAP SCREW HEX 3/8 16NC X1-1/4
15 8 078024 WASHER, LOCK, 3/8
16 1 070150 SETSCREW 1/4-20NC X 1/2 SOC HD
17 1 084055 O-RING 6227-74
18 1 450028 FLINGER - INNER
19 1 450029 FLINGER - OUTER
