ASTEC JCI LS Series User Manual

JCI 24/7 Parts Number 888-474-0115
© 2003 JCI
PAGE 12
06/19/03Rev. D
REFERENCE # 450244

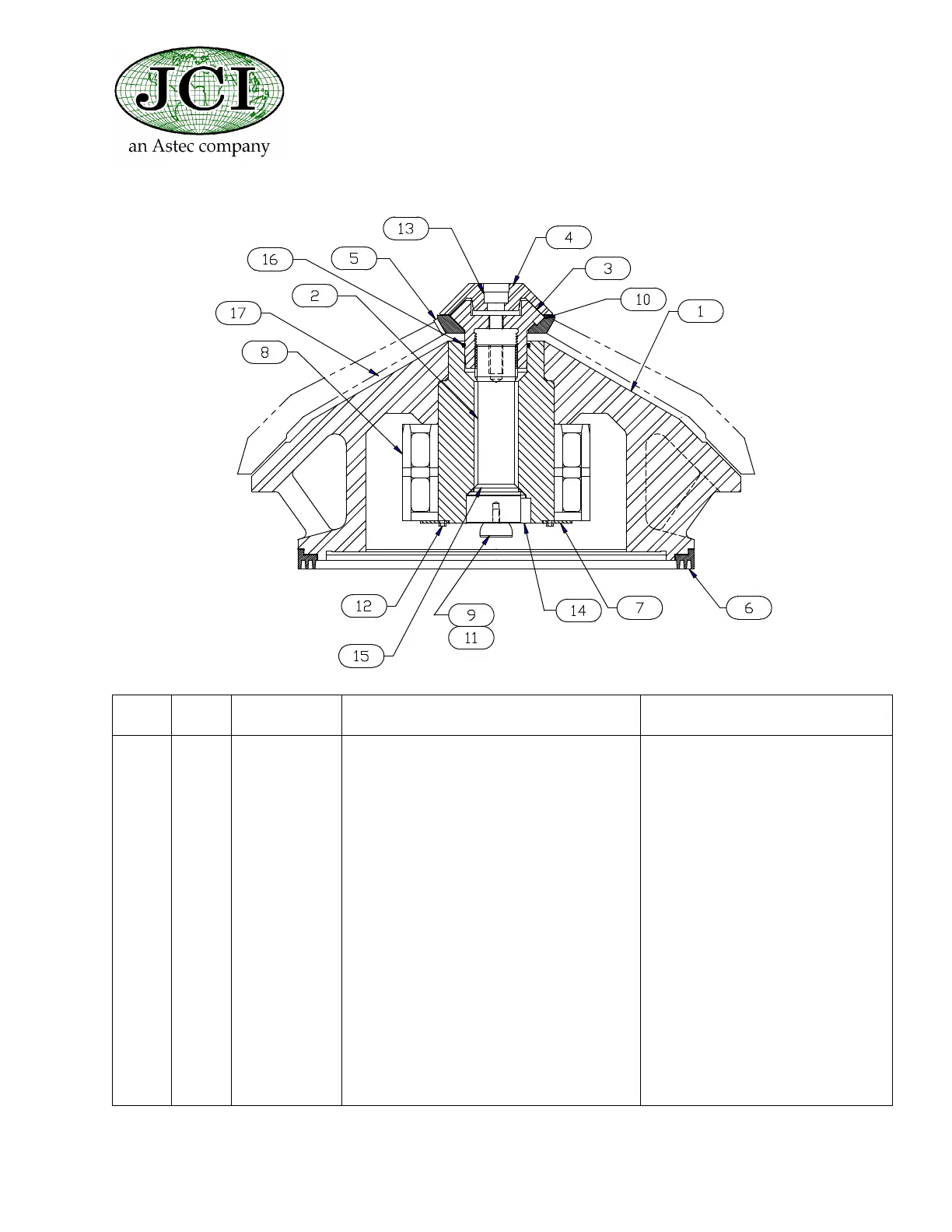

Cone Assembly 1200LS/SS
ITEM QTY
PART
NUMBER
DESCRIPTION COMMENTS
1 1 450247 CONE WITH STEM - 45
2 1 450151 MANTLE BOLT
3 1 450057 MANTLE NUT
4 1 450053 MANTLE NUT CAP - 45 INCH
5 1 450056 MANTLE WASHER
6 1 450018 SEAL RING - CONE
7 1 450052 RETAINER, CONE RADIAL BEARING
8 1 450021 BEARING, RADIAL
9 1 450501 TORQUE BAR, UNHARDENED
10 1 450257 PIN, .500 X 1.000
11 2 070189 CAP SCREW SOC 7/8 9NC X 1-3/4
12 4 070032 CAP SCREW HEX 3/8 16NC X1-1/4
13 1 070105 CAP SCREW SOC 1-1/4 7NC X2-1/2
14 1 450258 PIN, .875 X 2.000
15 1 084041 O-RING 6227-48
16 1 084050 O-RING 6227-60
17 1 540103 FOAM, 1
