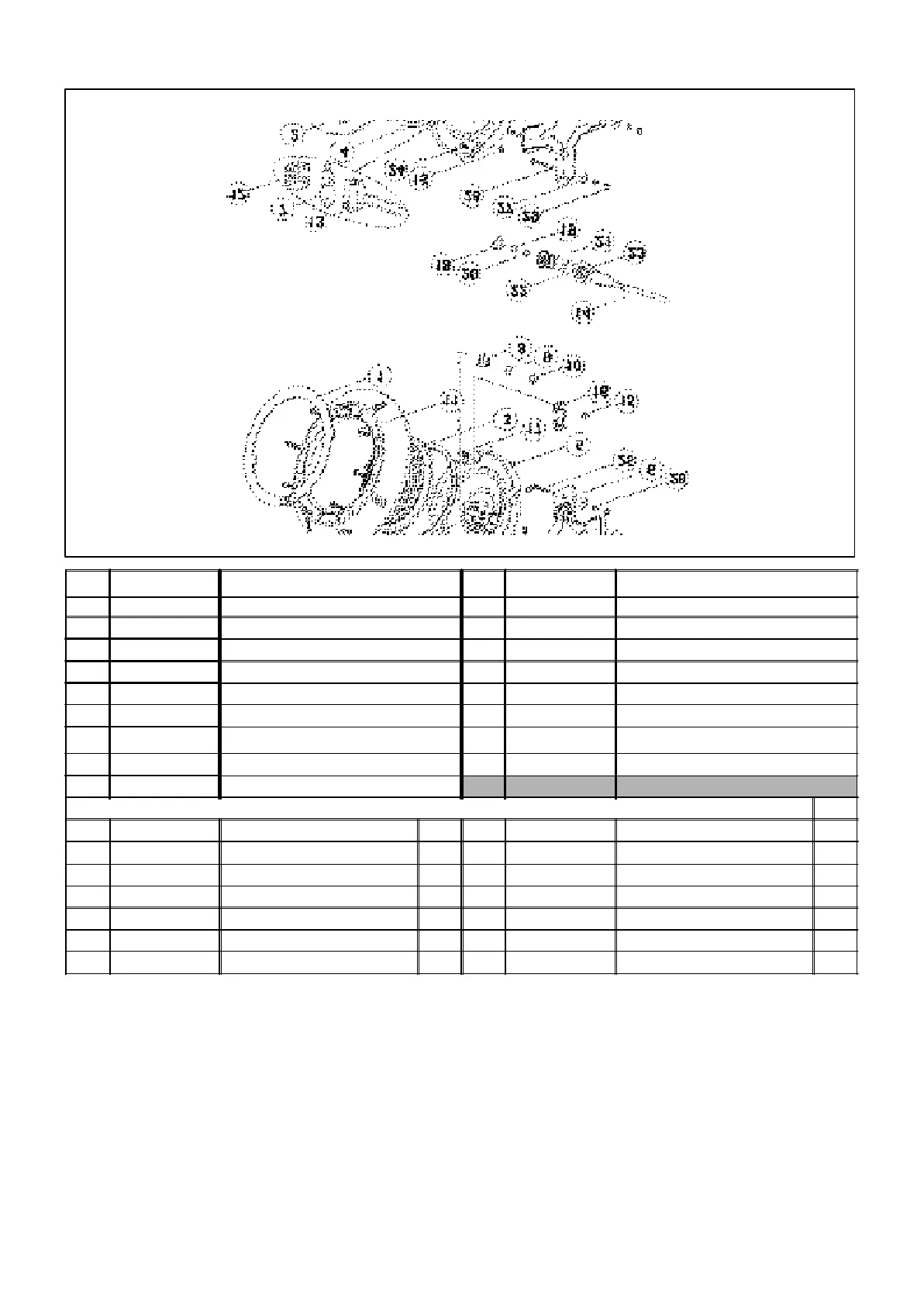

SPARE PARTS OF LIGHT
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
1 00346R0002 Face plate ring 10 00346R0011 Cable gland gasket
2 00346R0003 Face plate 11 7013206020 Screw DIN 7985 A2 M6x20
3 00373 Clear lens 12 00346R0102 Ceramic plugboard
4 00346R0004 Silicone gasket 13 00346R0103 Lamp holder
5 00346R0100 Screen and flange set 14 00346R0007 Electrical cable H07 RN-F 2x1
6 00346R0014 Mounting bracket 15 7012106000 Nut DIN 934 A2 M-6
7 00371 Halogen lamp 12 V 100 W 16 00346R0013 Securing hook
8 00346R0010 Cable gland nut PG-11 17 7010106016 Screw DIN 933 A2 M6x16
9 00346R0012 Cable gland washer 16,5x10,5x1,5
BAG CONTENT
Nº CODE DESCRIPTION
QUANT
Nº CODE DESCRIPTION
QUANT
18 00346R0005 Cable gland nut PG-9 1 24 7011448016 Screw DIN 7981 A2 4,8x16 1
19 00346R0009 Cable gland washer D.100 1 25 7010506035 Screw DIN 84 A2 M6x35 4
20 00346R0006 Cable gland gasket 13x9,6x4 PG-9 1 26 7230050015 Flat gasket 20x6x2 4
21 00346R0015 Conduit connector 1 27 00361R0001 Flat gasket 20x6x2 4
22 7230195030 O-ring 19,5x3 1 28 7011906000 Washer DIN 125 A2 M-6 4
23 00361R0101 Wall conduit nut 1 29 7012106000 Nut DIN 934 A2 M-6 4
