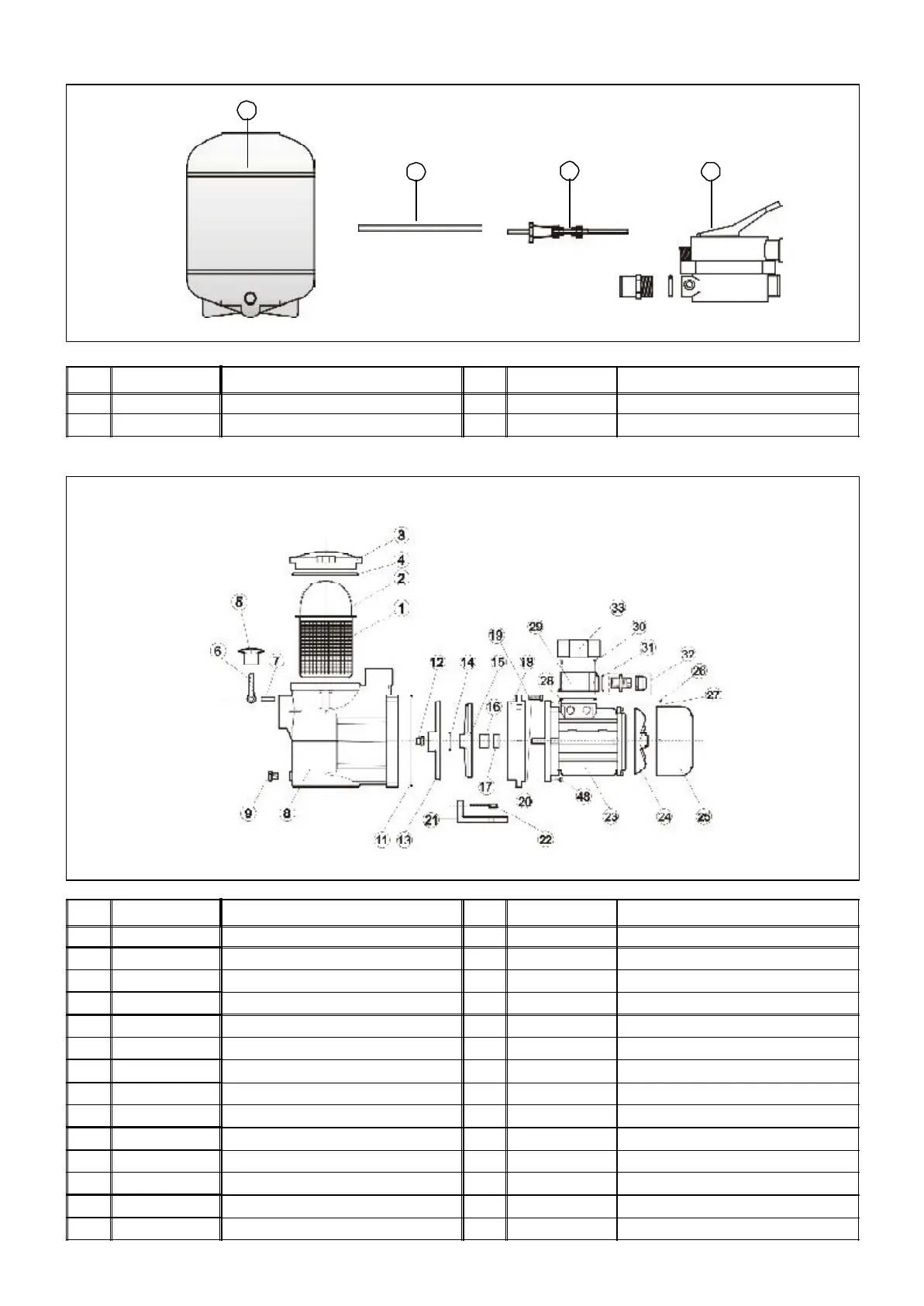

SPARE PARTS OF FILTER
SPARE PARTS OF PUMP
-8-
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
1 09921R001 Filter body ø500 3 00555R0300 Filter ring
2 720R1750057 O-ring cover 4 05872R0201 1 1/2" Top valve
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
1 09096R0130 Pre-filter lid 15 70132R04010 Fan cover screw
2 09096R0104 Pre-filter lid seal 16 09096R0309 Cable gland
3 09096R0140 Pre-filter 17 09096R0307 Conection box lid screw
4 09096R0300 Lid handle 18 09096R0310 Condenser
5 09096R0162 Handle shaft 19 09096R0306 Connection box lid
6 09096R0163 Handle securing clip 20 09096R0305 Connection box seal
7 09096R0105 Drain plug 21 09096R0210 Pump body flange
8 09096R0120 Pump body 22 09096R0201 Breakwater
9 09096R0110 Pump base 23 09096R0204 Mechanical seal
10 70107R06030 Screw M6 x 30 DIN 912 24 09098R0230 Pump turbine (Ø500)
11 70107R06020 Screw M6 x 20 DIN 912 25 09096R0202 Diffuser seal
12 09098R3000 Pump motor 26 09096R02207 Diffuser
13 09096R0301 Fan 27 09096R0203 Turbine securing plug
14 09096R0302 Fan cover 28 09096R0101 Pump body seal
