Astralpool ECO 22439 - Spare Parts of Front Module; Spare Parts of Filtration Box

4
12
10
11
9
8
765
2
1
3
13
14
15
16
21
20
19
18
23
22
25
24
26
27
2928
30

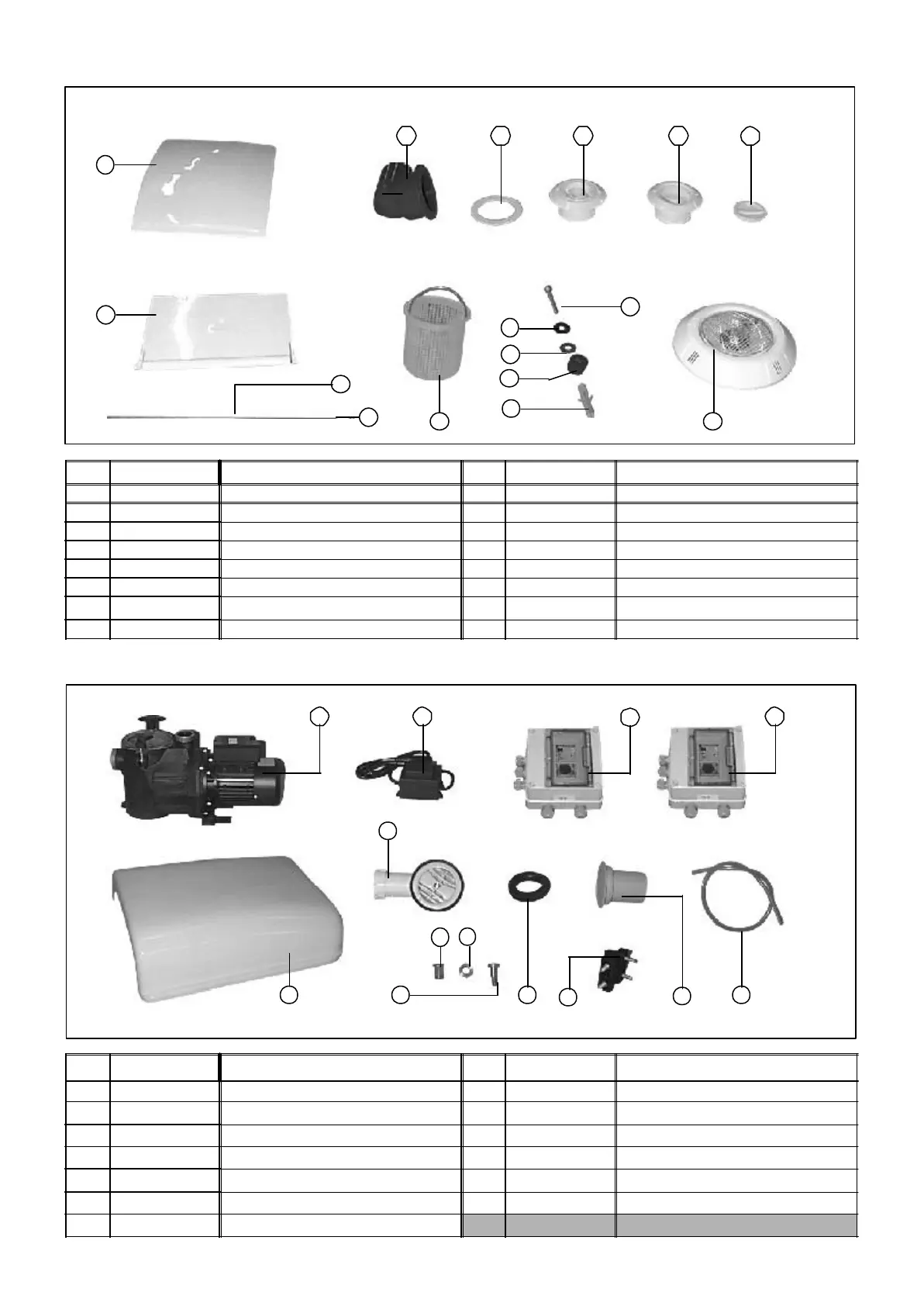

SPARE PARTS OF FRONT MODULE
SPARE PARTS OF FILTRATION BOX
-7-
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
1 22439R1220 Upper front cover of skimmer 9 00300R0002 Suction plug 3/4"
2 05280R0200 Hinged cover of the skimmer 10 70122R06000 Stainless steel screw M6 DIN 985
3 09096-0140 Basket 11 22439R1201 Skimmer securing rod
4 00361 Light 12 70134R08050 Stainless steel screw D8*50 DIN 571
5 04043 Drive nozzle bushing 13 18546R1304 Rubber plug 9x25x1,5
6 00103R0003 Jet flat joint 14 70139R08000 Stainless washer D8 DIN 90215
7 04034 outlet nozzle 15 18546R1303 Rubber plug 9x25x7 EPDM 70
8 04035 Suction inlet nozzle 16 18546R1301 Fisher plug nº10
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
18 14957 Pump 3/4 hp.Single-phase 25 024001011 Glass tube 4x6
19 18546R2242 Transformer 26 00621R0201 Hinges
20 18546R2243 Electric Box (in code 22440) 27 7013208020 Stainless steel screw M8*20 DIN 7985
21 22439R2243 Electric Box 28 15260R0211 Brass insert M8X12
22 31311001 Jimten housing drain 29 15269R0212 Brass nut M12
23 00615R0102 Pipe through fitting joint D.50 30 22439R2100 Filtration box cover
24 04048R0100 Pneumatic pushbutton
