Astralpool Viron EQ - Section 11. Exploded Diagram; And Parts List

23
Viron e-Quilibirum Series Chlorinator Installation Manual
22
Viron e-Quilibirum Series Chlorinator Installation Manual

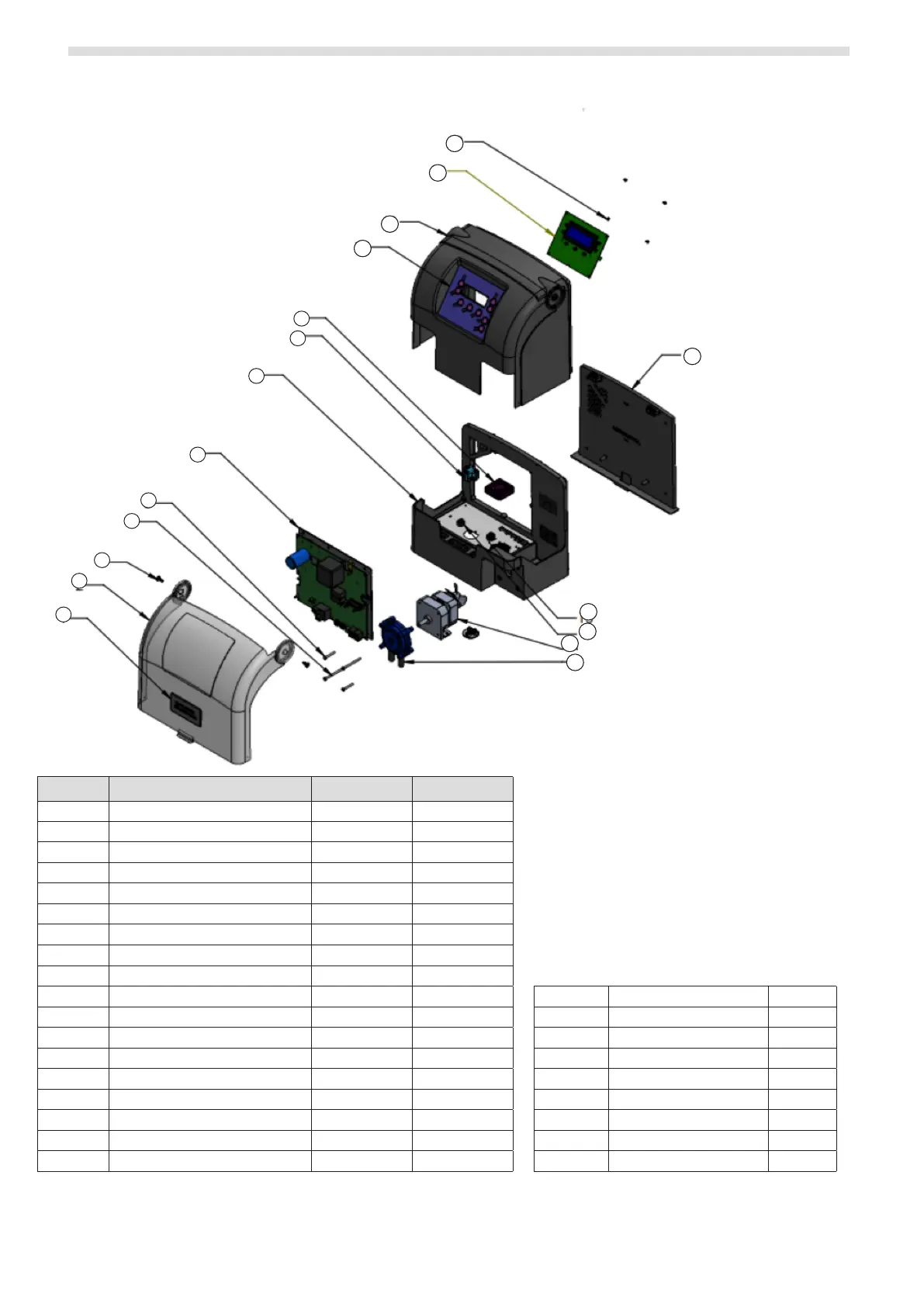

Section 11. Exploded Diagram and Parts List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Item Description Part Number Quantity
1 Label LABEL371 1
2 Trans Grey Plastic Visor 950903 1
3 Visor Hinge Pins 520160 2
4 Screws Long - for Pump 221117 2
5 Screws Short - for Pump 221118 2
6 Main PCB SP71404 1
7 Main Body 950908 1
8 3 Pin Plug Base 20026 1
9 Cooling Fan 2030037 1
10 Label - Facia LABEL256 1
11 Main Cover 950902 1
12 PCB - User 71401 1
13 Screws for User PCB 395201 4
14 Wall Mount Bracket 950905 1
15 Cell Cable Strain Relief 20028 1
16 Power Cable Strain Relief 20008 1
17 Pump Motor – 5 RPM 524750 1
18 Pump Faces - Blue 521010 2
not shown SQUEEZE TUBE 520112
not shown POWER CABLE 350029
not shown CELL CABLE 71400
not shown COMPONENT BAG 78300
not shown Instruction Manual INST464
not shown CELL – for 12803 (internal only) 11915
not shown CELL – for 12804 (internal only) 11916
not shown CELL – for 12805 (internal only) 11917
not shown CELL – for 12806 (internal only) 11918
