Section 2. System Overview
Components
a. eQ Controller
b. Controller Mounting Plate
c. Chlorinator Cell and Electrodes
d. Screws for Mounting Plate
e. 50mm Injection Mixing Cell
f. 50mm unions for glue-in pipe connection
g. PVC Tube Acid Drum Connection and Venting Kit
Table 1. Chlorinator System Contents
2.3 Specifications
2.3.1 Salt Chlorinator System
Compact Mid Large
Nominal chlorine production 18 g/h 25 g/h 35 g/h
Nominal output amps 3.6 A 5.0 A 7.2 A
Required salt level 4000ppm
Power supply voltage 240 VAC - 50 Hz
Electric power 200 W
Protection index IP43
Flow through the cell Min. 80 Lpm
Max pressure in the cell 2.75 bar
Operating water temperature 10°C - 40°C
Table 2. Salt Chlorinator System Specifications
Section 3. Installation
3.1 Controller Location
The controller should be located at or near the
equipment pad, at least 3.5 metres or more away
from the inside wall of the pool/spa, 1.5 metres off the
ground, and within 2 meters of the cell. All national,
state, and local codes are applicable.
Figure 2. Equipment Conguration, Acid Dosing
2.1 Overview
The Viron e-Quilibrium Chlorinator incorporates a
controller with inbuilt acid pump, an electrode cell for
converting minerals or salts into chlorine, a mounting
plate for the controller and tubes, and injection points
for the acid which controls your pool water pH. The
intelligent software allows you to select and change
your acid dosing ratio and intelligently adjusts the
dose rate to match the output of the electrode. (The
higher the output, the faster the pH will change and
the more the controller will dose acid to compensate).
However, you MUST test your pH every day for the first
week and adjust your acid dose rate on the controller
to achieve the correct pH level.
2.1.1 pH Levels
Generally you should aim to have your pH at 7.4 to 7.8.
The actual pH you choose for your pool will depend
on the water quality in your area, the interior finish of
your pool and the type of pool you have.
2.2 Contents
Before starting, check that you have the correct parts
as indicated in Figure 1 and Table 1. If any parts are
missing or incorrect, p lease call your local distributor or
technical support at 1300 763 021 for assistance.
2.2.1 Viron e-Quilibrium Basic Chlorinator
System
b
c
d
e
f
g

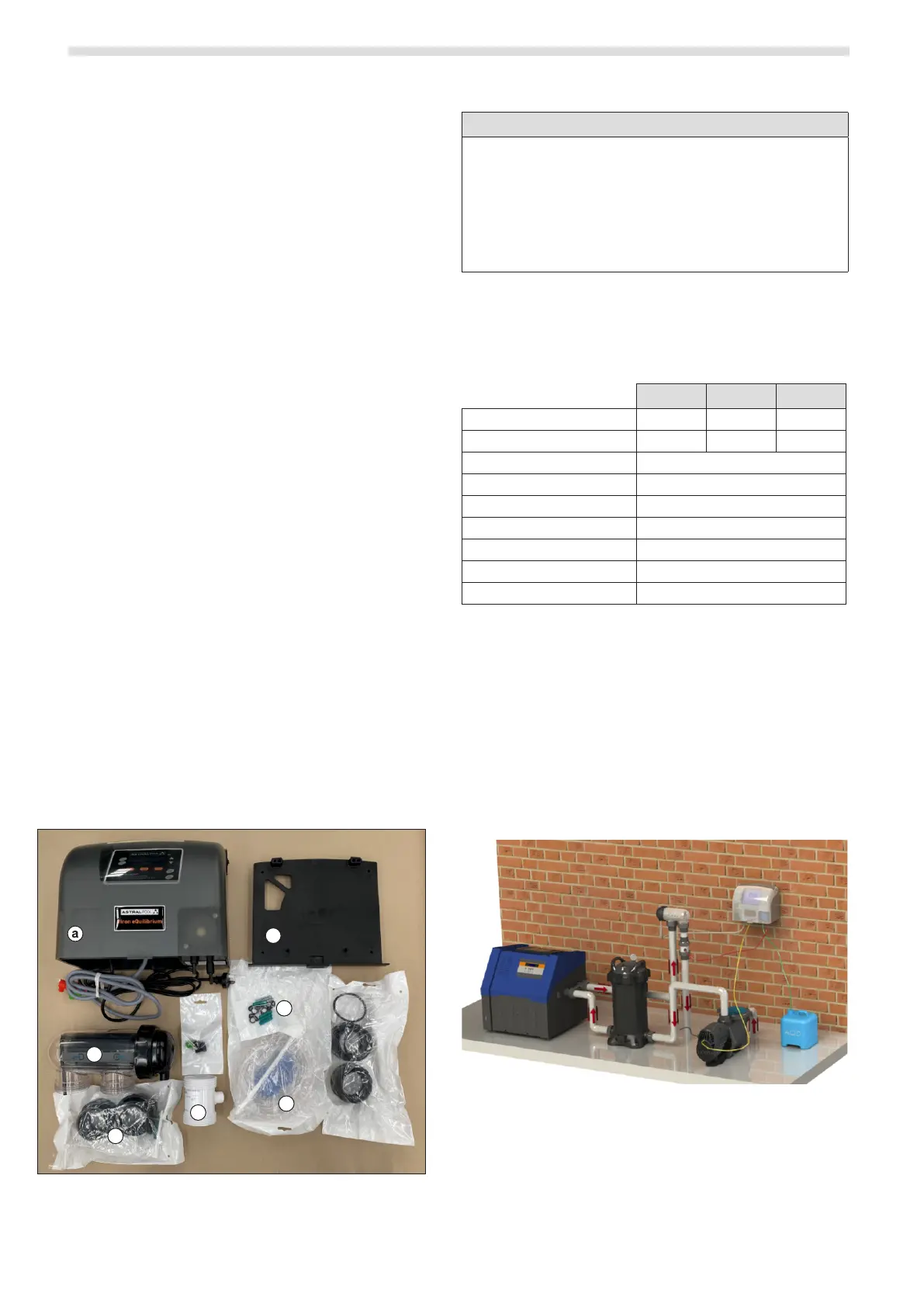

Figure 1. Chlorinator System Contents
