ASUNA 4500 - Assembly Instruction; Steps 1-2

組 裝 說 明
Assembly Instruction

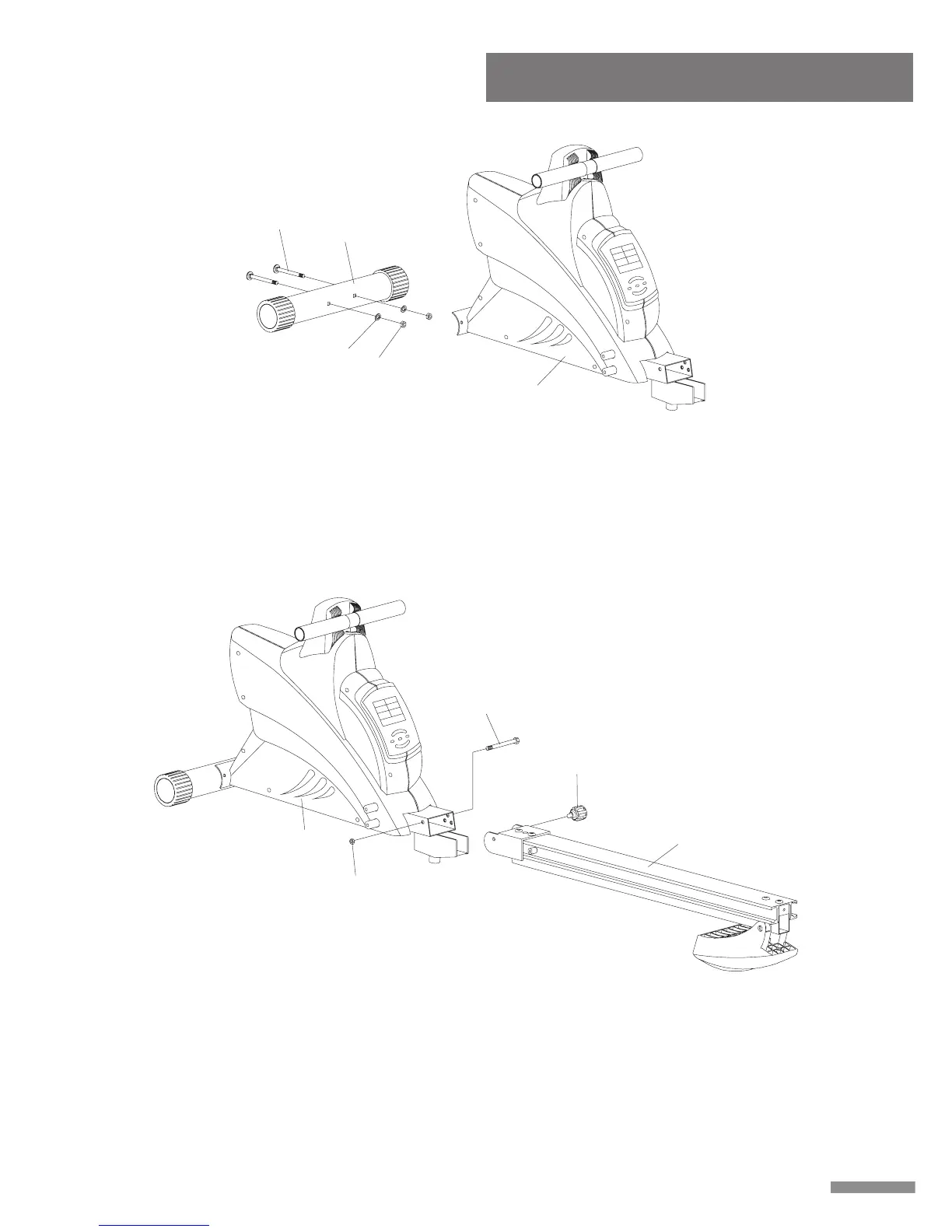

Step 1.
Attach Front Stabilizer (A2) to the Main Frame (A1), and fasten with Carriage
Bolts (01), Nuts (02) and Washers (27), use Spanner Wrench #14 (T3) to tighten
and secure.
27
2
A2
1
A1
C2
A4
A1
11
12
Step 2.
1. Assemble Main Frame (A1) with Upper Slide Track (A4), fasten with Bolts (11),
Nuts (12) and Pop Pin (C2), Use Spanner Wrench #14 (T3) to tighten and
secure.
5
