ASUNA 4500 - Assembly Instruction (Continued); Steps 3-4

Assembly Instruction
6

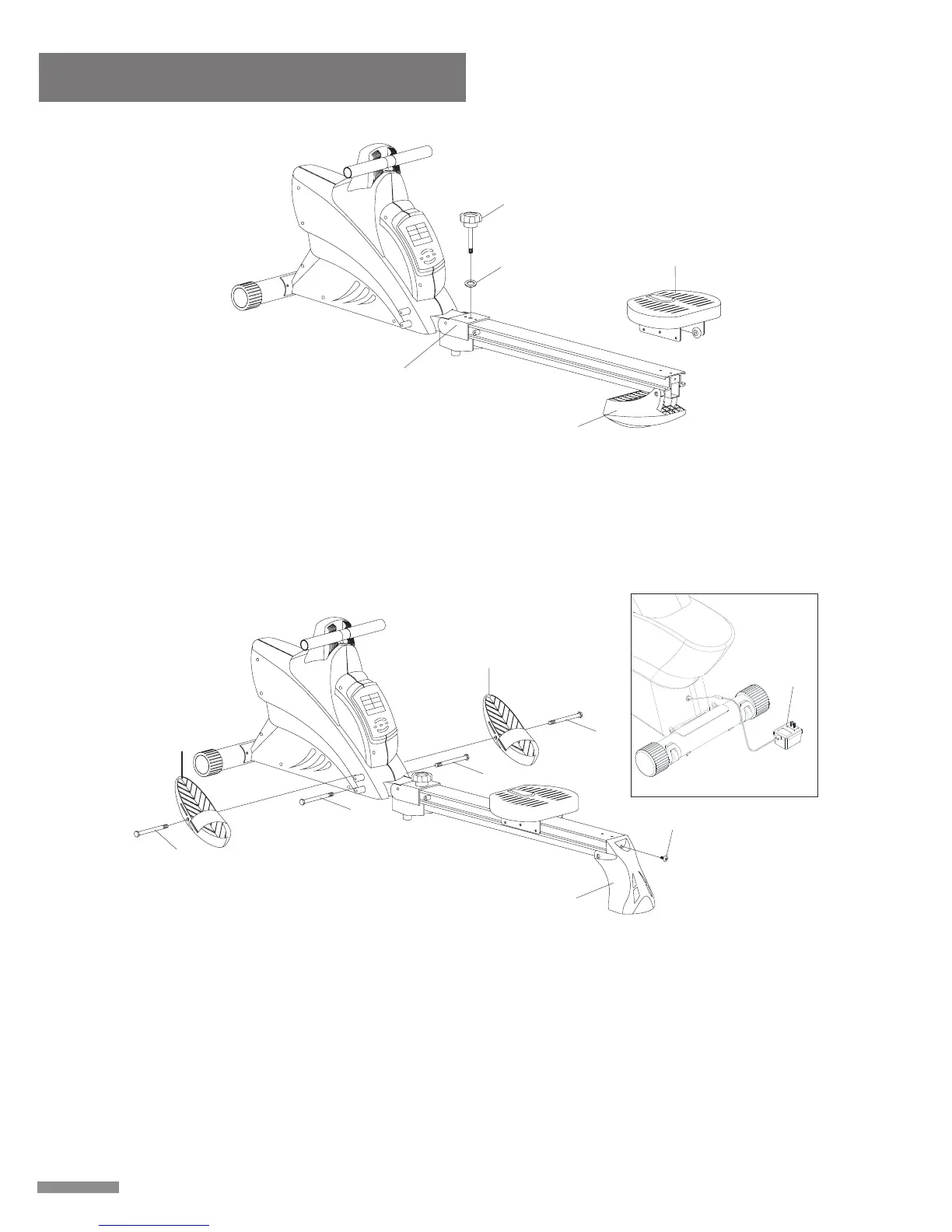

Step 3.
1. Fasten Fix Knob (C1) and Flat Washer (30) onto Folding Bracket (A5).
2. Flip down Rear Fulcrum (B7) on the end of Slide Track (A4), mount Saddle (B9)
to Slide Track (A4).
Step 4.
1. Flip Rear Fulcrum (B7) back to upright position and fasten with Screw (24), use
Allen Key (T1) to tighten and secure.
2. Fasten 2 Shafts (10) onto lower holes of the Main Frame (A1), use Spanner
Wrench # 21 (T4) to tighten and secure.
3. Insert Shafts (10) through Pedals (B3) and the upper holes on the Main Frame
(A1), use Spanner Wrench #21 (T4) to tighten and secure.
4. Refer to Figure 1. Plug the Adapter (26) into the socket located on the front of the
rower. Plug the Adapter (26) into an electrical outlet.
BB99
BB77
3300
CC11
A5
10
10
B3
24
B7
10
10
B3
26
Figure 1
