ASUNA 4500 - Folding Mechanism Operation; Folding and Unfolding

A4
C1
30
Assembly Instruction
7
CC22
3300
CC11

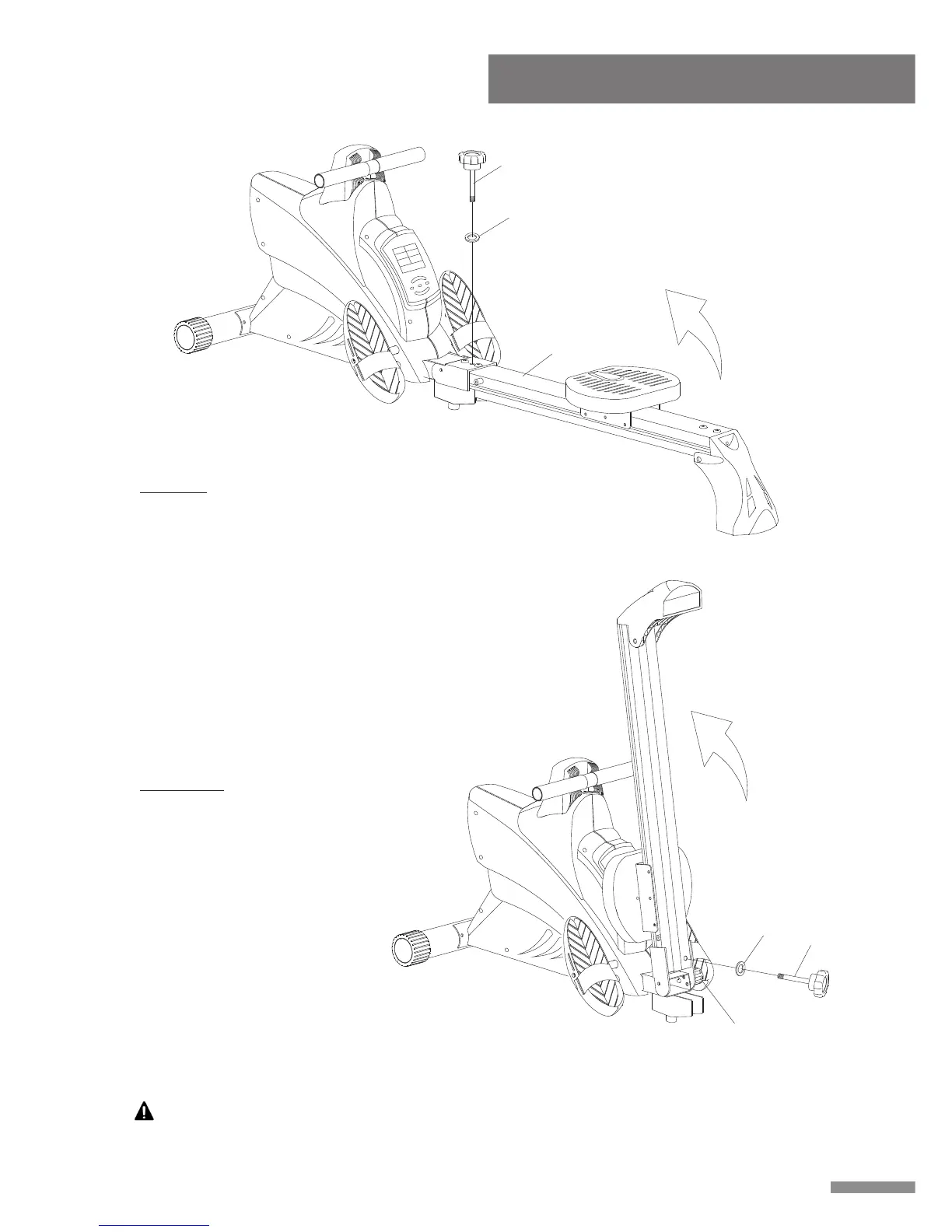

Folding Instructions:
1. F olding:
Remove Fix Knob (C1) and
Flat Washer (30), place them
aside. Pull Pop Pin (C2) out
and lift the slide track, then
release Pop Pin (C2) until you
hear a "click”. That means the
track is locked in the vertical
position. Insert Fix Knob (C1)
and Flat Washer (30) into the
hole at the bottom of slide
track.
2. U n folding:
Remove Fix Knob (C1) and
Flat Washer (30), place them
aside. Pull Pop Pin (C2) out
and pull down the slide track,
then release Pop Pin (C2)
until you hear a "click”. That
means the track is locked in
position. Insert Fix Knob (C1)
and Flat Washer (30) into the
original place on slide track.
CAUTION: Keep hands clear of the hinge when folding and unfolding the unit.
