1.5 Motherboard overview
Beforeyouinstallthemotherboard,studythecongurationofyourchassis
toensurethatthemotherboardtsintoit.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and damage
motherboard components.

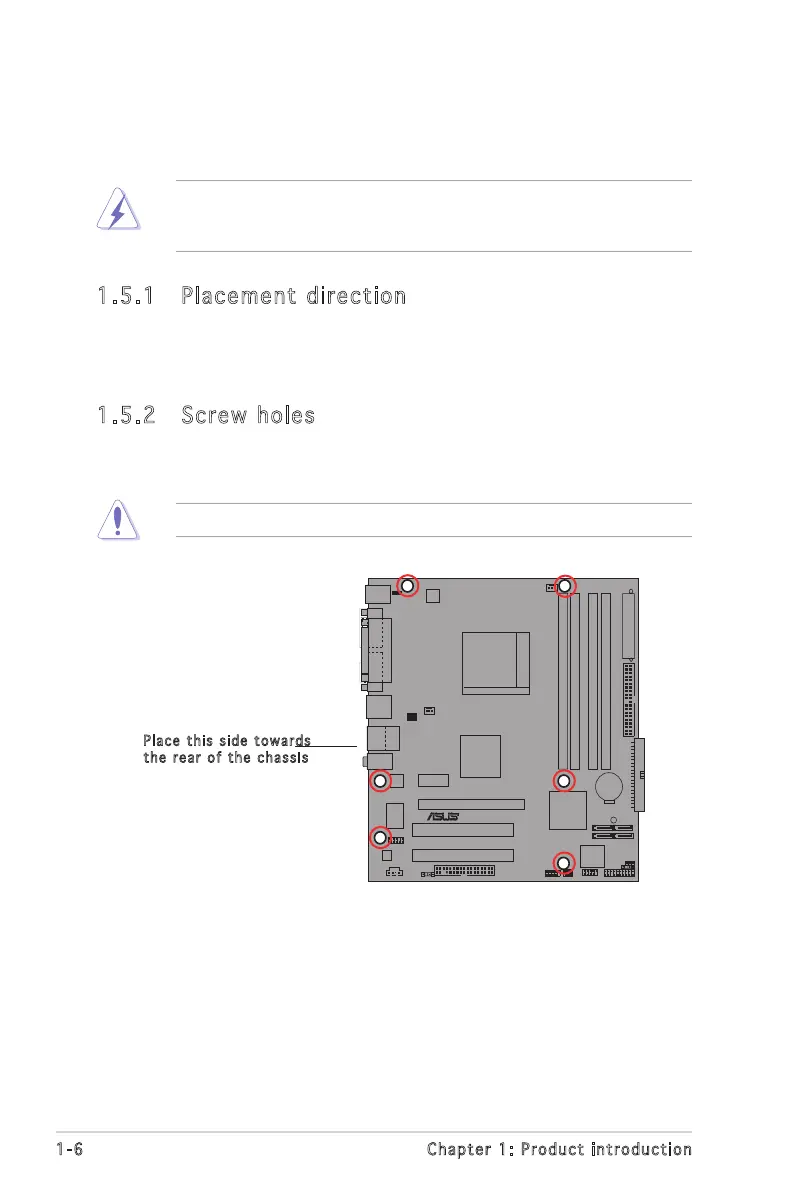

1.5.1 Placement direction
When installing the motherboard, make sure that you place it into the
chassis in the correct orientation. The edge with external ports goes to the
rear part of the chassis as indicated in the image below.
1.5.2 Screw holes
Place six (6) screws into the holes indicated by circles to secure the
motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Pl ace this side to war ds
th e r ear of the ch ass is
A8V-VM
R
