Asus A8V-VM User Manual

1-15ASUS A8V-VM

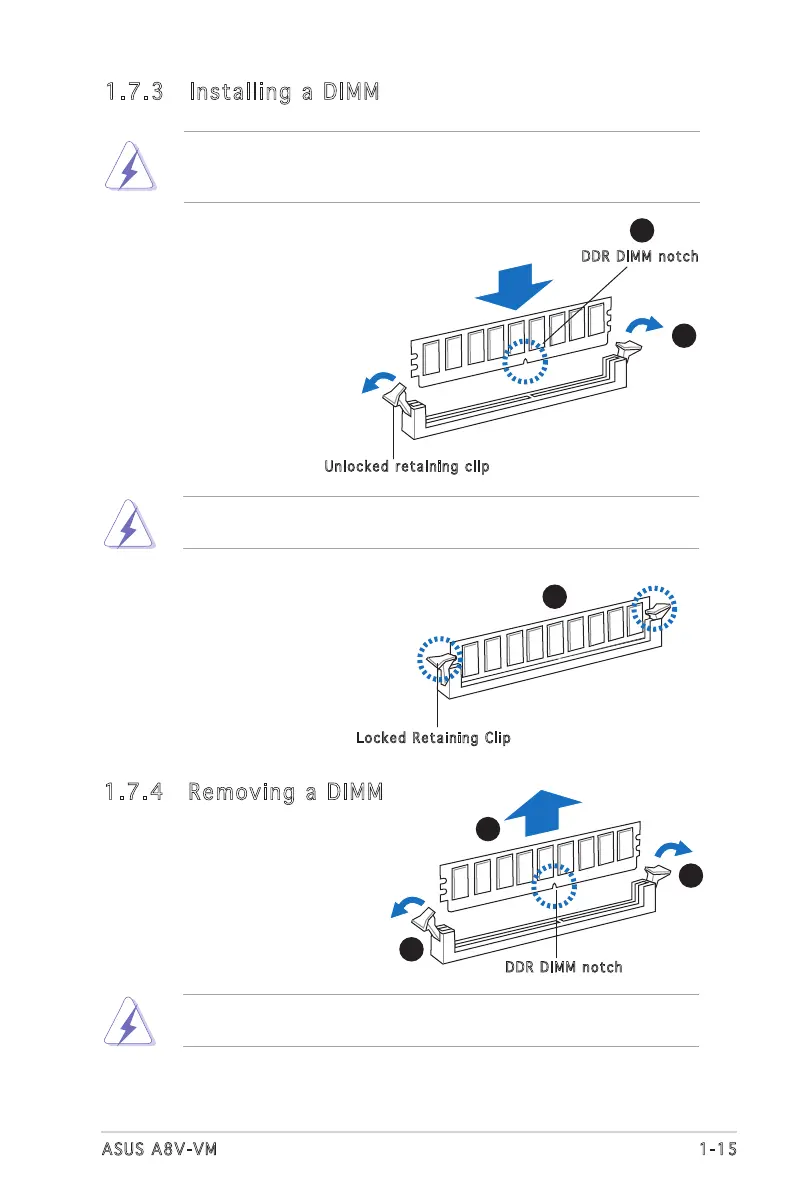

1.7.4 Removing a DIMM
Follow these steps to remove a DIMM.
1. Simultaneously press the
retaining clips outward to
unlock the DIMM.
2. Remove the DIMM from the socket.
SupporttheDIMMlightlywithyourngerswhenpressingtheretaining
clips.TheDIMMmightgetdamagedwhenitipsoutwithextraforce.
1.7.3 Installing a DIMM
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the DIMM
is properly seated.
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the
DIMM matches the break on the
socket.
Lo cke d Retaining C lip
Make sure to unplug the power supply before adding or removing DIMMs
or other system components. Failure to do so may cause severe damage
to both the motherboard and the components.
ADDRDIMMiskeyedwithanotchsothatittsinonlyonedirection.
DO NOT force a DIMM into a socket to avoid damaging the DIMM.
Un loc ked retaining cl ip
1
1
DD R D IMM notch
1
2
1
DD R D IMM notch
2
3
