1.10 Connectors

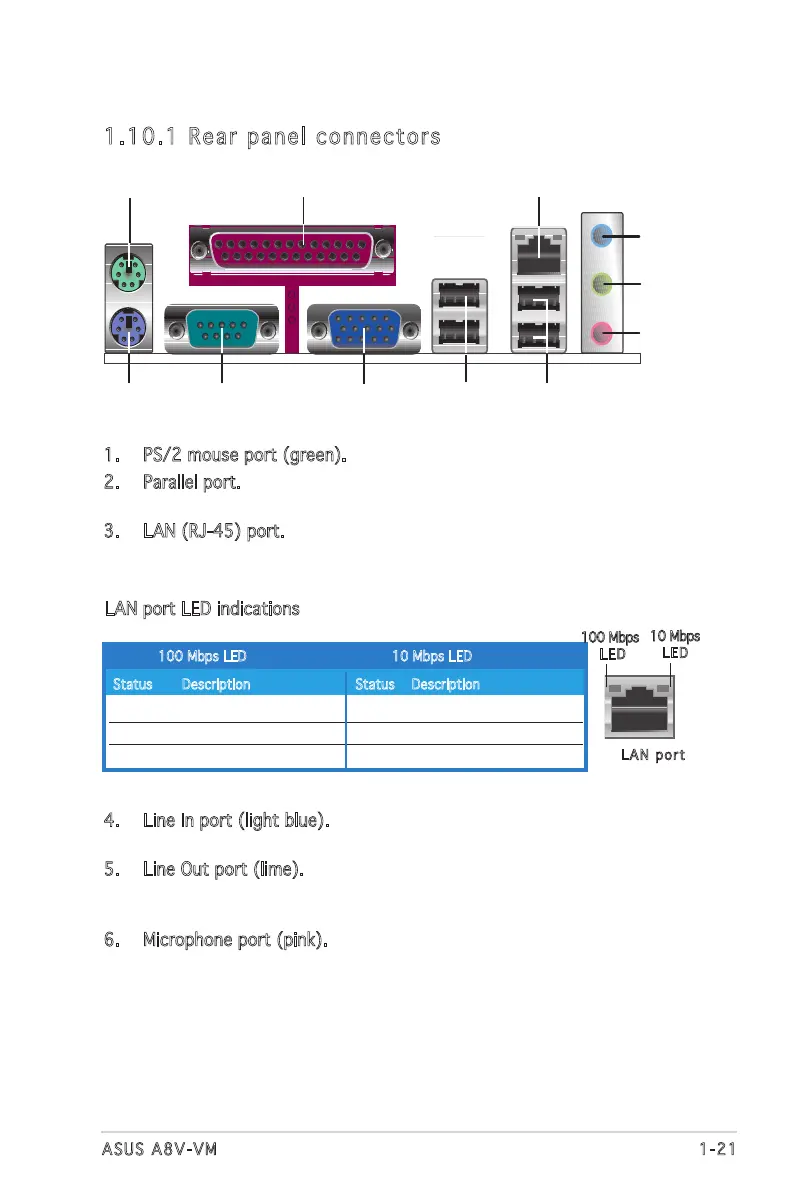

1.10.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3. LAN (RJ-45) port. This port allows Gigabit connection with a speed
of 100 Mbps to a Local Area Network (LAN) through a network hub.
Refer to the table below for the LAN port LED indications.
4. Line In port (light blue). This port connects a tape, CD, DVD player, or
other audio sources.
5. Line Out port (lime). This port connects a headphone or a speaker.
In4-channeland6-channelconguration,thefunctionofthisport
becomes Front Speaker Out.
6. Microphone port (pink). This port connects a microphone.
100 Mbps LED 10 Mbps LED
Status Description Status Description
Orange 100 Mbps connection OFF No link
OFF No link GREEN 10 Mbps connection
BLINKING Transmitting and receiving BLINKING Transmitting and receiving
LAN port LED indications
LA N p ort
10 Mbps
LE D
100 Mbps
L ED
1
11 7
2 3
10
4
5
6
9
8
