1.7 System memory
1.7.1 Overview
The motherboard comes with four 184-pin Double Data Rate (DDR) Dual
Inline Memory Module (DIMM) sockets.
Thefollowinggureillustratesthelocationofthesockets:
• Due to chipset resource allocation limitation in Windows XP 32-bit
operating system, the system may detect less than 3 GB of system
memory when you installed four 1 GB DDR memory modules.
• When using one DDR DIMM module, insert it into slot DIMM_B1 only.
• When using two DDR DIMM modules, insert them into DIMM_A1 and
DIMM_B1 slots.
• Due to CPU limitation, DIMM modules with 128Mb memory chips
or double-sided x16 memory chips are not supported on this
motherboard.
• Always install DIMMs with the same CAS latency. For optimum
compatibility, we recommend that you obtain memory modules from
thesamevendor.RefertotheDDR400QualiedVendorsListonthe
next page for details.
1.7.2 Memory configurations
You may install 128 MB, 256 MB, 512 MB, and 1 GB unbuffered ECC or
non-ECCDDRDIMMsintotheDIMMsocketsusingthememoryconguration
in this section.

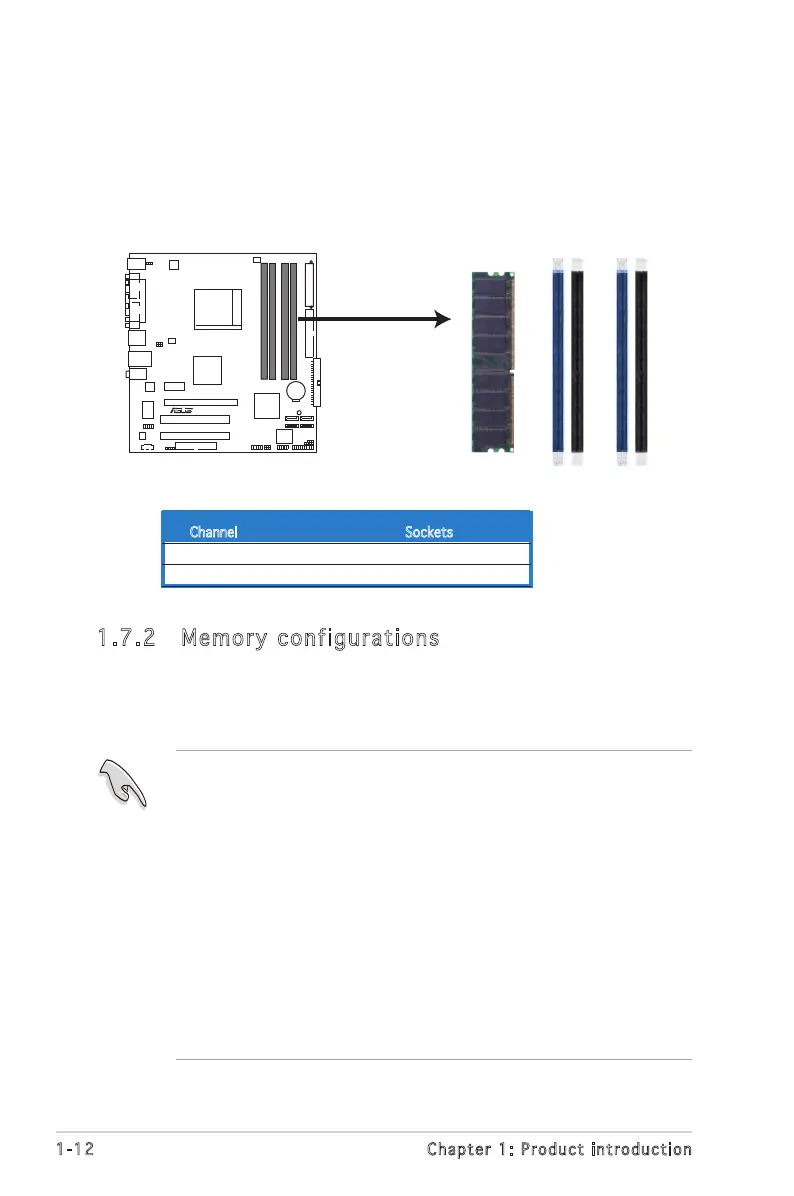

A8V-VM 184-pin DDR DIMM Sockets
A8V-VM
R
DIMM_A1
DIMM_A2 DIMM_B1
DIMM_B2
Channel Sockets
Channel 1 DIMM_A1 and DIMM_B1
Channel 2 DIMM_A2 and DIMM_B2
