Asus A8V-VM User Manual

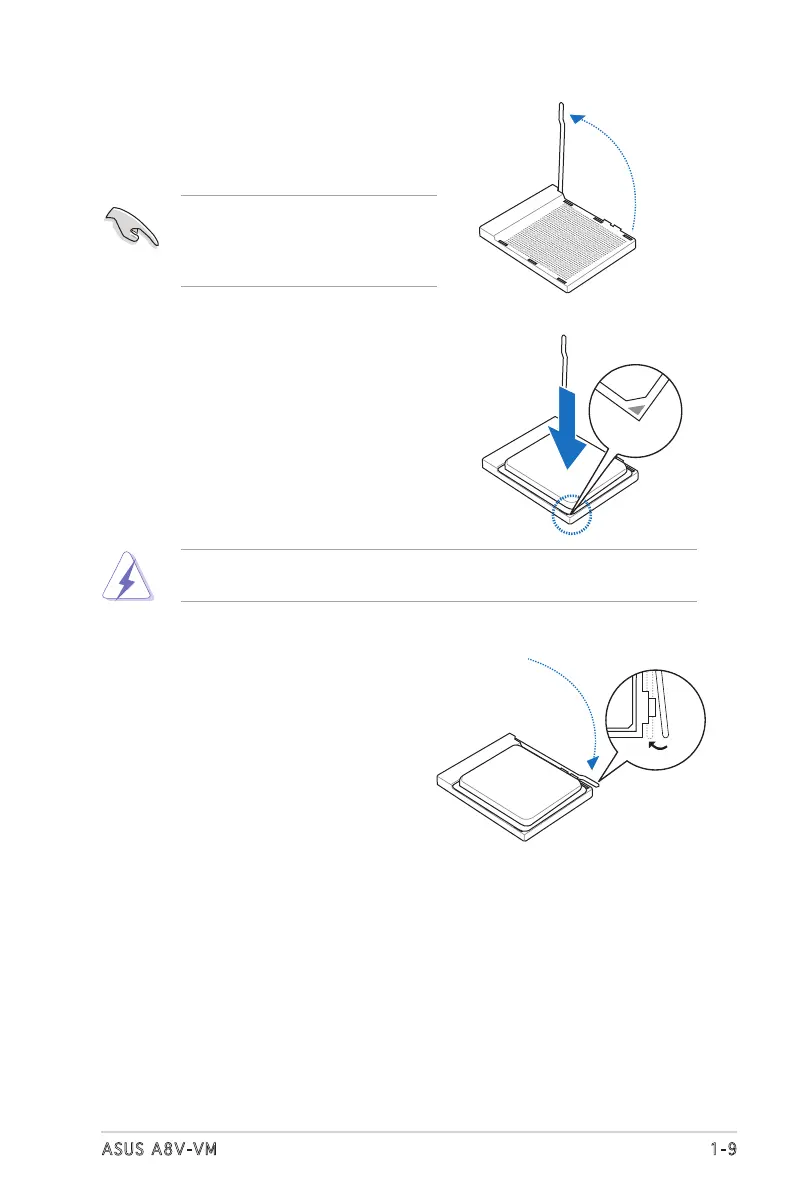

1-9ASUS A8V-VM
3. Position the CPU above the socket
such that the CPU corner with the
gold triangle matches the socket
corner with a small triangle.
4. Carefully insert the CPU into the
socketuntilittsinplace.
2. Unlock the socket by pressing the
lever sideways, then lift it up to a
90°-100° angle.
Make sure that the socket lever
is lifted up to 90°-100° angle,
otherwisetheCPUdoesnottin
completely.
TheCPUtsonlyinonecorrectorientation.DONOTforcetheCPUinto
the socket to prevent bending the pins and damaging the CPU!
5. When the CPU is in place, push down
the socket lever to secure the CPU.
The lever clicks on the side tab to
indicate that it is locked.
