8. Front panel audio connector (10-1 pin FP_AUDIO)
This is an interface for the front panel audio cable that allows
convenient connection and control of audio devices.
9. GAME/MIDI connector (16-1 pin GAME)
This connector supports a GAME/MIDI module. If a GAME/MIDI
module is available, connect the GAME/MIDI cable to this connector.
The GAME/MIDI port on the module connects a joystick or a game pad
for playing games, and MIDI devices for playing or editing audio files.
A8V
R

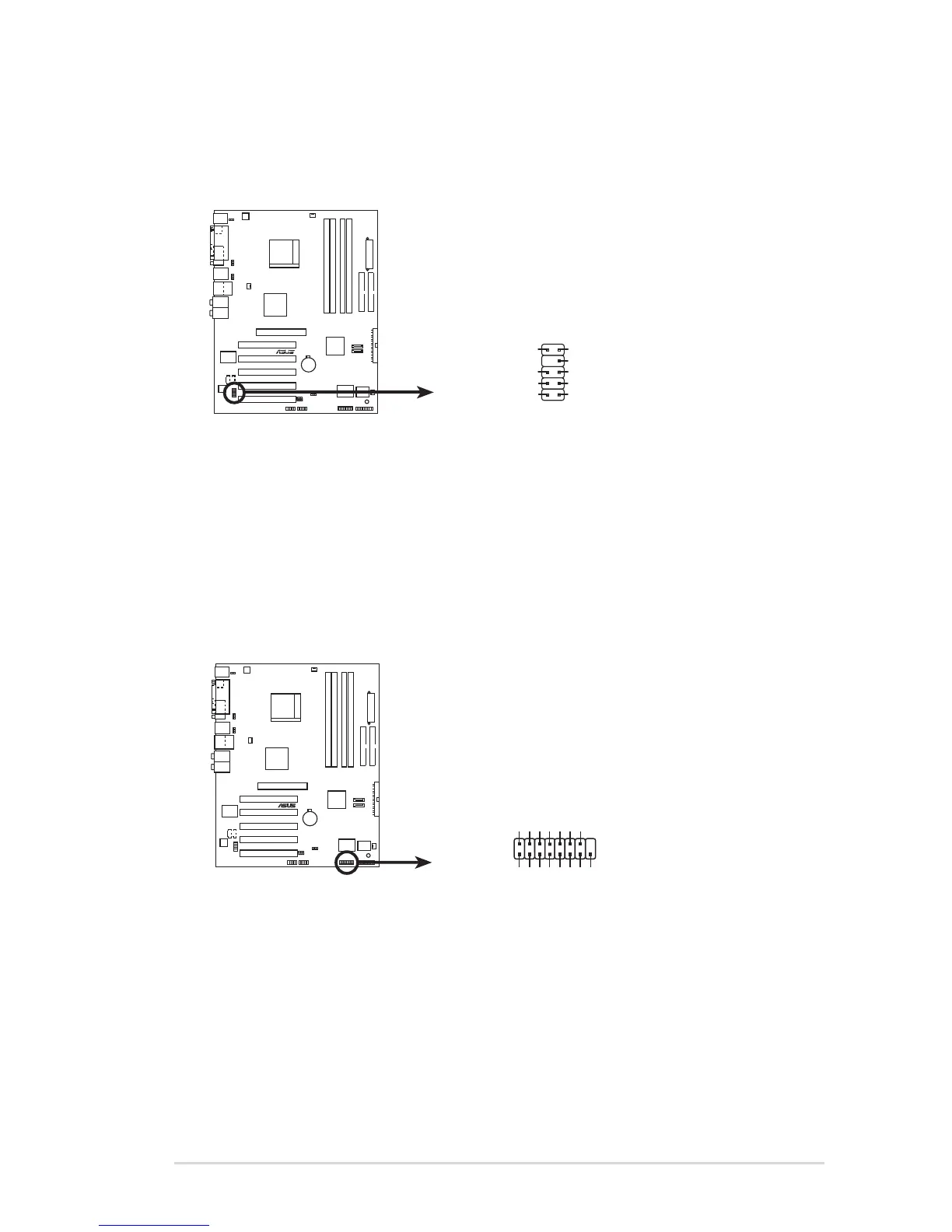

A8V Front panel audio connector
FP_AUDIO
BLINE_OUT_L
MIC2
Line out_R
Line out_L
BLINE_OUT_R
NC
MICPWR
+5VA
AGND
A8V
®
A8V Game connector
GAME
+5V +5V
J2B1 J2CX MIDI_OUT J2CY J2B2 MIDI_IN
J1B1
J1CX
GND GND
J1CY
J1B2
+5V
