Chapter 2 – Hardware Information 22
Maker Board UP Squared Pro 7000
UPN-ADLN01

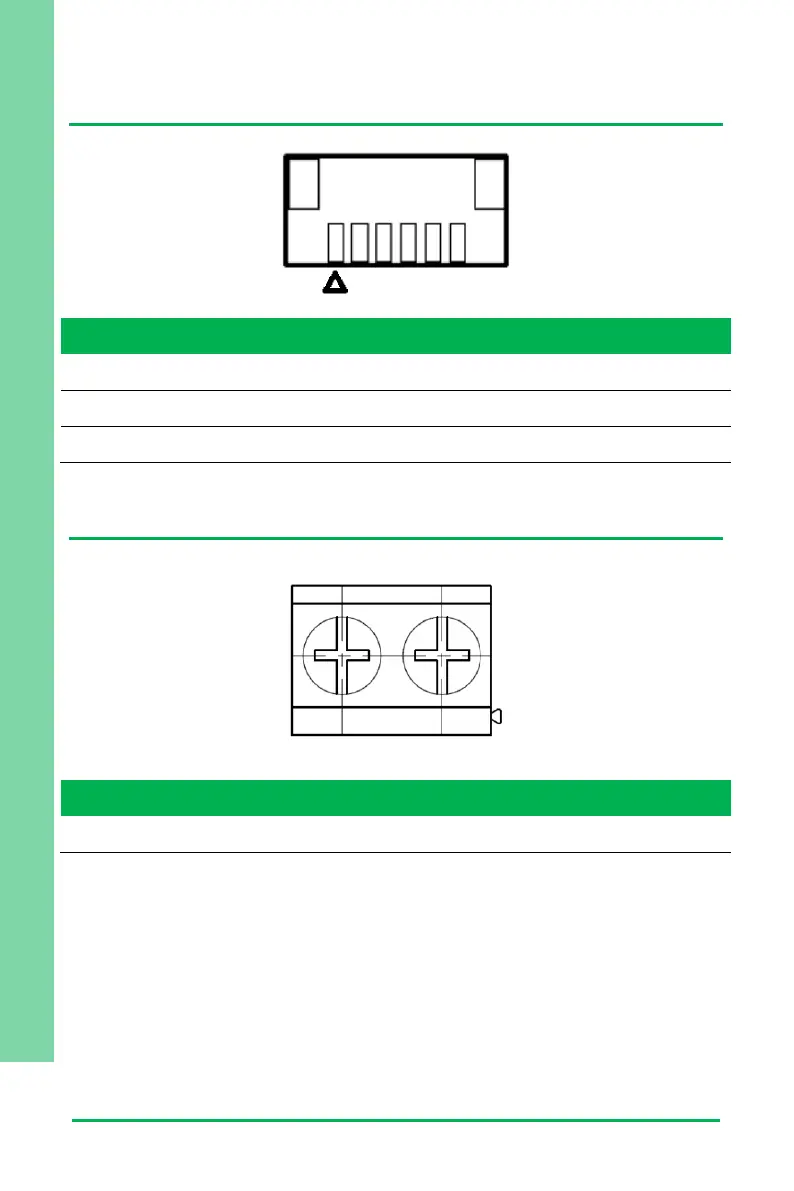

2.3.18 Front Panel 1x6P Wafer (CN21)
Pin
Signal
Pin
Signal
1
GND
2
RESET
3
GND
4
POWER S/W
5
GND
6
+5V
2.3.19 DC Terminal Block (Optional with Colay) (CN22)
Pin
Signal
Pin
Signal
1
DC_IN
2
GND
