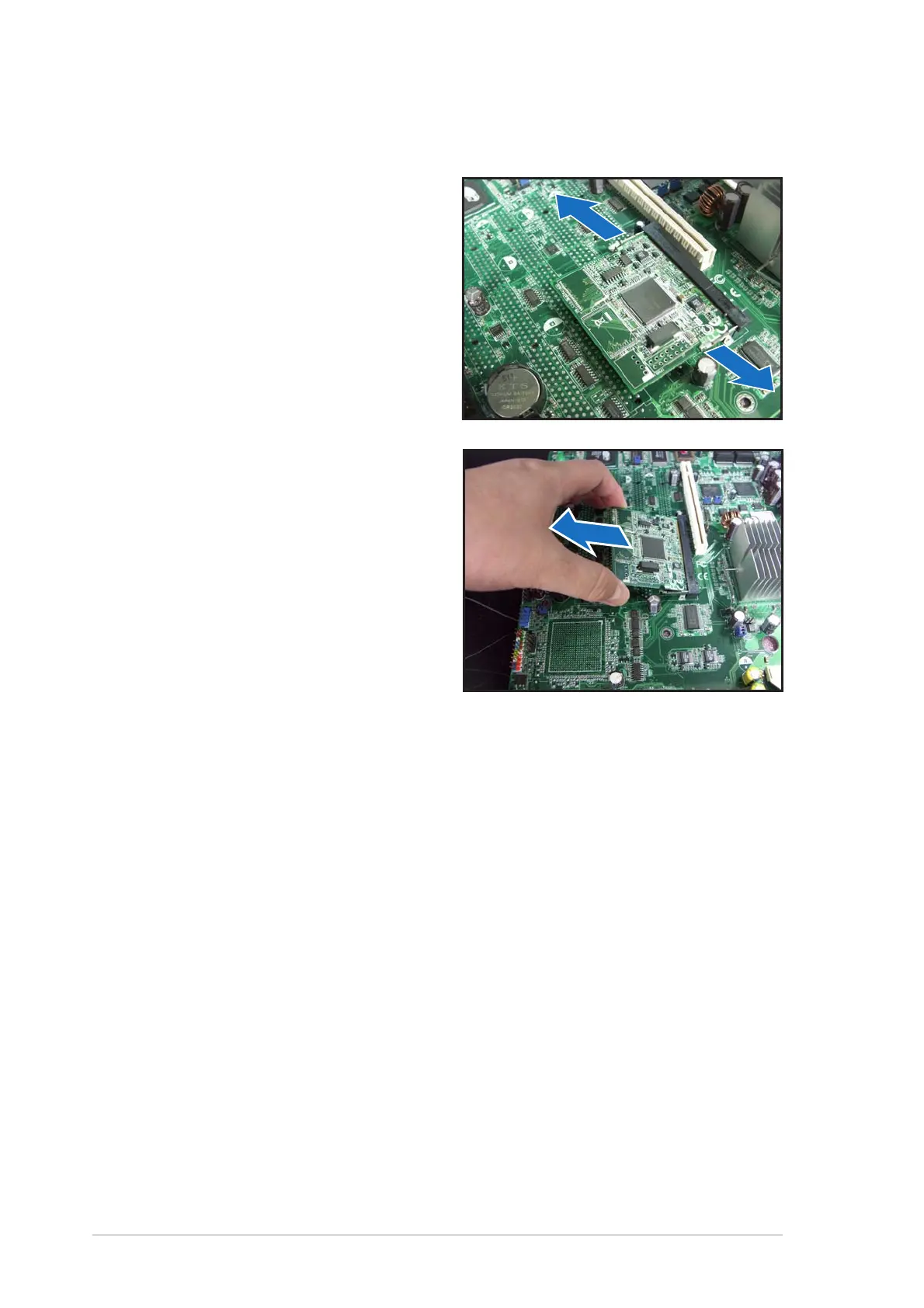

To uninstall the board:
1. Simultaneously push the BMC
socket retaining clips outward
until the board tilts up.
2. Carefully pull the board out
from the BMC socket, then set
aside.
