Asus B85-PRO - Layout Contents; Ddr3 DIMM Slots

ASUS B85-PRO / B85-PLUS
1-3
B85-PLUS
PCIEX16_1
PCIEX16_2
PCIEX1_1
PCIEX1_2
ASM
1083
PCI1
PCI2
PCI3
USB1112 USB1314
AAFP
EATXPWR
CPU_FAN
CHA_FAN2
BATTERY
Super
I/O
Realtek
ALC887
RTL
8111G
KBMS
DVI_VGA
128Mb
BIOS
SB_PWR
CLRTC
20.8cm(8.2in)
Intel
®
B85
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
SATA6G_3SATA6G_4
PANEL
SATA_5
SATA6G_1SATA6G_2
SATA_6
AUDIO
LAN_USB34
USB3_56
USB910
CHA_FAN1
SPDIF_OUT
30.5cm(12.0in)
LGA1150
DIGI
+VRM
COM
EATX12V
USB3_12
32 31 4 5
10
13
11
12
2
3
8
7
6
9
6
14
B85-PLUS

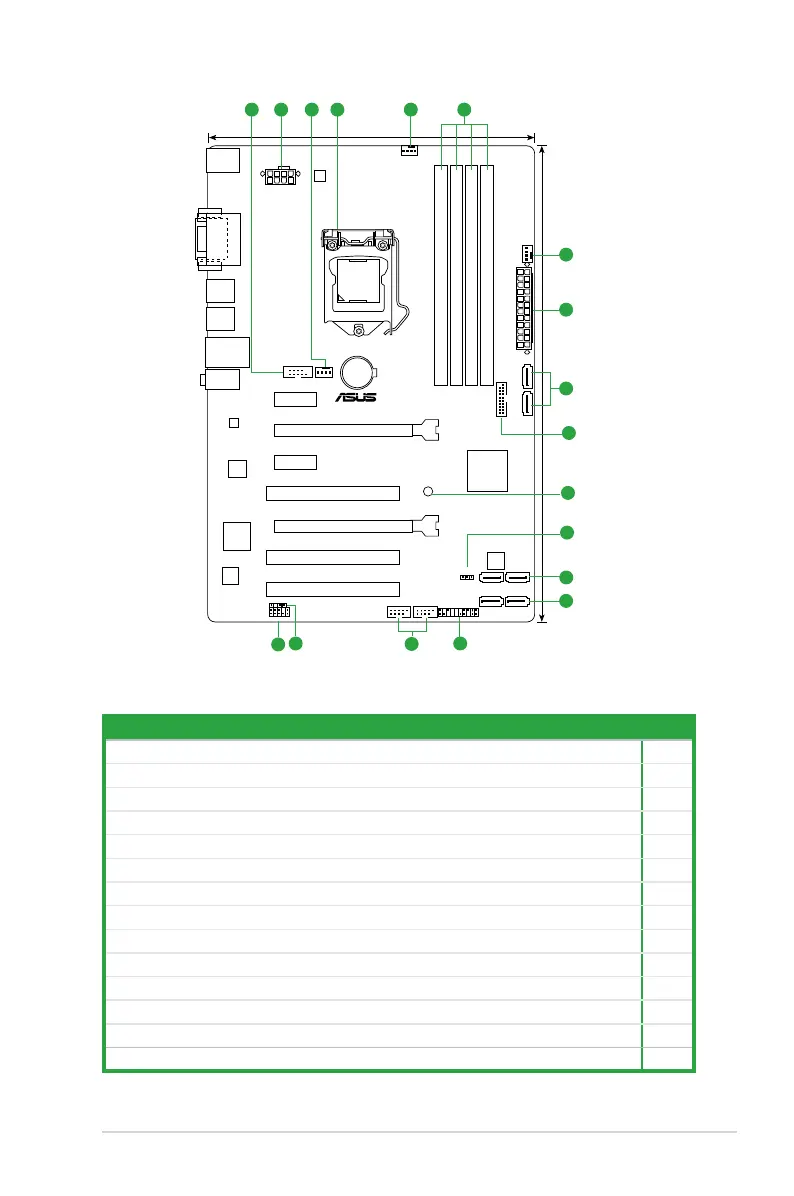

1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. Serial port connectors (10-1 pin COM) 1-19
2. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 1-14
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN1/2) 1-16
4. Intel
®
LGA1150 CPU socket 1-4
5. DDR3 DIMM slots 1-7
6. Intel
®
B85 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~4 [yellow]) 1-17
7. USB 3.0 connector (20-1 pin USB3_12) 1-16
8. Onboard LED (SB_PWR) 1-19
9. Clear RTC RAM (3-pin CLRTC) ) 1-10
10. Intel
®
B85 Serial ATA 3.0Gb/s connectors (7-pin SATA_1~2 [dark brown]) 1-17
11. System panel connector (20-8 pin F_PANEL) 1-18
12. USB 2.0 connectors (10-1 pin USB11~14) 1-15
13. Digital audio connector (4-1 pin SPDIF_OUT) 1-14
14. Front panel audio connector (10-1 pin AAFP) 1-15
