Chapter 1: Product introduction
Chapter 1
 
These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard
disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you

onboard controller.
• These connectors are set to AHCI mode by default. In AHCI mode, you can connect
Serial ATA boot/data hard disk drives to these connectors. If you intend to create a
Serial ATA RAID set using these connectors, set the type of the SATA connectors in
the BIOS to [RAID]. See section  for details.
• You must install Windows
®
XP Service Pack 3 or later version before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP3 or later version.
• When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to
[AHCI]. See section  for details.
SATA6G_1 SATA6G_2
GND RSATA_RXP1 RSATA_RXN1 GND RSATA_TXN1 RSATA_TXP1 GND GND RSATA_RXP2 RSATA_RXN2 GND RSATA_TXN2 RSATA_TXP2 GND
SATA6G_3 SATA6G_4
GND RSATA_RXP3 RSATA_RXN3 GND RSATA_TXN3 RSATA_TXP3 GND GND RSATA_RXP4 RSATA_RXN4 GND RSATA_TXN4 RSATA_TXP4 GND
SATA6G_5 SATA6G_6
GND RSATA_RXP5 RSATA_RXN5 GND RSATA_TXN5 RSATA_TXP5 GND
SATA6G_7
GND
RSATA_TXP7
RSATA_TXN7
GND
RSATA_RXN7
RSATA_RXP7
GND
GND RSATA_RXP6 RSATA_RXN6 GND RSATA_TXN6 RSATA_TXP6 GND
F2A85-M PRO

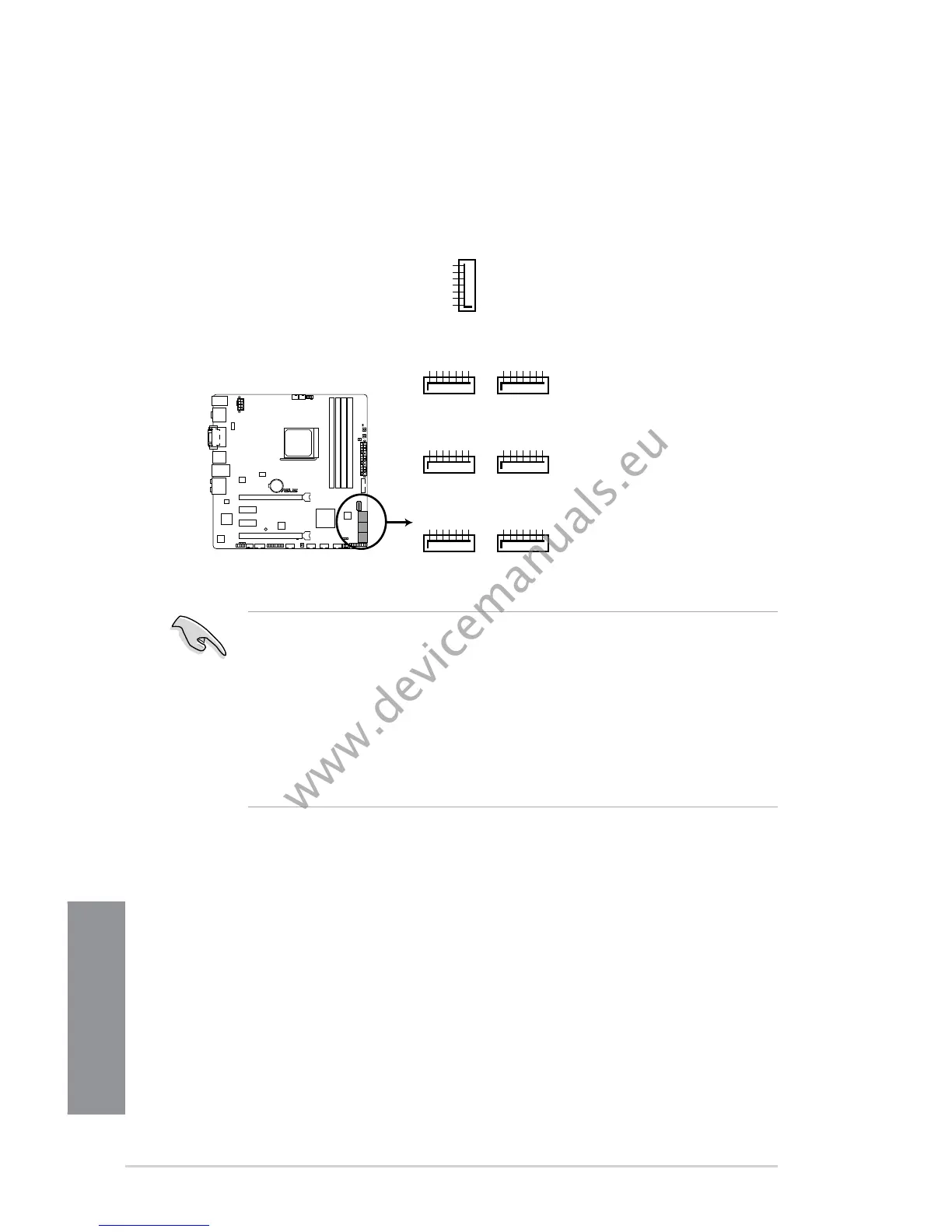

F2A85-M PRO SATA 6.0Gb/s connectors
