Product introduction
1
Motherboard overview
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
tostaticelectricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switchedofforthepowercordisdetachedfromthepowersupply.Failuretodoso
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
• Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodoso
cancauseyouphysicalinjuryanddamagetomotherboardcomponents.

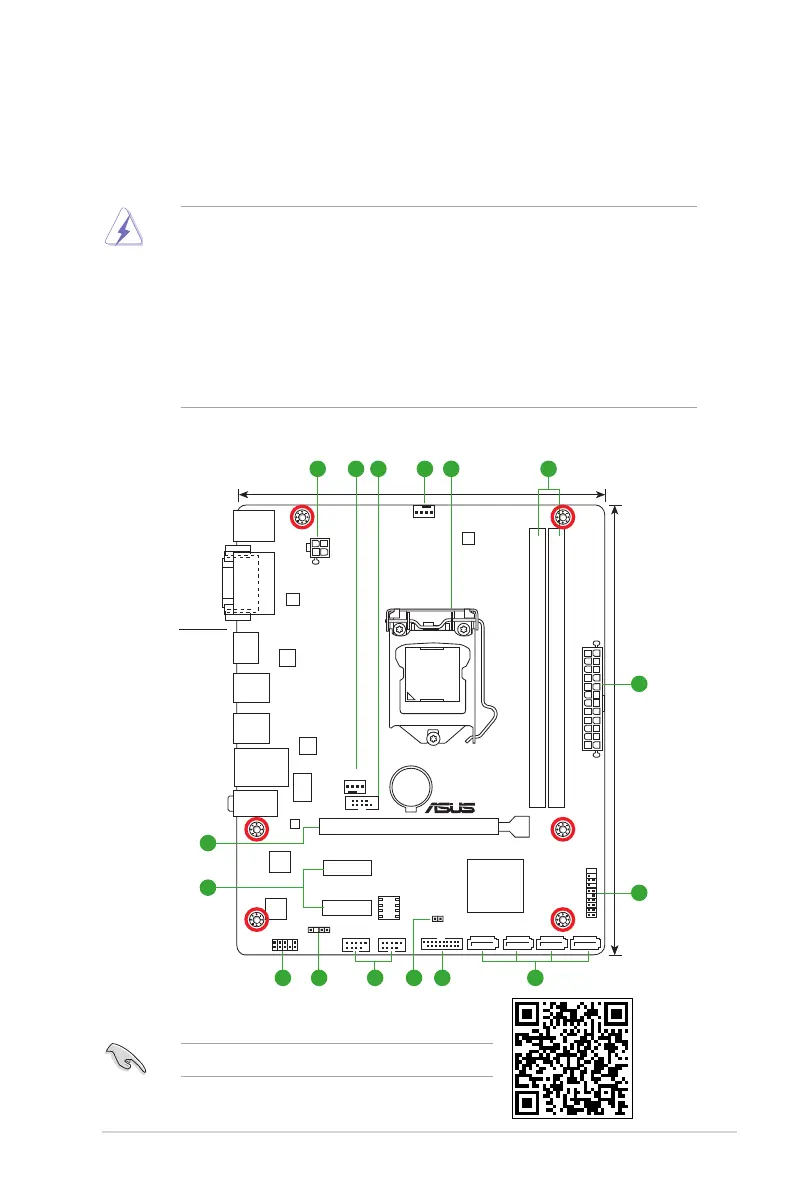

Place this
side towards
the rear of the
chassis
H110M-PLUS
PCIEX16
PCIEX1_1
PCIEX1_2
CLRTC
SPDIF_OUT
USB3_12
AAFP
COM
ATX12V
EATXPWR
CPU_FAN
CHA_FAN1
LANGuard
BATTERY
Super
I/O
ASM
1142
ASM
1442K
RTD
2168
ALC
887
Realtek
8111H
DIGI
+VRM
LGA1151
Intel
®
H110
DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2 (64bit, 288-pin module)
SATA6G_2SATA6G_1 SATA6G_3 SATA6G_4
128Mb
BIOS
22.6cm(8.9in)
18.6cm(7.3in)
AUDIO
LAN_USB56
USB3.1
_E12
USB3_34
HDMI
KBMS
DVI VGA
PANEL
USB78USB910
321 542
1
789
6
1012
13
11
14
ScantheQRcodetogetthedetailedpindenitions.
