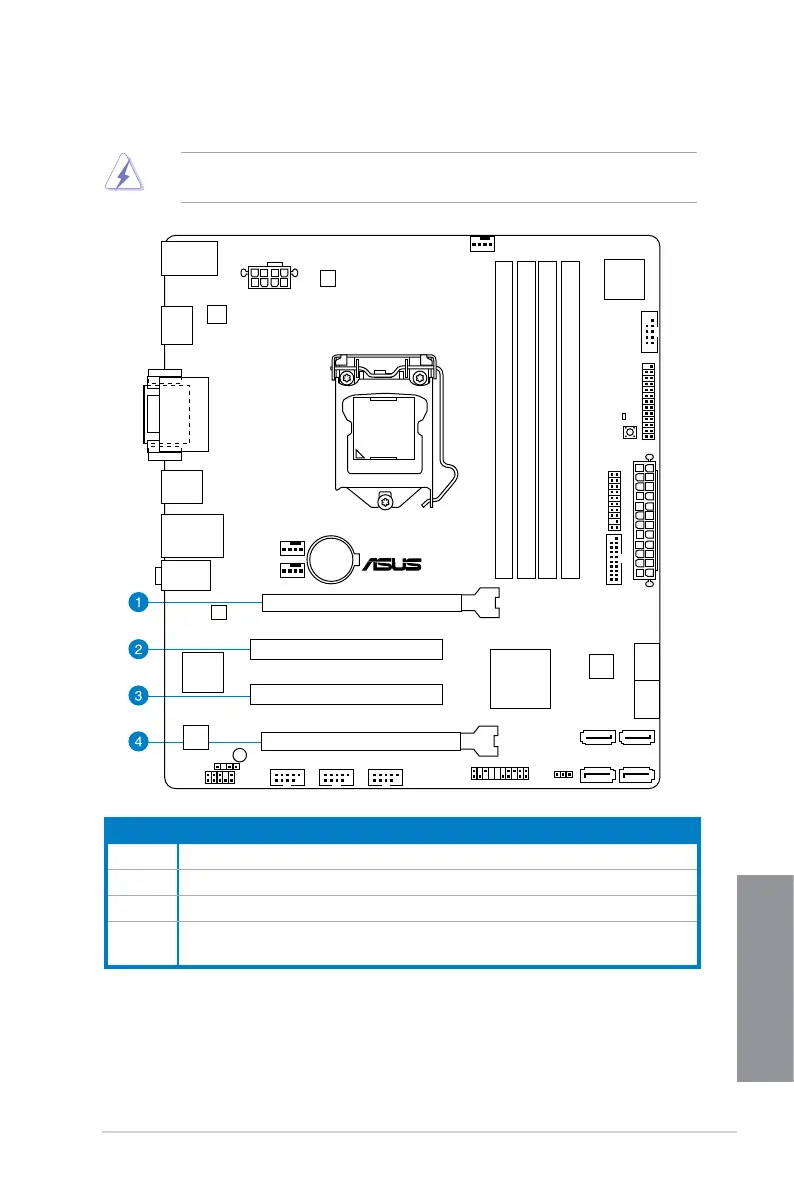

1.2.5 Expansion slots
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
Slot No. Slot Description
1 PCIe 3.0/2.0 x16_1 slot (at x16 mode)
2 PCI_1 slot
3 PCI_2 slot
4 PCIe 2.0 x16_2 slot (run at x4 mode, compatible with PCIe x1 and x4 devices)
H87M-PLUS
PCIEX16_1
PCIEX16_2
PCI1
PCI2
EATX12V
