ASUS Maximus IV Extreme 3-37
 

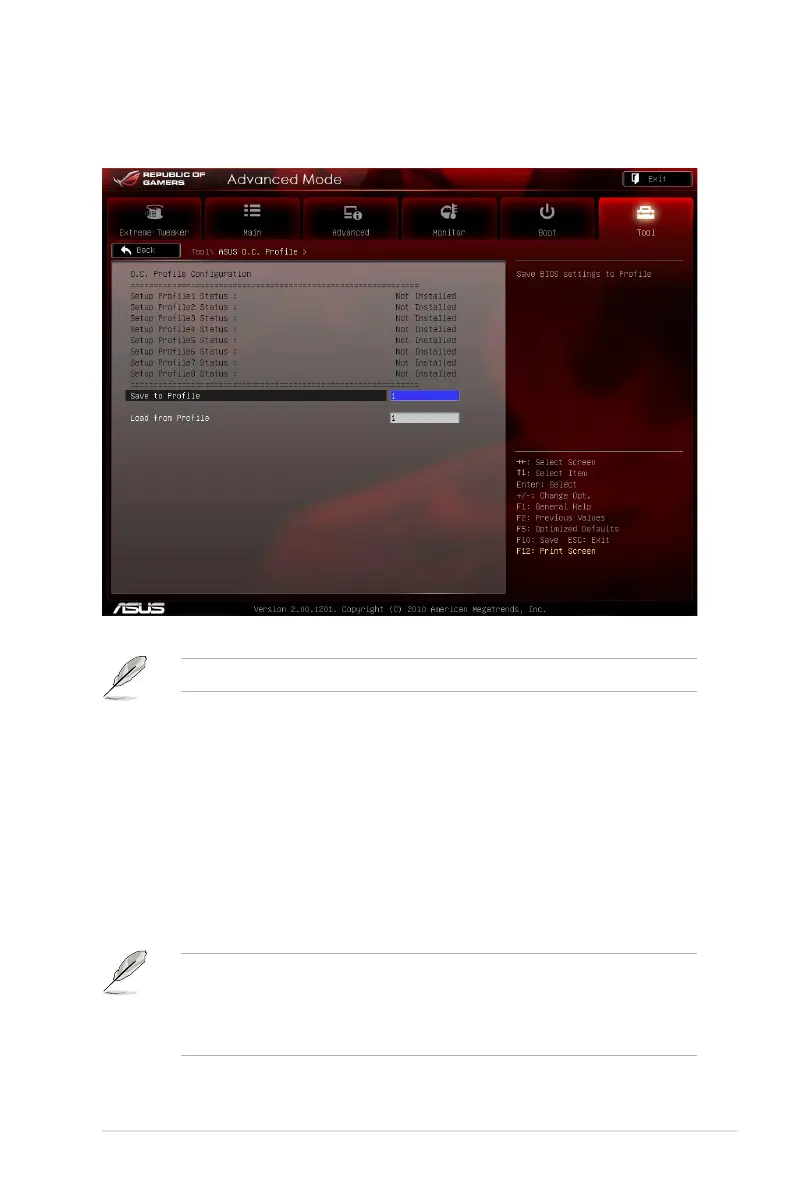

This item allows you to store or load multiple BIOS settings.
The items show Not Installed if no prole is created.
• DO NOT shut down or reset the system while updating the BIOS to prevent
the system boot failure!
• We recommend that you update the BIOS le only coming from the same
memory/CPU conguration and BIOS version.

Allows you to save the current BIOS settings to the BIOS Flash, and create a
prole. Key in a prole number from one to eight, press <Enter>, and then select
Yes.

Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in theKey in the
prole number that saved your BIOS settings, press <Enter>, and then select Yes.

Asus Maximus IV Extreme Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600, 1866, 2133, 2600 MHz
Processor socket	LGA 1155 (Socket H2)
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Number of SATA connectors	8
Number of SATA II connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
Audio chip	Realtek ALC889
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Compatible operating systems	Win
On-board graphics card	No
Parallel processing technology support	3-Way SLI
PCI Express slots version	2.0
RAID levels	0, 1, 5, 10
BIOS type	EFI
ACPI version	2.0a
BIOS memory size	32 Mbit
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Controller interface type	Marvell 9182 PCIe SATA6Gb/s
Controller 2nd interface type	JMicron 362
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Depth	269 mm
Width	305 mm
