Asus MAXIMUS IX APEX - Chapter 1: Product Introduction; PCIe Lane and BIOS Switches

1-12
Chapter 1: Product Introduction
Chapter 1

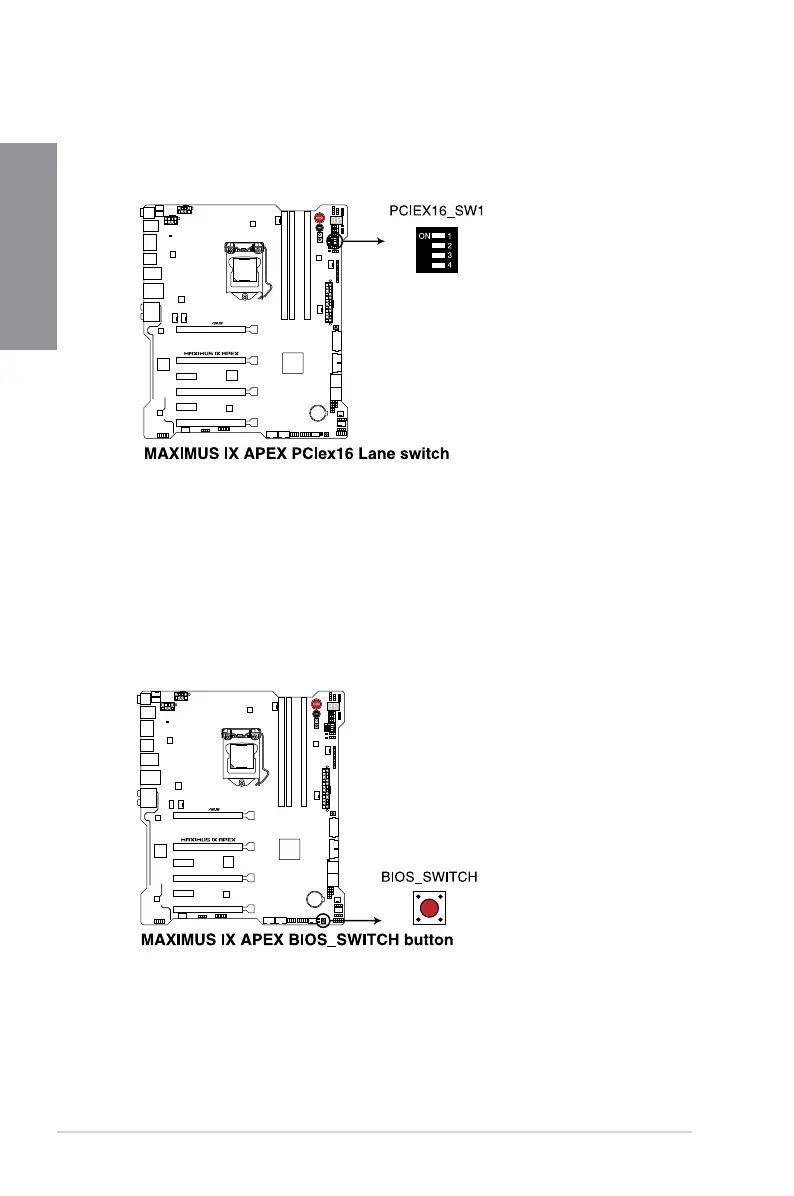

6. PCIe x16 Lane switch (PCIEX16_SW1)
TheseslideswitchesallowsyoutoenableanddisablethecorrespondingPCIex16
slots.WhenoneoftheinstalledPCIex16cardsisoutoforder,youcanusetheslide
switchtondthefaultyonewithoutremovingthecards.
7. BIOS Switch button (BIOS_SWITCH)
ThemotherboardcomeswithtwoBIOSchips.PresstheBIOSbuttontoswitchBIOS
andloaddifferentBIOSsettings.ThenearbyBIOS_LEDsindicatethecurrently
selectedBIOS.
