ASUS MAXIMUS IX CODE
1-25
Chapter 1

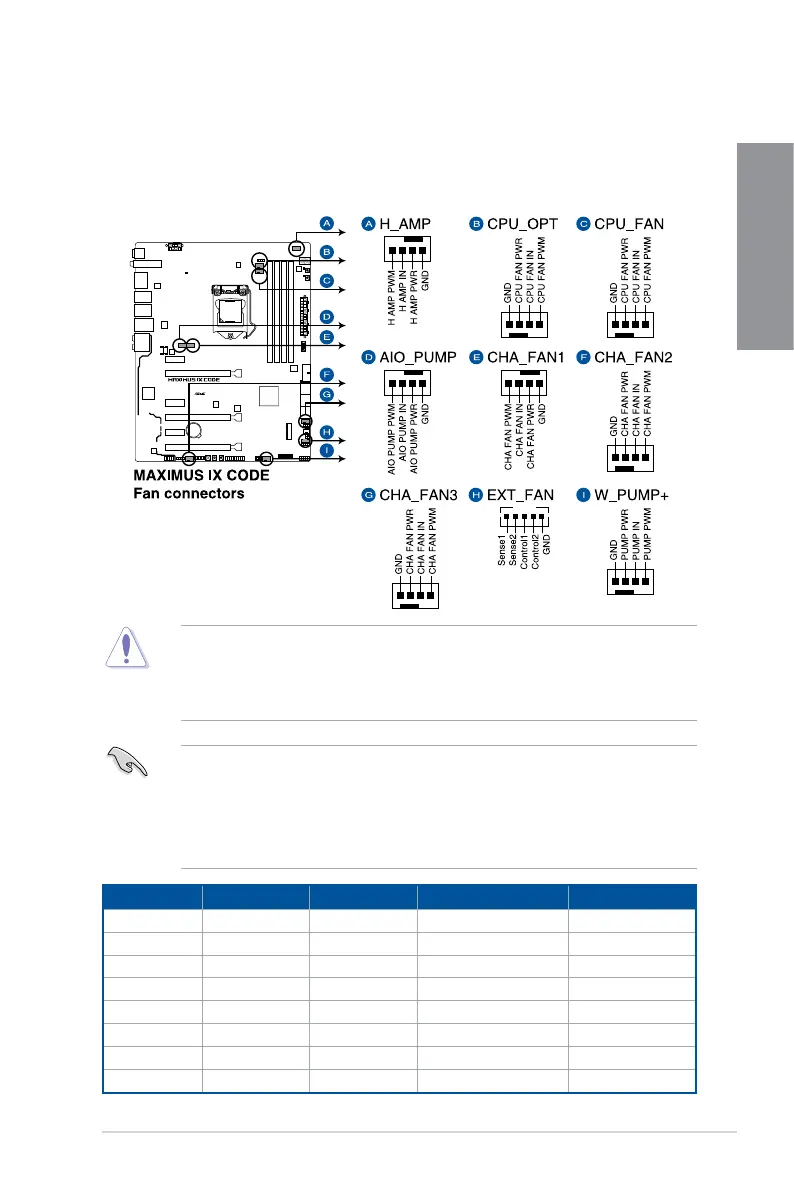

7. CPU, CPU optional, high amp, extension, water pump+, AIO pump, and chassis
fan connectors (4-pin CPU_FAN; 4-pin CPU_OPT; 4-pin H_AMP; 5-pin EXT_FAN;
4-pin W_PUMP+; 4-pin AIO_PUMP; 4-pin CHA_FAN1-3)
Connectthefancablestothefanconnectorsonthemotherboard,ensuringthatthe
blackwireofeachcablematchesthegroundpinoftheconnector.
• DONOTforgettoconnectthefancablestothefanconnectors.Insufcientairow
insidethesystemmaydamagethemotherboardcomponents.Thesearenotjumpers!
Donotplacejumpercapsonthefanconnectors!
• Ensuretofullyinsertthe4-pinCPUfancabletotheCPUfanconnector.
• ForbetterQ-Fanfunctions,werecommendusing4-pinPWMfanswhenyouconnect
powerfulfans(1Aorabove)ontotheH_AMP_FANconnector.
• EnsuretodisableQ-Fanfunctionsifyouwanttoconnectpowerful3-pinDCfans(1A
orabove)ontotheH_AMP_FANconnector.
• W_PUMP+functionsupportdependsonwatercoolingdevice.
Header Max. Current Max. Power Default Speed Shared Control
CPU_FAN 1A 12W Q-FanControlled A
CPU_OPT 1A 12W Q-FanControlled A
CHA_FAN1 1A 12W Q-FanControlled -
CHA_FAN2 1A 12W Q-FanControlled -
CHA_FAN3 1A 12W Q-FanControlled -
AIO_PUMP 1A 12W FullSpeed B
W_PUMP+ 3A 36W FullSpeed B
H_AMP 3A 36W Q-FanControlled -
