ASUS P3V4X User’s Manual 37
11. Wake-On-LAN Connector (3-pin WOL_CON)
The WOL_CON connector powers up the system when a wake-up packet or
signal is received from the network through an optional PCI-L101 LAN card.
IMPORTANT: This feature requires that the Wake-On-LAN is set to Enabled
(see 4.5.1 Power Up Control) and that your system has an ATX power supply
with at least 720mA +5V standby power.
R

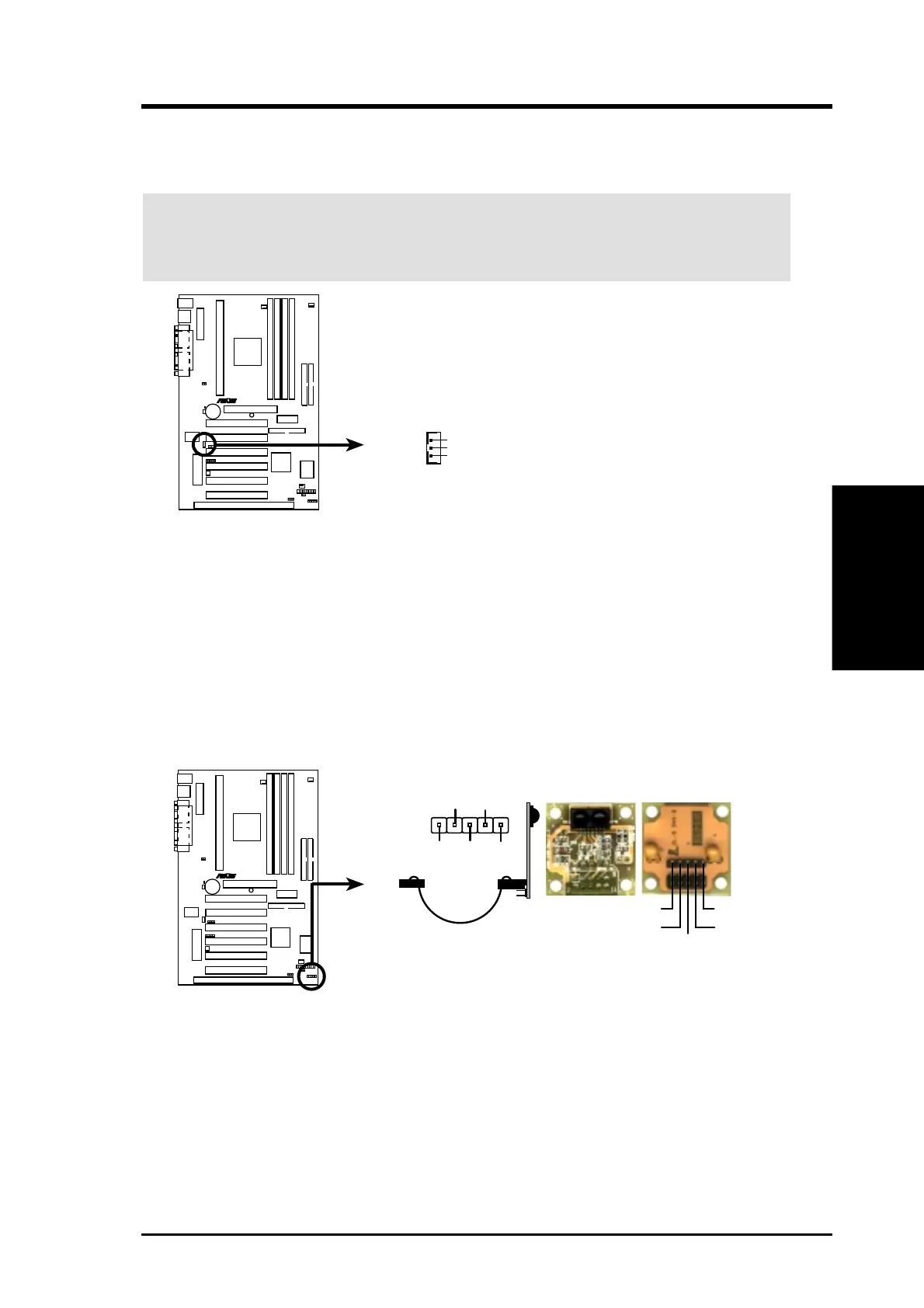

P3V4X
P3V4X Wake-On-LAN Connector
+5VSB
PME
Ground
WOL_CON
12. IrDA-Compliant Infrared Module Connector (5-pin IR)
This connector supports the optional wireless transmitting and receiving infrared
module. This module mounts to a small opening on system cases that support this
feature. You must also configure the setting through “UART2 Use Infrared” in
4.4.2 I/O Device Configuration to select whether UART2 is directed for use with
COM2 or IrDA. Use the five pins as shown on the Back View and connect a
ribbon cable from the module to the motherboard according to the pin definitions.
Front View
+5V
IRTX
IRRX
(NC)
GND
Back View
P3V4X Infrared Module Connector
For the infrared feature to be available,
you must connect the optional Infrared
(IrDA) module to the motherboard.
+5V
GND
IRTX
(NC)
IRRX
R
P3V4X
3. HARDWARE SETUP
Connectors
3. H/W SETUP
To Next Page
