ASUS P5B-MX/WiFi-AP 1-33
5. USB-Anschlüsse (10-1 pol. USB56)
Diese Anschlüsse sind für die USB 2.0-Ports vorgesehen. Verbinden Sie
USB/GAME-Modulkabel mit einem dieser Anschlüsse, und installieren Sie
das Modul an einer Steckplatzaussparung an der Rückseite des Gehäuses.
Diese USB-Anschlüsse entsprechen den USB 2.0-Spezi kationen, die eine
Verbindungsgeschwindigkeit von bis zu 480 Mbps unterstützen.
Verbinden Sie niemals ein 1394-Kabel mit dem USB-Anschluss, sonst wird das
Motherboard beschädigt!
6. Audioanschluss für optische Laufwerke (4-pol. CD)
Mit diesen Anschlüssen können Sie Stereo-Audiosignale von Quellen wie
CD-ROM-Laufwerken, dem TV-Tuner, oder MPEG-Karten empfangen.

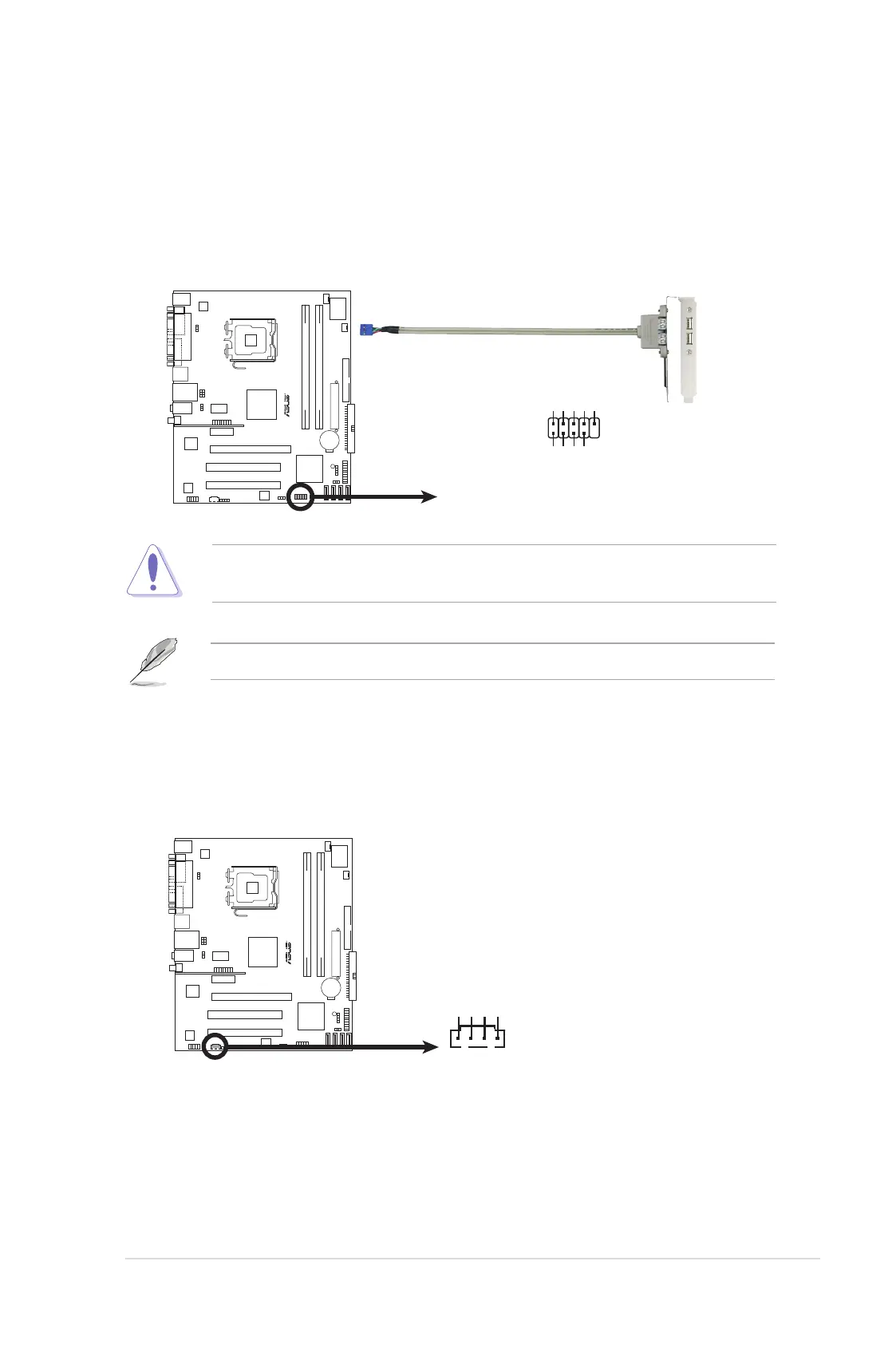

P5B-MX/WiFi-AP
R
P5B-MX/WiFi-AP Interner Audioanschluss
CD
(schwarz)
Rechter Audiokanal
Linker Audiokanal
Erde
Erde
P5B-MX/WiFi-AP
R
P5B-MX/WiFi-AP
USB 2.0-Anschluss
USB56
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
1
Das USB-Modul muss separat erworben werden.
