1-32 Kapitel 1: Produkteinführung

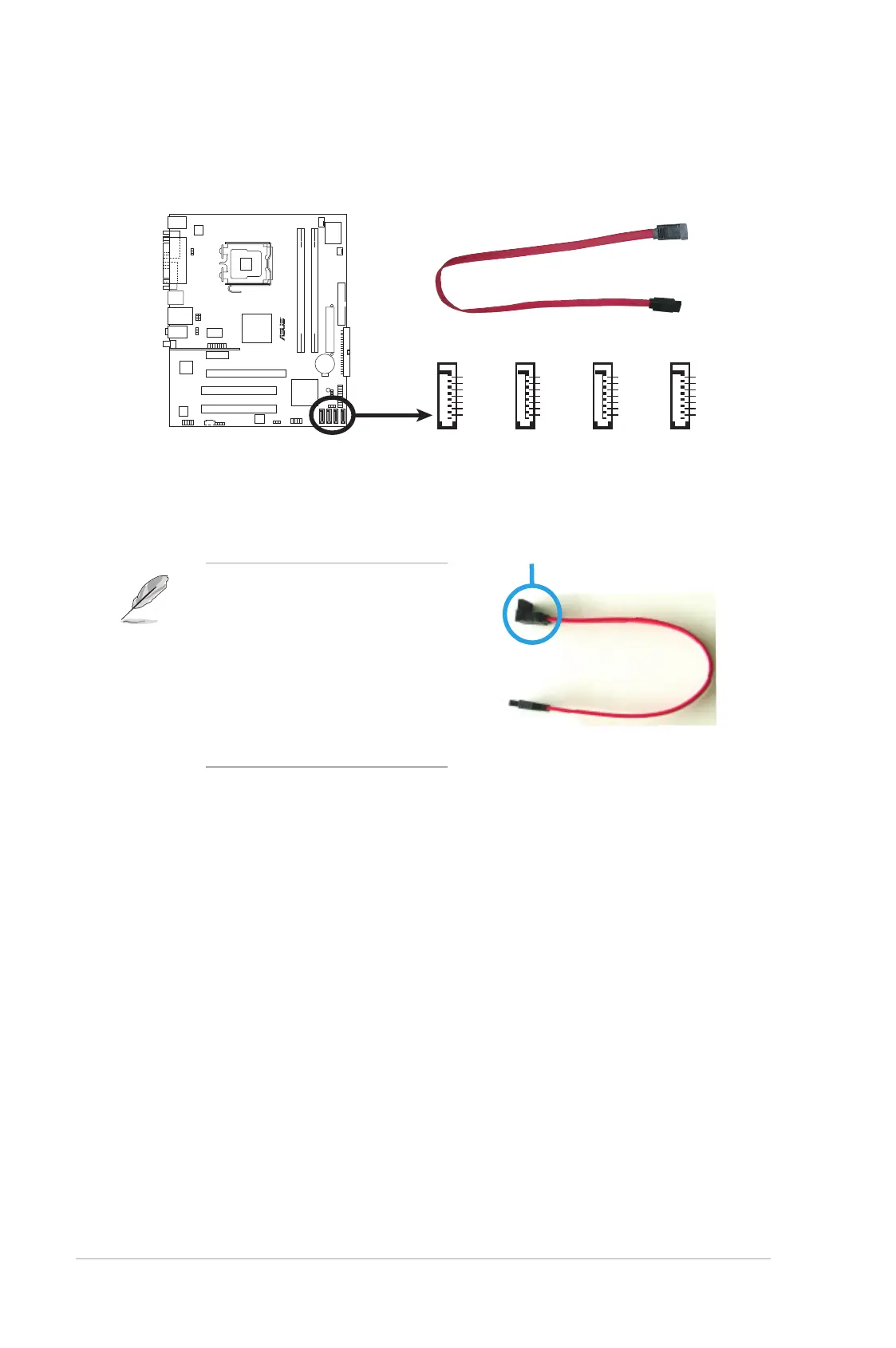

4. ICH7 Serial ATA-Anschlüsse (7-pol. SATA1, SATA2, SATA3, SATA4)
Diese Anschlüsse sind für die Serial ATA-Signalkabel von Serial ATA-
Festplatten vorgesehen.
P5B-MX/WiFi-AP
R
P5B-MX/WiFi-AP SATA-Anschluss
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA2
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA3
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN
4
RSATA_RXP4
GND
SATA4
Verbinden Sie das rechtwinklige
Ende des SATA-Signalkabels mit
dem SATA-Gerät. Sie können
auch das rechtwinklige Ende
des SATA-Signalkabels mit dem
integrierten SATA-Anschluss
verbinden, um mechanische
Konfl ikte mit großen Grafi kkarten
zu vermeiden.
Rechtwinkliges Ende

Asus P5B-MX WIFI-AP Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
Number of SATA connectors	4
Special features	ASUS WiFi-AP Solo ASUS CrashFree BIOS 2 ASUS EZ Flash ASUS Q-fan ASUS MyLogo 2
Manageability features	WfM 2.0, DMI, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update Anti Virus (OEM)
Graphics card	GMA 3000
Maximum graphics card memory	256 MB
Networking features	Gigabit Ethernet, WLAN
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	203 mm
Width	245 mm
