Asus P5GC - Front Panel Audio Connector; USB Port Connectors

ASUS P5GC 2-27

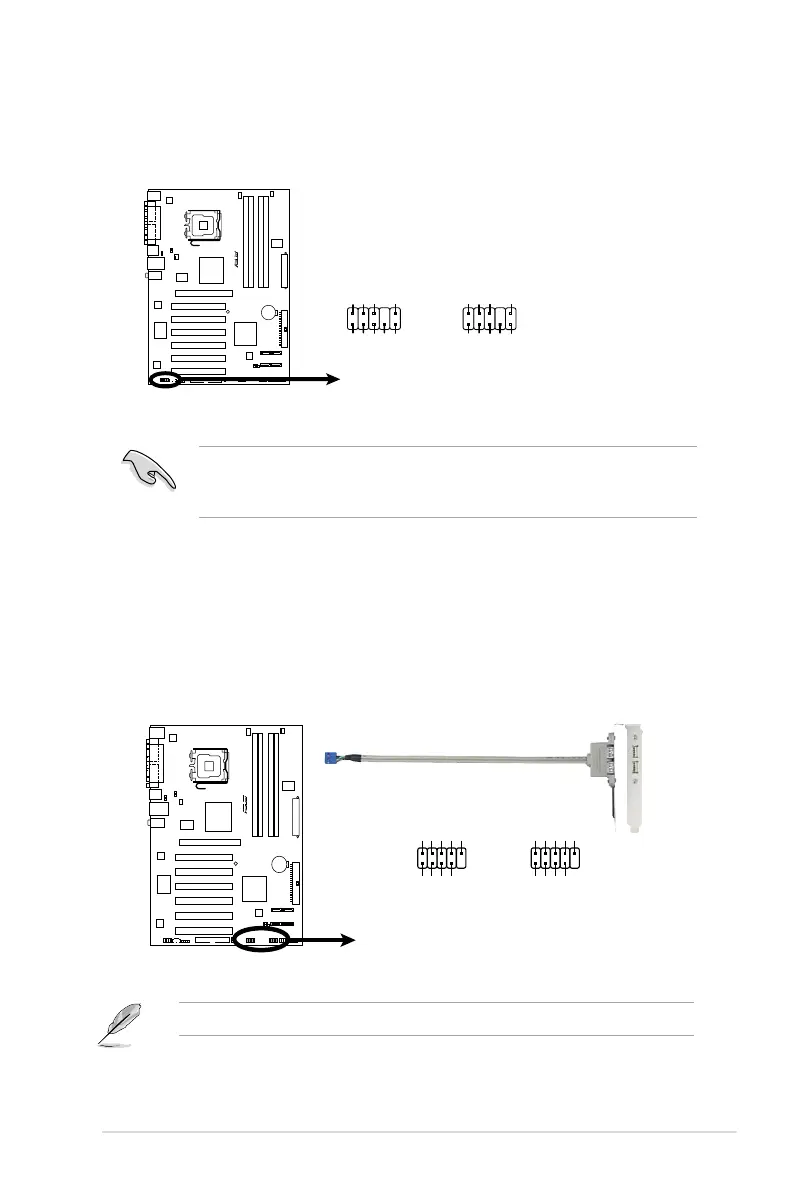

7. USB port connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the optional USB module
cable to any of these connectors, then install the module to a slot opening at
the back of the system chassis. These USB connectors comply with USB 2.0
specication that supports up to 480 Mbps connection speed.
P5GC USB 2.0 Connectors
P5GC
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
1
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
1
The USB cable is not included in this product.
6. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either HD Audio or legacy AC’97 audio standard.
P5GC Front Panel Audio Connector
P5GC
SENSE2_RETUR
PORT1L PORT1R PORT2R
SEBSE_SEND
PORT2L
SENSE1_RETUR PRESENSE# GND
AAFP
Legacy AC’97
compliant definition
NC
MIC2
Line out_R
Line out_L
NC
NC
MICPWR
NC AGND
HD-audio-compliant
pin definition
• We recommend that you connect a high-denition front panel audio
module to this connector to avail the motherboard high-denition audio
capability.
