Asus P5L-MX IPAT User Manual

2-8 Chapter 2: BIOS setup

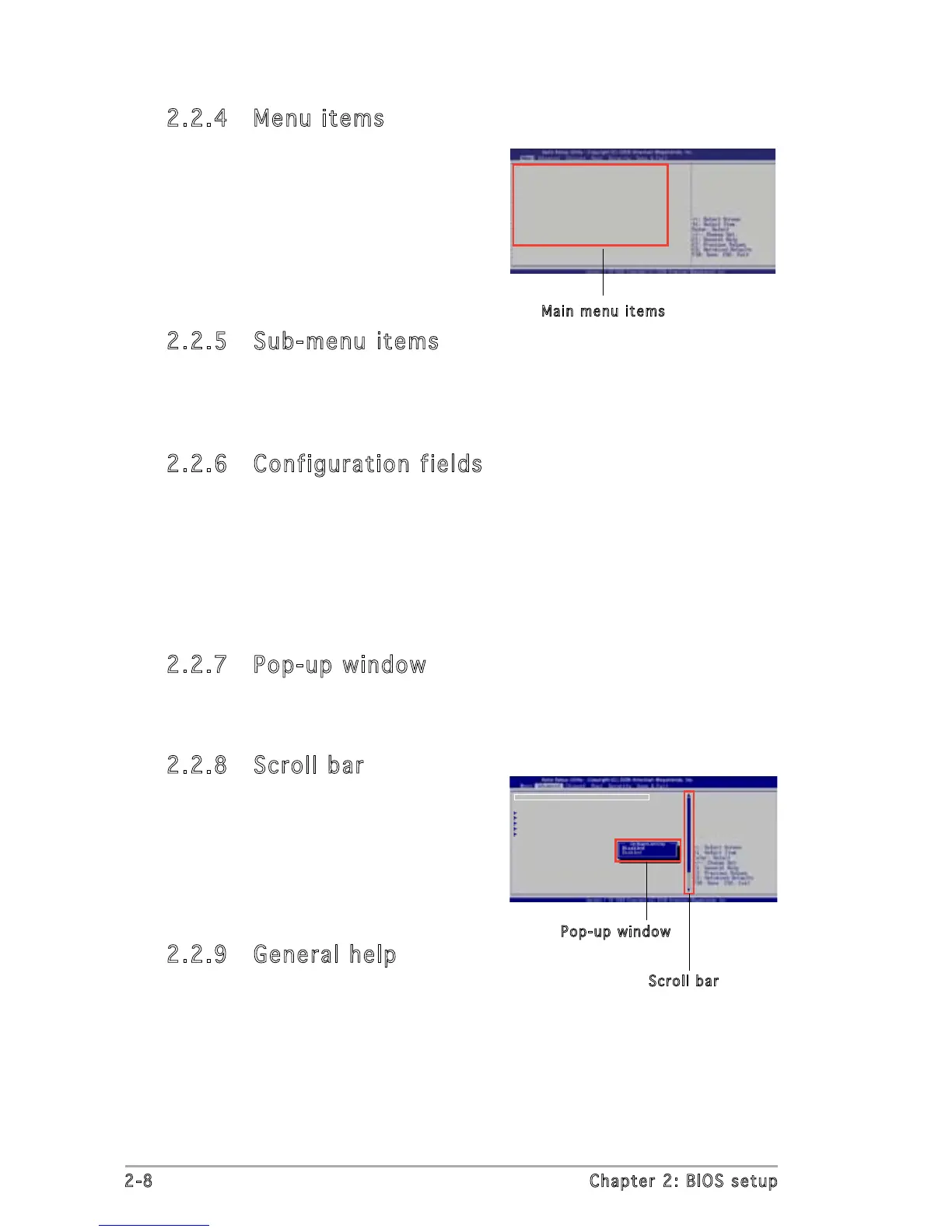

2.2.4 Menu items
The highlighted item on the menu bar
displays the specic items for that menu.
For example, selecting Main shows the
Main menu items.
The other items (Advanced, Chipset, Boot,
Security, and Save & Exit) on the menu
bar have their respective menu items.
2.2.5 Sub-menu items
A solid triangle before each item on any menu screen means that the
iteam has a sub-menu. To display the sub-menu, select the item and press
<Enter>.
2.2.6 Configuration fields
These elds show the values for the menu items. If an item is user-
congurable, you can change the value of the eld opposite the item. You
cannot select an item that is not user-congurable.
A congurable eld is enclosed in brackets, and is highlighted when
selected. To change the value of a eld, select it then press <Enter> to
display a list of options. Refer to “2.2.7 Pop-up window.”
2.2.7 Pop-up window
Select a menu item then press <Enter> to display a pop-up window with
the conguration options for that item.
2.2.8 Scroll bar
A scroll bar appears on the right side of
a menu screen when there are items that
do not t on the screen. Press the
Up/Down arrow keys or <Page Up>
/<Page Down> keys to display the other
items on the screen.
2.2.9 General help
At the top right corner of the menu
screen is a brief description of the selected item.
Main menu items
BIOS Information
BIOS Vendor American Megatrends
Core Version 4.5.0
Project Version A0657 2.49
Build Date Dec 19 2006
Memory Information
Total Memory 256 MB (DDR2)
System Language [eng]
System Date [Sun 01/16/2005]
System Time [05:06:04]
Access Level Administrator
Choose the system default
language
On Board LAN Conguration
On Board LAN Chip [Enabled]
S5 WOL [Enabled]
ACPI Settings
CPU Conguration
IDE Conguration
USB Conguration
Super IO Conguration
Scroll bar
Pop-up window
Enable or Disable Onboard
LAN Chip.
