2-20 Chapter 2: Hardware information
2.5.8 Installing an ASUS PIKE RAID card

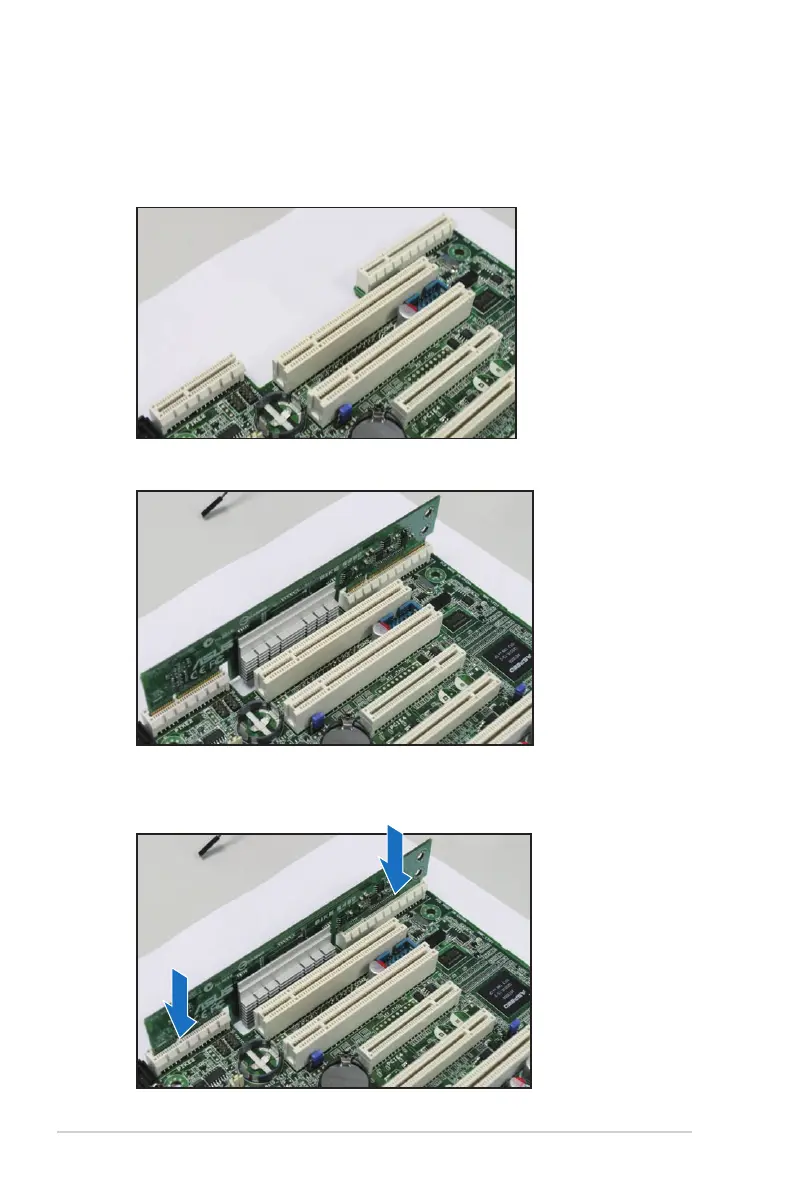

Follow the steps below to install an optional ASUS RAID card on your motherboard.
1. Locate the PIKE RAID card slot on the motherboard.
2. Align the golden ngers of the RAID card with the PIKE RAID card slot.
3. Insert the RAID card into the PIKE RAID card slot. Ensure that it is
completely seated on the PIKE RAID card slot.
