Asus P8B-E/4L User Manual

2-26 Chapter 2: Hardware information

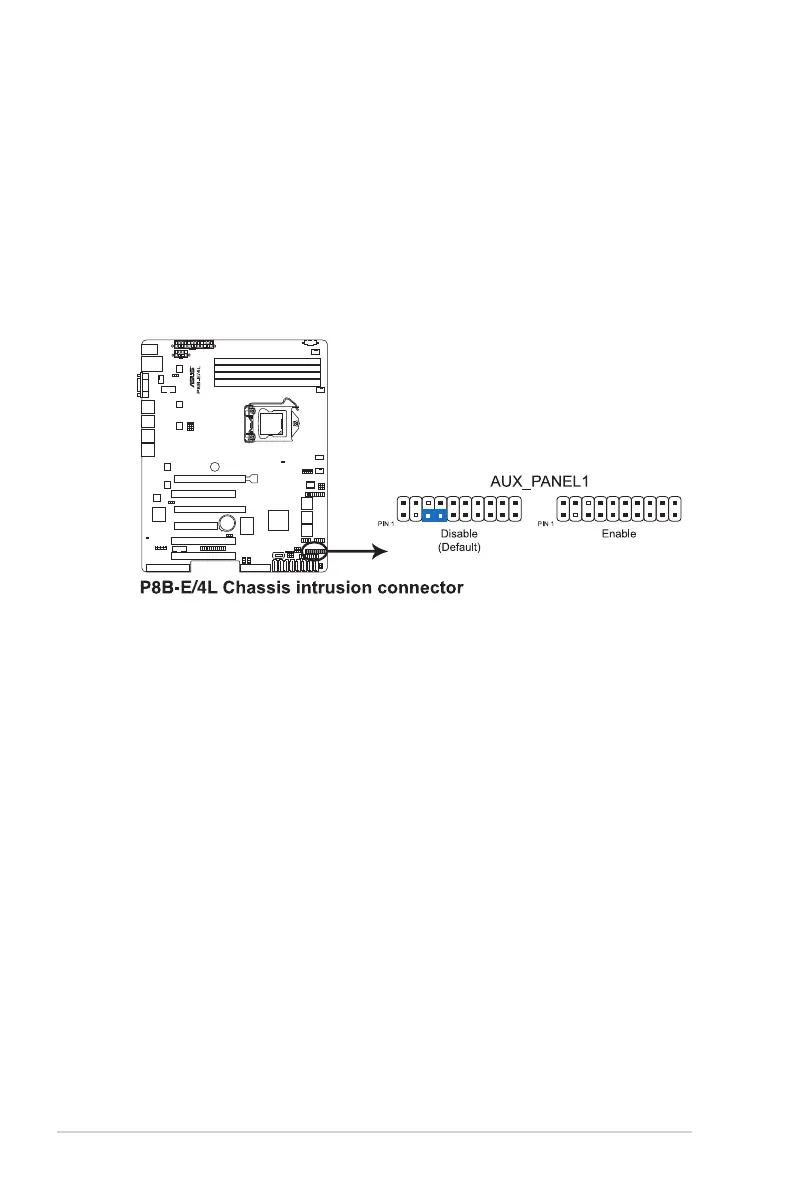

7. Chassis intrusion connector (2-pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch.
Connect one end of the chassis intrusion sensor or switch cable to this
connector. The chassis intrusion sensor or switch sends a high-level signal to
this connector when a chassis component is removed or replaced. The signal
is then generated as a chassis intrusion event.
By default , the pin labeled “Chassis Signal” and “Ground” are shorted with
a jumper cap. Remove the jumper caps only when you intend to use the
chassis intrusion detection feature.

Asus P8B-E/4L Specifications

General

Microphone in	No
Serial ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 2.0 connectors	3
Chassis intrusion connector	Yes
PCI Express slots version	2.0
Memory channels	Dual-channel
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
PCI Express slots quantity	6
Supported UDIMM module capacity	1GB, 2GB, 4GB, 8GB
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
LAN controller	Intel® 82574L
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2050
On-board graphics card memory	16 MB
Parallel processing technology support	Not supported
Certification	FCC, CFR47 15, B, CE, EN55022, EN55024, C
Component for	Server
Motherboard chipset	Intel® C204
Motherboard form factor	ATX
Cables included	SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1155 (Socket H2)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor number of cores supported	2, 4

Weight and Dimensions

Depth	304.8 mm
Width	243.8 mm
