Asus P8B-E/4L User Manual

ASUS P8B-E/4L 2-35

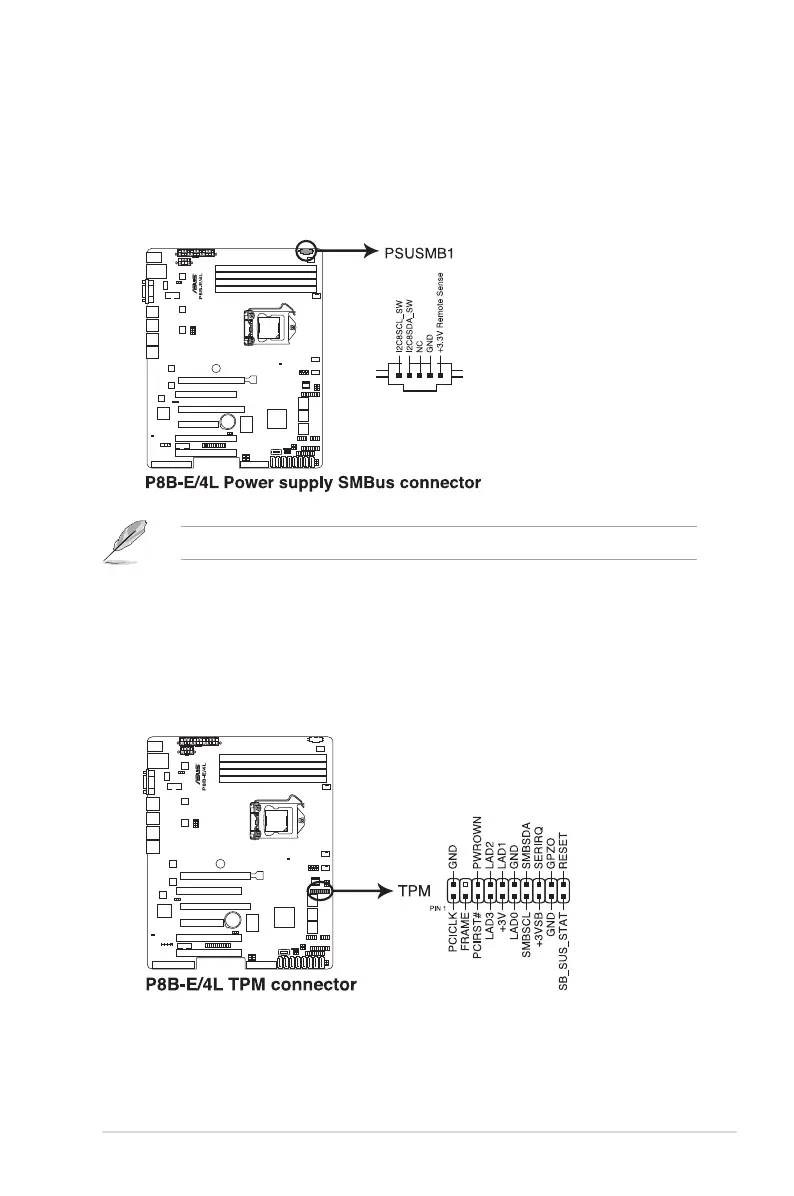

11. Power Supply SMBus connector (5-pin PSUSMB1)
This connector allows you to connect SMBus (System Management Bus) to
the power supply unit to read PSU information. Devices communicate with an
SMBus host and/or other SMBus devices using the SMBus interface.
This connector functions only when you install the ASUS ASMB5.
12. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can
securely store keys, digital certicates, passwords, and data. A TPM system
also helps enhance network security, protects digital identities, and ensures
platform integrity.

Asus P8B-E/4L Specifications

General

Microphone in	No
Serial ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 2.0 connectors	3
Chassis intrusion connector	Yes
PCI Express slots version	2.0
Memory channels	Dual-channel
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
PCI Express slots quantity	6
Supported UDIMM module capacity	1GB, 2GB, 4GB, 8GB
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
LAN controller	Intel® 82574L
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2050
On-board graphics card memory	16 MB
Parallel processing technology support	Not supported
Certification	FCC, CFR47 15, B, CE, EN55022, EN55024, C
Component for	Server
Motherboard chipset	Intel® C204
Motherboard form factor	ATX
Cables included	SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1155 (Socket H2)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor number of cores supported	2, 4

Weight and Dimensions

Depth	304.8 mm
Width	243.8 mm
