Chapter 2: BIOS information 2-15
Primary Plane Current Limit [Auto]
Maximum instantaneous current allowed at any given time for CPU cores. The value is
represented in 1/8 A (0.125A) increment. Use the <+> and <-> keys to adjust the value.
Secondary Plane Current Limit [Auto]
Maximum instantaneous current allowed at any given time for internal graphics cores. The
value is represented in 1/8 A (0.125A) increment. Use the <+> and <-> keys to adjust the
value.
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
2.5 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit
CPU Conguration Parameters

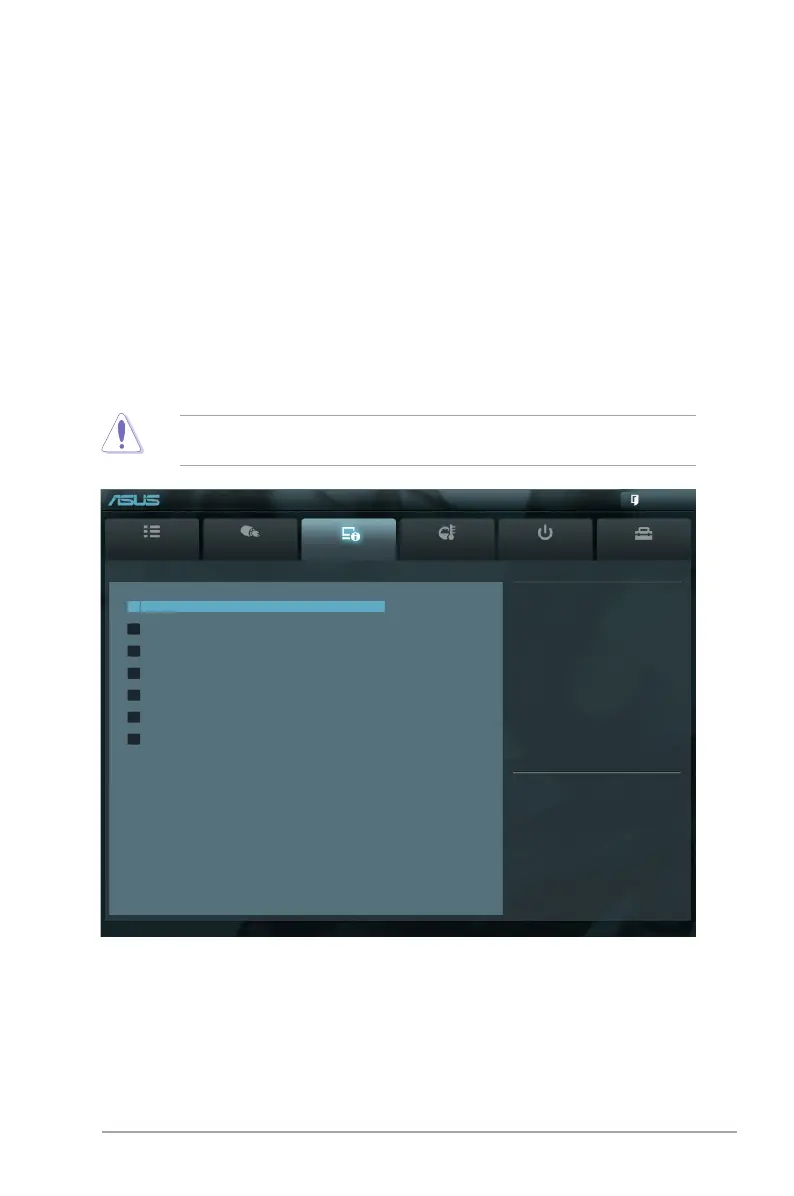

EFI BIOS Utility - Advanced Mode
Version 2.00.1201. Copyright (C) 2011 American Megatrends, Inc.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
> CPU Conguration
> System Agent Conguration
> PCH Conguration
> SATA Conguration
> USB Conguration
> Onboard Devices Conguration
> APM
