Asus P8H61-M2 USB3 User Manual

1-3Chapter 1: Product introduction

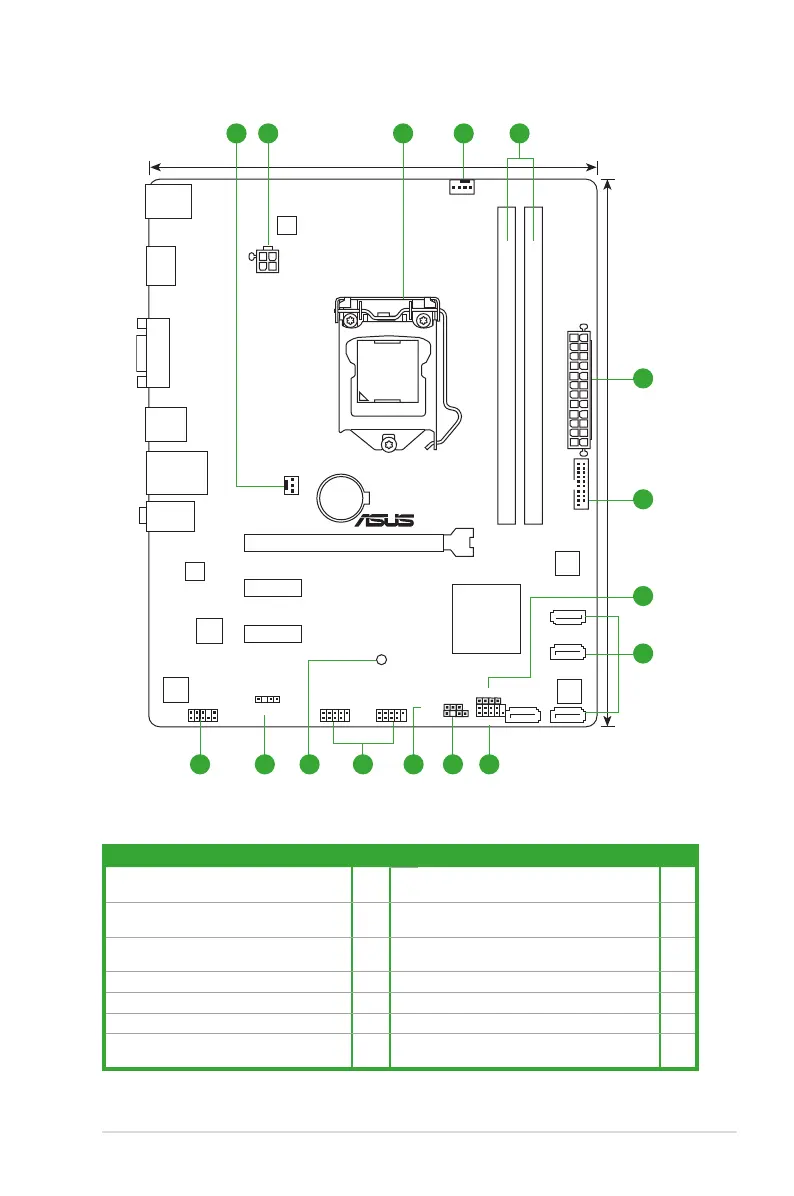

1.2.3 Motherboard layout
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
1-18 8. System panel connector (10-1 pin PANEL) 1-21
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-17 9. Chassis intrusion connector (4-1 pin CHASSIS) 1-18
3. Intel
®
LGA1155 CPU socket 1-4 10. Clear RTC RAM (3-pin CLRTC) 1-14
4. DDR3 DIMM slots 1-9 11. USB 2.0 connectors (10-1 pin USB56, USB78) 1-19
5. USB 3.0 connector (20-1 pin USB3_12) 1-19 12. Standby power LED (SB_PWR) 1-1
6. Speaker connector (4-pin SPEAKER) 1-21 13. Digital audio connector (4-1 pin SPDIF_OUT) 1-20
7. Intel
®
H61 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1/2/3/4)
1-20 14. Front panel audio connector (10-1 pin AAFP) 1-16
P8H61-M2 USB3
PCIEX16
PCIEX1_1
PCIEX1_2
USB56 USB78
F_PANEL
C
LR
T
C
C
H
A
S
S
IS
SPEA
KER
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
Lithium Cell
CMOS Power
VIA
VT1708S
RTL
8111E
EPU
32Mb
BIOS
SB_PWR
SPDIF_OUT
24.4cm(9.6in)
LGA1155
Intel
®
H61
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_4
SATA3G_2
SATA3G_1
SATA3G_3
AUDIO
KBMS
LAN_USB12
USB34
19.8cm(7.8in)
VGA
HDMI
USB3_12
Super
I/O
ASM
1042
3 121 4
7
6
5
2
89101114 13 12
