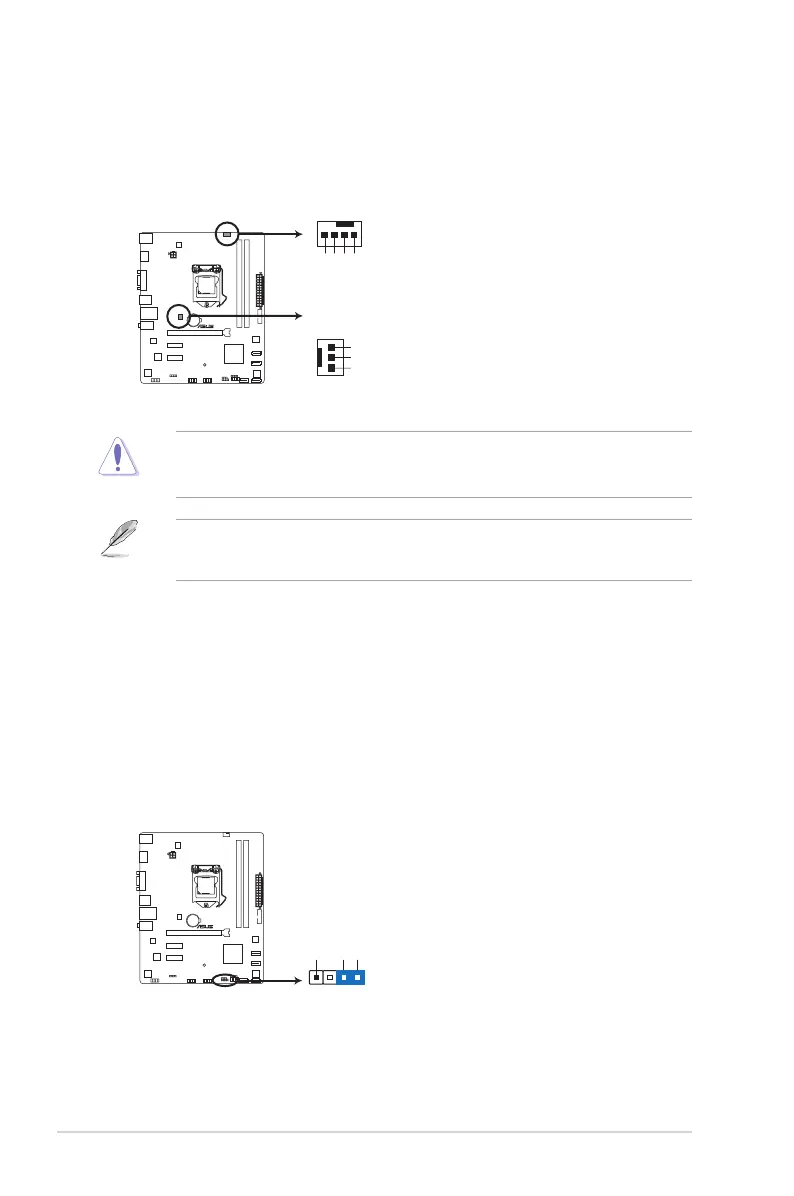

ASUS P8H61-M2 USB31-18
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
3. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
The two fan connectors support fans of maximum 2A (24 W) fan power.
Only the 4-pin CPU fan supports the ASUS Q-Fan 2 and FanXpert features.
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
GND
+12V
Rotation
P8H61-M2 USB3
P8H61-M2 USB3 fan connectors
CHA_FAN
4. Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusion sensor or switch sends a high-level signal to this connector when a chassis
component is removed or replaced. The signal is then generated as a chassis intrusion
event.
By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper
cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.
P8H61-M2 USB3
P8H61-M2 USB3 Chassis intrusion connector
+5VSB_MB
Chassis Signal
GND
CHASSIS
