ASUS P8H61-M2 USB31-12

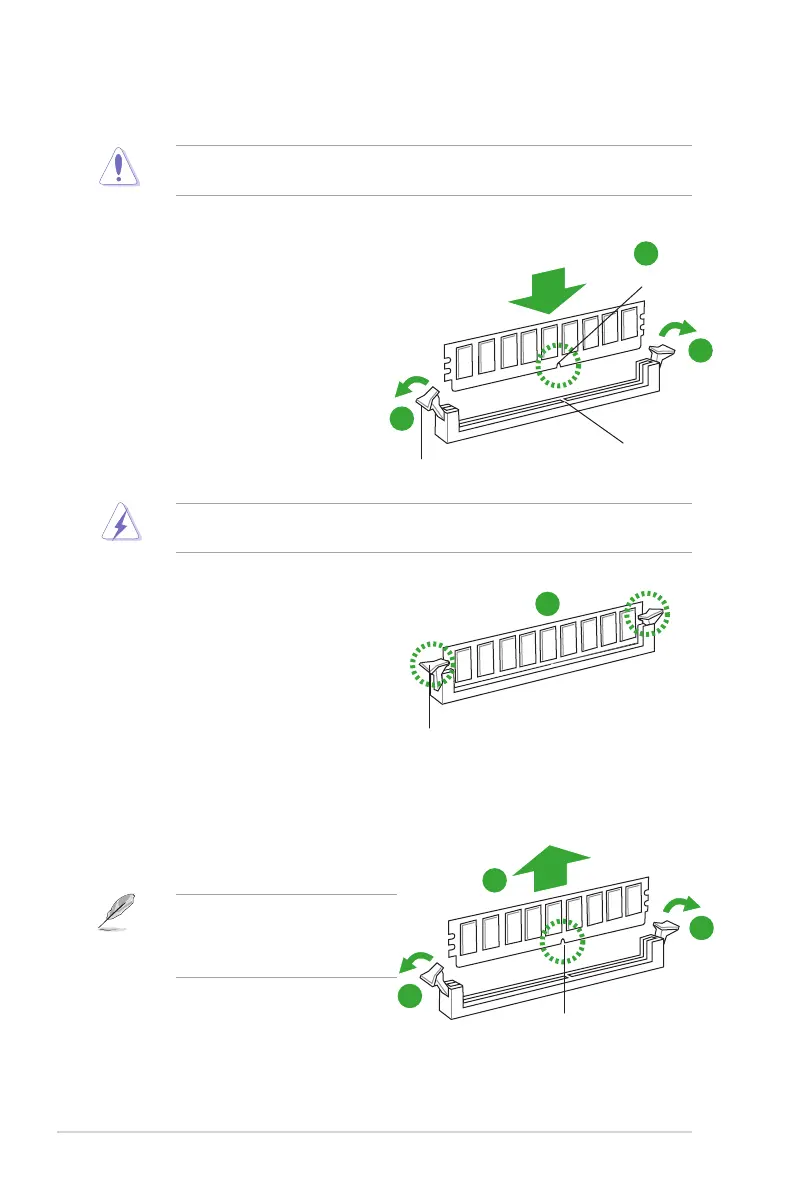

1.4.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward to
unlock a DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
Unlocked retaining clip
1
DIMM notch
2
1
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
Locked Retaining Clip
3
1.4.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with your
ngers when pressing the retaining
clips. The DIMM might get damaged
when it ips out with extra force.
DIMM notch
1
1
2
DIMM slot key

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus P8H61-M2 USB3 and is the answer not in the manual?

Asus P8H61-M2 USB3 Specifications

General IconGeneral
Form FactorMicro ATX
SocketLGA 1155
ChipsetIntel H61
Memory Slots2
Maximum Memory16 GB
Memory TypeDDR3
USB 3.0 Ports2
USB 2.0 Ports8
SATA 3Gb/s Ports4
PCI Express 3.0 x161
PCI Express x12
Audio ChipsetRealtek ALC887
LAN ChipsetRealtek 8111E
Max. LAN Speed10/100/1000 Mbps
PS/21
Onboard VideoYes
Onboard LANYes
Memory StandardDDR3 1333/1066 MHz
Dimensions (W x L)24.4 cm
Power Pin24-pin ATX
