ASUS P8P67 LX 1-10

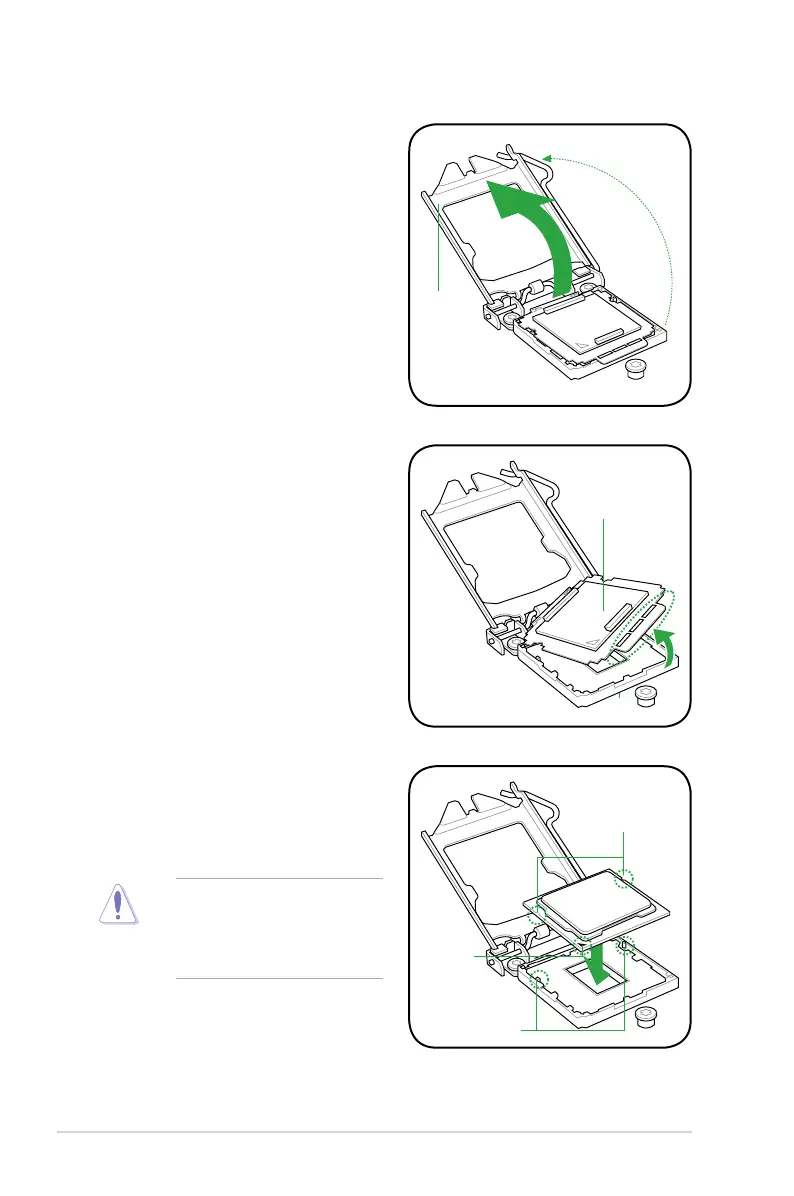

3. Lift the load lever in the direction of the
arrow until the load plate is completely
lifted.
Load plate
4. Remove the PnP cap from the CPU
socket by lifting the tab only.
The CPU ts in only one correct
orientation. DO NOT force the CPU
into the socket to prevent bending
the connectors on the socket and
damaging the CPU!
Gold
triangle
mark
Alignment keys
CPU notches
5. Position the CPU over the socket,
ensuring that the gold triangle is on the
bottom-left corner of the socket, and
then t the socket alignment keys into
the CPU notches.
PnP cap

Asus P8P67 LX Specifications

General

Chipset	Intel P67
Socket	LGA 1155
Memory Type	DDR3
Maximum Memory	32GB
Storage Interfaces	4 x SATA 3Gb/s, 2 x SATA 6Gb/s
Form Factor	ATX
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Expansion Slots	2 x PCIe 2.0 x1, 3 x PCI
LAN	Realtek 8111E Gigabit LAN
Audio	8-Channel High Definition Audio
USB Ports	12 (6 x USB 2.0, 6 x USB 3.0)
